5. Turntable hydraulic components mounting (Main valve) 00771105200800000

Каталог запасных частей к технике: Zoomlion ZT68J. Turntable hydraulic components mounting (Main valve) 00771105200800000

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано Work Platform 00771100100000000 Platform assembly 00771600100200000 Tray assembly 00771600100400000 Jib 00771100210000000 Jib 00771100210000000 Boom assembly 00771100310000000 Boom assembly 00771100310000000 Boom assembly 00771100310000000 Boom assembly 00771100310000000 Cable chain system 00771400700000000 Cable chain system 00771100720000000 Linkage 00771100610000000 Turntable assembly 00771100800000000 (with engine Perkins) Turntable assembly 00771100800000000 (with engine Perkins) Turntable assembly 00771100810000000 (with engine Deutz D447) Turntable assembly 00771100810000000 (with engine Deutz D447) Slewing mechanism 00771100900000000 Counterweight 00771101000000000 Hood 00771101100000000 Hood 00771101100000000 Hood 00771101100000000 Chassis assembly 00771102810000000 Chassis assembly 00771102810000000 Chassis assembly 00771102810000000 Chassis assembly 00771102810000000 Chassis assembly 00771102810000000 Chassis assembly 00771102810000000 Chassis assembly 00771102810000000 Exhaust system 00771107111000000 (with engine Deutz) Exhaust system 00771107121000000 (with engine Perkins) Intake system 00773407120800000 (with engine Deutz) Intake system 00771107120800000 (with engine Perkins) Cooling system 00771107110600000 (with engine Deutz) Cooling system 00771107120600000 (with engine Perkins) Fuel system 00771107110400000 (with engine Deutz) Fuel system 00771107120400000 (with engine Perkins) Engine 00771107110200000 (with engine Deutz) Engine 00771107120200000 (with engine Perkins) Frame hydraulic installation (front motor) 00771105200600000 Frame hydraulic installation (rear motor) 00771105200600000 Frame hydraulic installation (return oil block) 00771105200600000 Frame hydraulic installation (travel splite-flow valve)00771105200600000 Frame hydraulic installation (steering cylinder) 00771105200600000 Frame hydraulic installation (float cylinder) 00771105200600000 Turntable hydraulic components mounting (pump)00771105200800000 Turntable hydraulic components mounting (re-fill filter) 00771105200800000 Turntable hydraulic components mounting (High pressure filter) 00771105200800000 Turntable hydraulic components mounting (Auxiliary pump) 00771105200800000 Turntable hydraulic components mounting (Main valve) 00771105200800000 Turntable hydraulic components mounting (travel control valve) 00771105200800000 Platform hydraulic components mounting (jib valve) 00771105201000000 Platform hydraulic components mounting (rotary actuator) 00771105201000000 Center swivel joint installation 00771105201200000 Balance valve mounting (lifting balance valve) 00771105201400000 Balance valve mounting (telescopic balance valve) 00771105201400000 Balance valve mounting (swing balance valve) 00771105201400000 Balance valve mounting (jib balance valve) 00771105201400000 Balance valve mounting (leveling balance valve) 00771105201400000 Hydraulic oil tank 00771105201600000 Turntable cables 00771106210410000 (with engine Perkins) Terminal component Turntable cables 00771106210410000(with engine Perkins) connector Turntable cables 00771106200410000(with engine Deutz D435) Terminal components Turntable cables 00771106210410000пј€with engine Deutz D435пј‰connector ECU cables00771106210420000(with engine Perkins)Terminal components ECU cables00771106210420000 (with engine Perkins) connector ECU cables00771106200420000 (with engine Deutz D435) Terminal components ECU cables00771106200420000 (with engine Deutz D435) connector Boom cables 00771106200430000 Terminal components Boom cables 00771106200430000 connector Platform cables 00771106200440000 Terminal components. Cable restructuring 00771106200610000 Terminal components Platform cables 00771106200440000 connector. Cable restructuring 00771106200610000 connector Power line 00771106210450000 (with engine Perkins) Terminal components Power line 00771106200450000 with engine Deutz D435 Terminal components Label assembly 00771107000000000 Label assembly 00771107000000000 Label assembly 00771107000000000

1

2

3

4

5

6

7

8

9

10

11

12

13

14

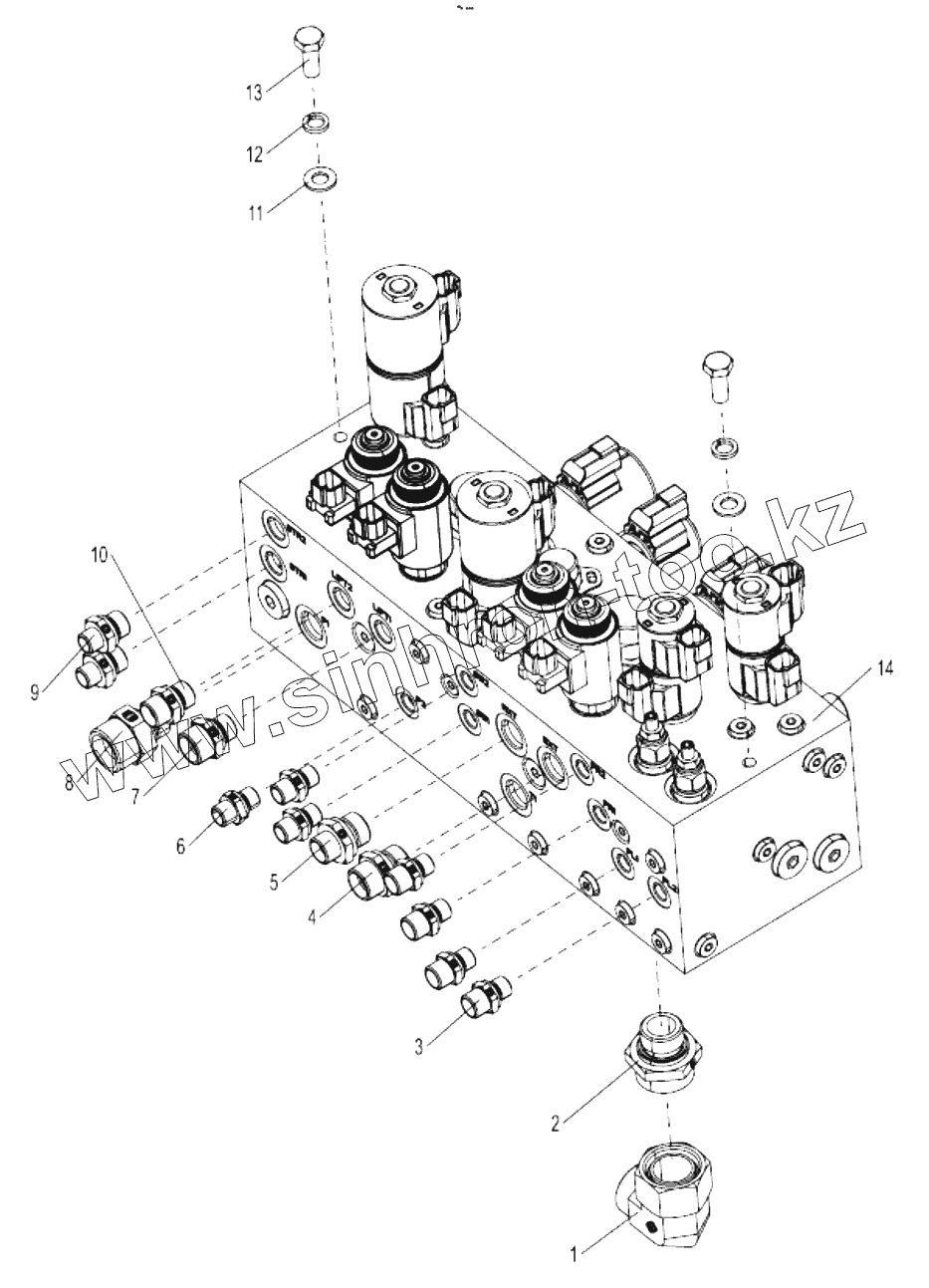

Позиция на иллюстрации	Заводской номер детали		Название детали
1	1140101737		Right angle built-up joint
2	1140102940		End straight coupling
3	1140101461		End straight coupling
4	1140101464		End straight coupling
5	1140101463		End straight coupling
6	1140111237		End straight coupling
7	1140101465		End straight coupling
8	1140102939		End straight coupling
9	1140108469		End straight coupling
10	1140101462		End straight coupling
11	1040302489		Flat washer A class 10-200HV
12	1040301502		Seal ring
13	1040002434		Bolt
14	1010306165		Main valve

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
