Каталог запасных частей к технике: Zoomlion ZT68J. Jib 00771100210000000
1
1
1
2
2
2
2
3
3
3
4
5
5
6
7
7
8
8
9
9
10
11
12
13
13
14
14
15
16
16
17
17
18
18
19
19
20
20
21
21
21
21
22
23
23
24
24
25
25

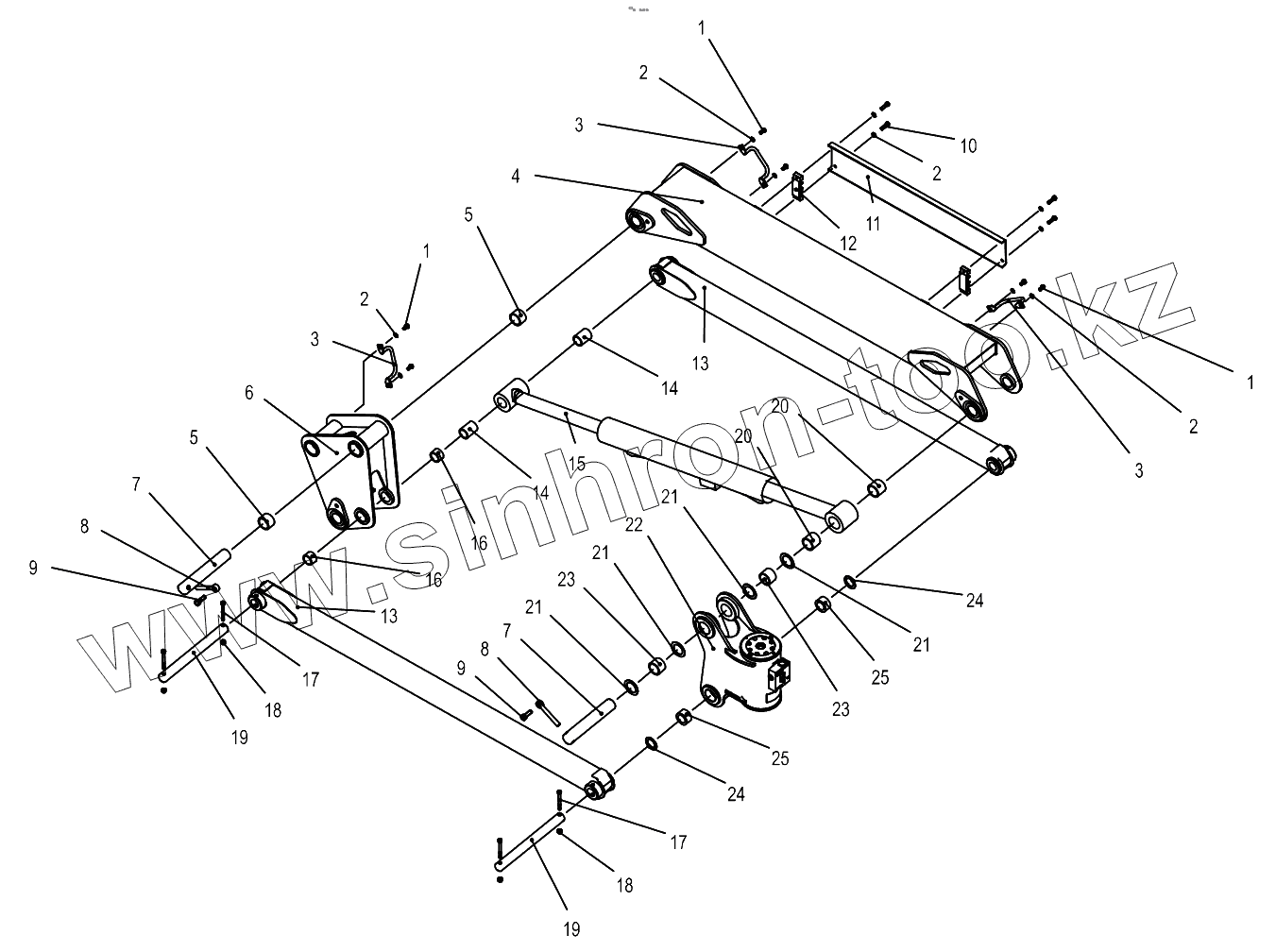

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1040004590 | Hexagon bolt M8x14-8.8 | |
| 2 | 1040301515 | Flat washer A class 8-200HV | |
| 3 | 00771400211200000 | Adjustable pipe clip | |
| 4 | 00771100210200000 | Upper linkage | |
| 5 | 00771400200001130 | Non-lubricated bearing | |
| 6 | 00771100200600000 | Support | |
| 7 | 00771100210001010 | Upper linkage pin | |
| 8 | 00773400200001070 | Stop pin | |
| 9 | 1040002437 | Hexagon bolt M12x35-8.8 | |
| 10 | 1040004520 | Hexagon bolt M8x30-8.8 | |
| 11 | 00771100210001100 | Pipeline guard board | |
| 12 | 00771100210001090 | Pipe sleeve | |
| 13 | 00771100210400000 | Lower linkage | |
| 14 | 00771100200001080 | Non-lubricated bearing | |
| 15 | 00771100200600000 | Jib lifting cylinder | |
| 16 | 00771100210001040 | Non-lubricated bearing | |
| 17 | 1040103116 | Hexagon socket head cap screws M8x75-10.9 | |
| 18 | 1040200503 | Hexagon lock nut with non-metallic insert M8-8 | |
| 19 | 00771100210001020 | Lower linkage pin | |
| 20 | 00771100200001070 | Non-lubricated bearing | |
| 21 | 00771100210001070 | Spacer I | |
| 22 | 1010201535 | Rotary actuator | |
| 23 | 00771100210001050 | Non-lubricated bearing | |
| 24 | 00771100210001080 | Spacer II | |
| 25 | 00771100210001060 | Non-lubricated bearing |
