Chassis assembly 00771102810000000
Каталог запасных частей к технике: Zoomlion ZT68J. Chassis assembly 00771102810000000
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
33X-4Z
47X-5RZ
K56X-6RZ
PL2304 (2021)
QUY260CR-32Y
QY55V53232Z
RN (90-110 л.с.)
RS (2021)
RT-100 (2013)
RT-35 (2013)
RT-55 (2013)
RT-551 (4x4) (2013)
RT-75 (2013)
ZCC1100H (2014)
ZD160T(S,SH, CS)-3 (2012)
ZE205E (2013)
ZLJ5480JQZV3 (2013)
ZLJ5500V3 (2013)
ZLJ5550JQZV3.2 (2016)
ZT20J (2019)
ZT68J (2019)
Схема
>
Не выбрано
Work Platform 00771100100000000
Platform assembly 00771600100200000
Tray assembly 00771600100400000
Jib 00771100210000000
Jib 00771100210000000
Boom assembly 00771100310000000
Boom assembly 00771100310000000
Boom assembly 00771100310000000
Boom assembly 00771100310000000
Cable chain system 00771400700000000
Cable chain system 00771100720000000
Linkage 00771100610000000
Turntable assembly 00771100800000000 (with engine Perkins)
Turntable assembly 00771100800000000 (with engine Perkins)
Turntable assembly 00771100810000000 (with engine Deutz D447)
Turntable assembly 00771100810000000 (with engine Deutz D447)
Slewing mechanism 00771100900000000
Counterweight 00771101000000000
Hood 00771101100000000
Hood 00771101100000000
Hood 00771101100000000
Chassis assembly 00771102810000000
Chassis assembly 00771102810000000
Chassis assembly 00771102810000000
Chassis assembly 00771102810000000
Chassis assembly 00771102810000000
Chassis assembly 00771102810000000
Chassis assembly 00771102810000000
Exhaust system 00771107111000000 (with engine Deutz)
Exhaust system 00771107121000000 (with engine Perkins)
Intake system 00773407120800000 (with engine Deutz)
Intake system 00771107120800000 (with engine Perkins)
Cooling system 00771107110600000 (with engine Deutz)
Cooling system 00771107120600000 (with engine Perkins)
Fuel system 00771107110400000 (with engine Deutz)
Fuel system 00771107120400000 (with engine Perkins)
Engine 00771107110200000 (with engine Deutz)
Engine 00771107120200000 (with engine Perkins)
Frame hydraulic installation (front motor) 00771105200600000
Frame hydraulic installation (rear motor) 00771105200600000
Frame hydraulic installation (return oil block) 00771105200600000
Frame hydraulic installation (travel splite-flow valve)00771105200600000
Frame hydraulic installation (steering cylinder) 00771105200600000
Frame hydraulic installation (float cylinder) 00771105200600000
Turntable hydraulic components mounting (pump)00771105200800000
Turntable hydraulic components mounting (re-fill filter) 00771105200800000
Turntable hydraulic components mounting (High pressure filter) 00771105200800000
Turntable hydraulic components mounting (Auxiliary pump) 00771105200800000
Turntable hydraulic components mounting (Main valve) 00771105200800000
Turntable hydraulic components mounting (travel control valve) 00771105200800000
Platform hydraulic components mounting (jib valve) 00771105201000000
Platform hydraulic components mounting (rotary actuator) 00771105201000000
Center swivel joint installation 00771105201200000
Balance valve mounting (lifting balance valve) 00771105201400000
Balance valve mounting (telescopic balance valve) 00771105201400000
Balance valve mounting (swing balance valve) 00771105201400000
Balance valve mounting (jib balance valve) 00771105201400000
Balance valve mounting (leveling balance valve) 00771105201400000
Hydraulic oil tank 00771105201600000
Turntable cables 00771106210410000 (with engine Perkins) Terminal component
Turntable cables 00771106210410000(with engine Perkins) connector
Turntable cables 00771106200410000(with engine Deutz D435) Terminal components
Turntable cables 00771106210410000пј€with engine Deutz D435пј‰connector
ECU cables00771106210420000(with engine Perkins)Terminal components
ECU cables00771106210420000 (with engine Perkins) connector
ECU cables00771106200420000 (with engine Deutz D435) Terminal components
ECU cables00771106200420000 (with engine Deutz D435) connector
Boom cables 00771106200430000 Terminal components
Boom cables 00771106200430000 connector
Platform cables 00771106200440000 Terminal components. Cable restructuring 00771106200610000 Terminal components
Platform cables 00771106200440000 connector. Cable restructuring 00771106200610000 connector
Power line 00771106210450000 (with engine Perkins) Terminal components
Power line 00771106200450000 with engine Deutz D435 Terminal components
Label assembly 00771107000000000
Label assembly 00771107000000000
Label assembly 00771107000000000
1
1
2
2
3
3
4
4
5
5
6
6
7
7

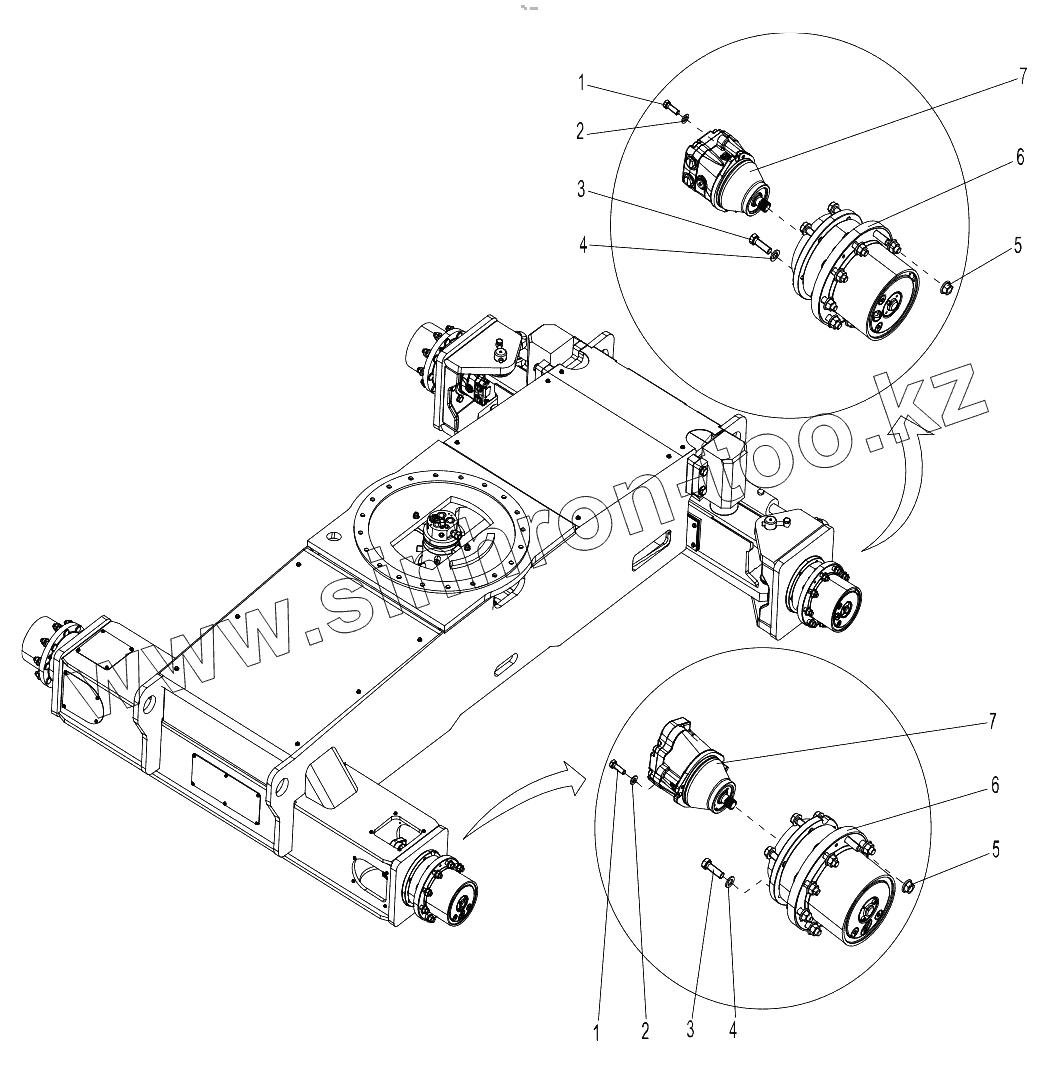

Позиция на иллюстрации
Заводской номер детали
Название детали
1
1040004029
Bolt M12x35-10.9
2
1040302490
Flat washer A class 12-200HV
3
1040101980
Screw M16x50-10.9
4
1040302492
Washer 16-200HV
5
1040201879
Hexagon nut with flange M16x1.5-10
6
1030202175
Reducer
7
1010100907
Travel motor
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
