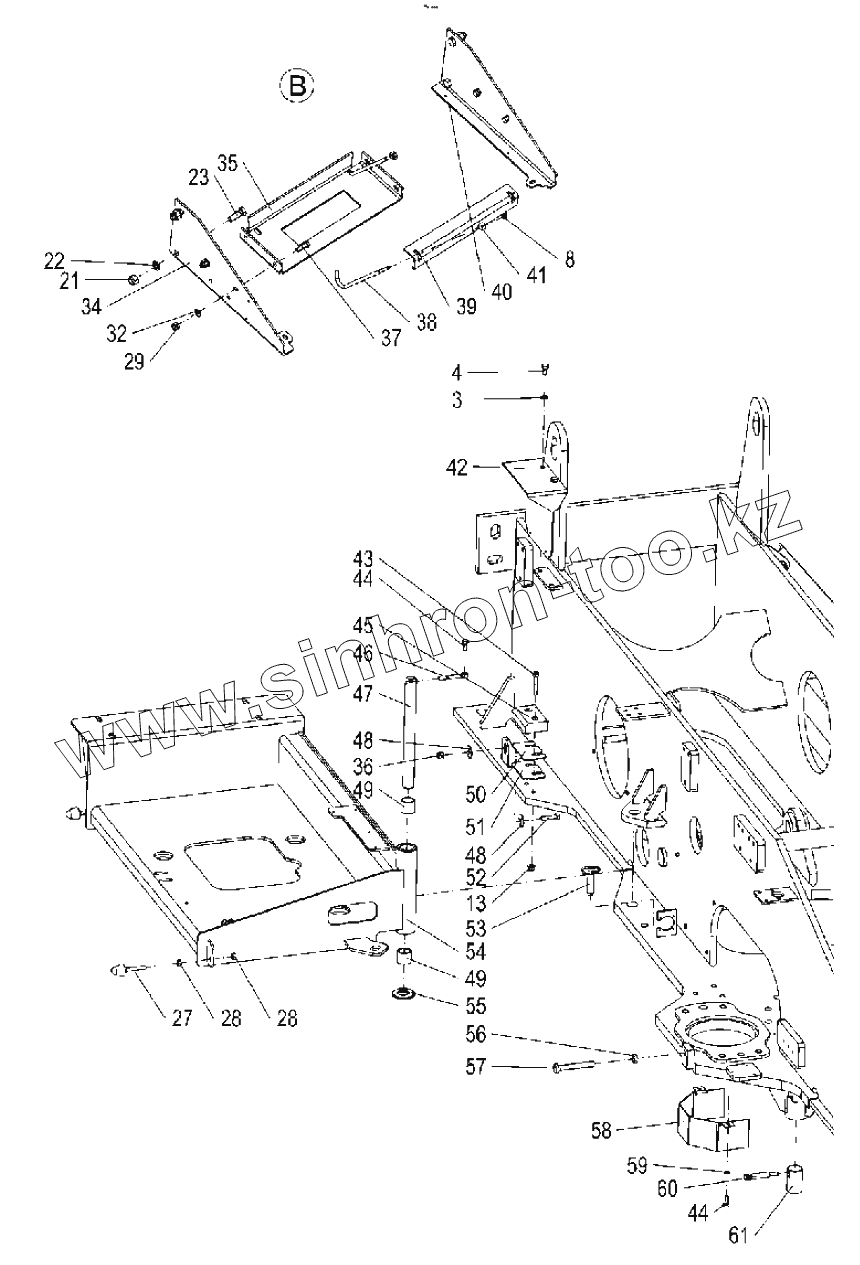

  5. Turntable assembly 00771100810000000 (with engine Deutz D447)

Каталог запасных частей к технике: Zoomlion ZT20J. Turntable assembly 00771100810000000 (with engine Deutz D447)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
3
4
8
13
21
22
23
27
28
28
29
32
34
35
37
38
39
40
41
42
43
44
44
45
46
47
48
48
49
49
50
51
52
53
54
55
56
57
58
59
60
61
Позиция на иллюстрации Заводской номер детали Название детали
1 00771400301601020 Non-lubricated bearing
2 00771100800001100 Linkage clearance adjusting plate
3 1040301503 Washer
4 1040005846 Bolt M12x20-8.8
5 1040004519 Hexagon bolt M8x25-8.8
6 00771100800001090 Swinging angle switch support
7 1040301515 Flat washer A class 8-200HV
8 1040200503 Hexagon lock nut with non-metallic insert M8-8
9 00771100801400000 Swivel joint bracket
10 1040101493 Screw M10x55-8.8
11 00771100800001010 Boom bumper block
12 00771100800200000 Turntable welds
13 1040201523 Lock nut M10-10
14 1040001640 Bolt M6x25-A2-70
15 00771400800001120 Electrical switch support
16 1040300771 Flat washer A class 6-A2
17 1040201896 Nut M6-8
18 00771100800001050 Pin
19 00773400400001250 Stop pin
20 1040004570 Bolt M16x30-8.8
21 1040200161 Nut
22 1040302492 Washer 16-200HV
23 1040002447 Bolt M16x45-8.8
24 00771100800801010 Support I
25 00771100800810000 Right side support welds
26 00771100800801070 Electrical cabinet support II
27 1040004678 Door stop bolt M10x70
28 1040200113 Nut
29 1040200507 Nut
30 00771100800801060 Electrical cabinet Support I
31 00771100800801030 Support II
32 1040302490 Flat washer A class 12-200HV
33 1040002439 Болт M12x40-8.8
34 00771100800401020 Main valve support II
35 00771100800401040 Battery support II
37 1040002437 Hexagon bolt M12x35-8.8
38 00771100800401050 Battery mounting rod
39 00771100800401030 Battery support I
40 00771100800401010 Main valve support I
41 1040302480 Washer8-200HV
42 00771100802000000 ECU water-proof cover
43 1040103120 Screw M10x60-8.8
44 1040002434 Bolt
45 00771100800001020 Tray bumper block
46 00773400300001200 Stop pin10
47 00771100800001110 Tray axle 32
48 1040301031 Washer12-300HV
49 00773400800001010 Bearing
50 00771100800001140 Tray washer II
51 00771100800001130 Tray washer I
52 1040004608 Bolt M12x45-8.8
53 00773400801400000 Tray plug pin
54 00771100801600000 Engine support
55 00773400800001150 Friction plate
56 1040201882 Nut M16
57 1040004615 Bolt M16x110-10.9
58 00771100800001030 Gear cover
59 1040301502 Seal ring
60 1040100714 Screw
61 00771100800001080 Lock pin
