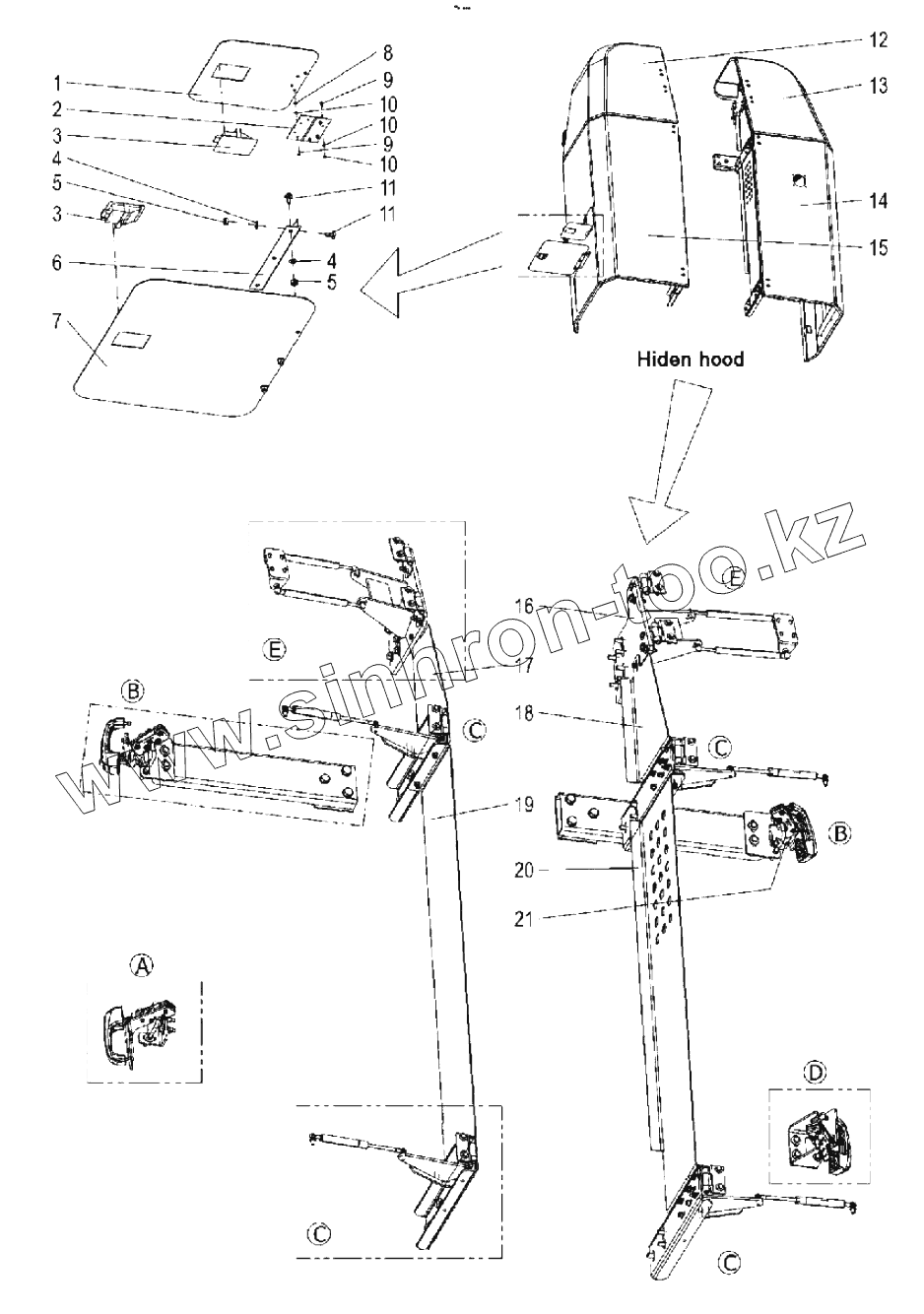

Каталог запасных частей к технике: Zoomlion ZT20J. Hood 00771101100000000
1
2
3
3
4
4
5
5
6
7
8
9
9
10
10
10
11
11
12
13
14
15
16
17
18
19
20
21
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00771101103201010 | Plate | |
| 2 | 199905631 | Hinge | |
| 3 | 1109800044 | Tongue type lock | |
| 4 | 1040301515 | Flat washer A class 8-200HV | |
| 5 | 1040201089 | Hexagon nut M8-8 | |
| 6 | 1101000152 | Hinge | |
| 7 | 00771101103001010 | Door plate | |
| 8 | 1040201772 | Nut M4-A2-70 | |
| 9 | 1040302410 | Washer 4-200HV | |
| 10 | 1040103120 | Screw M10x60-8.8 | |
| 11 | 1040103122 | Screw M8x16-4.8 | |
| 12 | 00771101100800000 | Rear-right hood welds | |
| 13 | 00771101100600000 | Rear-left hood welds | |
| 14 | 00771101100400000 | Front-left hood welds | |
| 15 | 00771101100200000 | Front-right hood welds | |
| 16 | 00771101101200000 | Rear-left hood support | |
| 17 | 00771101100001010 | Right side close plate I | |
| 18 | 00771101100001110 | Left side close plate I | |
| 19 | 00771101100001100 | Right side close plate II | |
| 20 | 00771101100001030 | Left side close plate II | |
| 21 | 00771101100001080 | Key cylinder mounting plate | |
| 22 | 1109900765 | Door lock | |
| 23 | 1100700163 | Door knob | |
| 24 | 00771101100001050 | Key cylinder mounting plate | |
| 25 | 1040302512 | Washer10-200HV | |
| 26 | 1040002463 | Bolt M10x40-8.8 | |
| 27 | 1040300771 | Flat washer A class 6-A2 | |
| 28 | 1040004517 | Bolt M8x16-8.8 | |
| 29 | 1040100105 | Screw | |
| 30 | 1040200113 | Nut | |
| 31 | 00771101101801010 | Round steel | |
| 32 | 00771101101801020 | Plate | |
| 33 | 1040200504 | Nut M10-8 | |
| 34 | 1040302489 | Flat washer A class 10-200HV | |
| 35 | 1040201875 | Nut M10-8 | |
| 36 | 1109900766 | Door lock | |
| 37 | 00771101100001020 | Key cylinder mounting plate | |
| 38 | 1040004678 | Door stop bolt M10x70 | |
| 39 | 00771101102001020 | Round steel | |
| 40 | 1040002435 | Bolt M10x35-8.8 | |
| 41 | 00771101102001010 | Right rear lock seat plate | |
| 42 | 1040002450 | Bolt M16x80-8.8 | |
| 43 | 1040302492 | Washer 16-200HV | |
| 44 | 00771101102800000 | Rear lock seat support | |
| 45 | 1040301502 | Seal ring | |
| 46 | 1110100317 | Gas spring | |
| 47 | 00771101102400000 | Front gas spring support | |
| 48 | 1040004520 | Hexagon bolt M8x30-8.8 | |
| 49 | 1040004511 | Bolt M12x30-8.8 | |
| 50 | 1040301503 | Washer | |
| 51 | 1040301031 | Washer12-300HV | |
| 52 | 1040302480 | Washer8-200HV | |
| 53 | 1101000089 | Hinge | |
| 54 | 1040200503 | Hexagon lock nut with non-metallic insert M8-8 | |
| 55 | 1040004519 | Hexagon bolt M8x25-8.8 | |
| 56 | 00771101100001040 | Front hood support | |
| 57 | 00771101101601010 | Lock seat plate | |
| 58 | 00771101101601020 | Round steel | |
| 59 | 00771101102600000 | Rear gas spring support | |
| 60 | 1040301510 | Washer | |
| 61 | 1110100301 | Gas spring | |
| 62 | 1040004518 | Bolt M8x20-8.8 | |
| 63 | 00771101101000000 | Right rear hood Support | |
| 64 | 1040302490 | Flat washer A class 12-200HV | |
| 65 | 1040002439 | Болт M12x40-8.8 | |
| 66 | 1040004619 | Hexagon bolt M8x35-8.8 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
