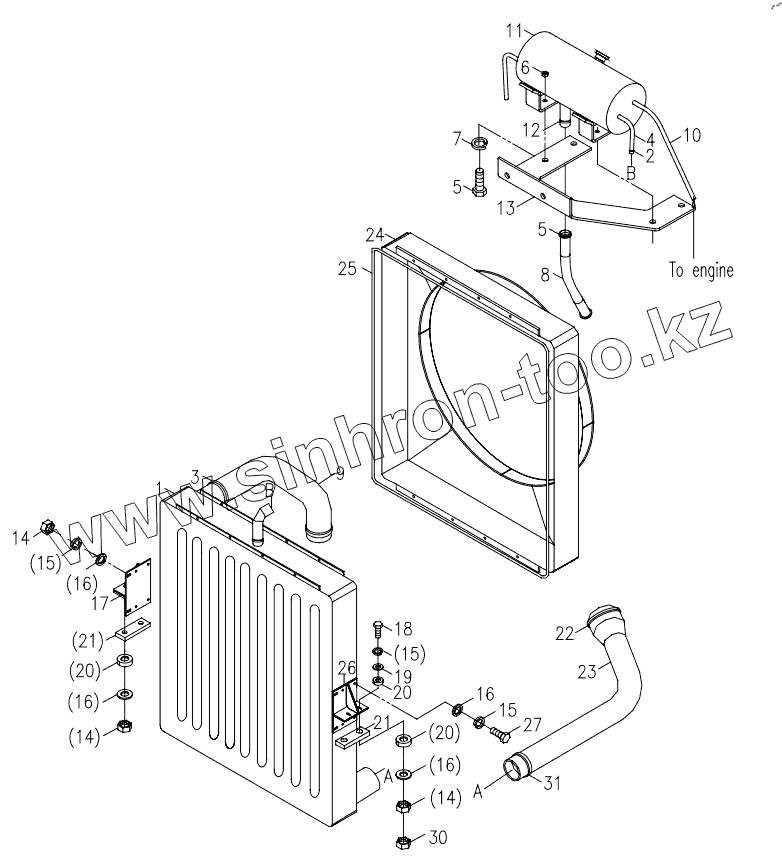

Каталог запасных частей к технике: Zoomlion ZLJ5550JQZV3.2. COOLING SYSTEM D00671831300000000Y
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
14
14
15
15
15
16
16
16
16
17
18
19
20
20
20
21
21
22
23
24
25
26
27
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1990200006 | 1990200006 | Nylon strap | |
| 202270028 | 202270028 | 5 in 1 environment-friendly antifreeze | |
| 1 | 1000300019 | Radiator assy | |
| 2 | 1990200517 | Worm clamp | |
| 3 | 1990200579 | T-clamp(no spring) | |
| 4 | 00671821300001030 | Water tank hose | |
| 5 | 1040000114 | Bolt | |
| 6 | 1040200113 | Nut | |
| 7 | 1040300067 | Washer | |
| 8 | 00677201300001021 | Water pipe | |
| 9 | 00671821300001020 | Water inlet pipe for water tank | |
| 10 | 00671821300001050 | Water tank hose | |
| 11 | 1000300006 | Expansion water tank | |
| 12 | 1990200548 | Worm clamp | |
| 13 | 00677201300001090 | Bracket | |
| 14 | 1040200192 | Nut | |
| 15 | 1040300063 | Washer | |
| 16 | 1040300066 | Washer | |
| 17 | 00671821300400000 | Right bracket | |
| 18 | 1040000104 | Bolt | |
| 19 | 00671801300001050 | Washer | |
| 20 | 00671821300001070 | Washer | |
| 21 | 00671821300001060 | Pad | |
| 22 | 1990200546 | T-type clamp | |
| 23 | 00671821300001010 | Water outlet pipe for water tank | |
| 24 | 00671821300200000 | Aerodynamic deflector assy | |
| 25 | 1990300007 | Rubber sealing strip | |
| 26 | 00671821300600000 | Left bracket | |
| 27 | 1040000267 | Bolt | |
| 30 | 1040200106 | Nut | |
| 31 | 1990200547 | T Band without spring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
