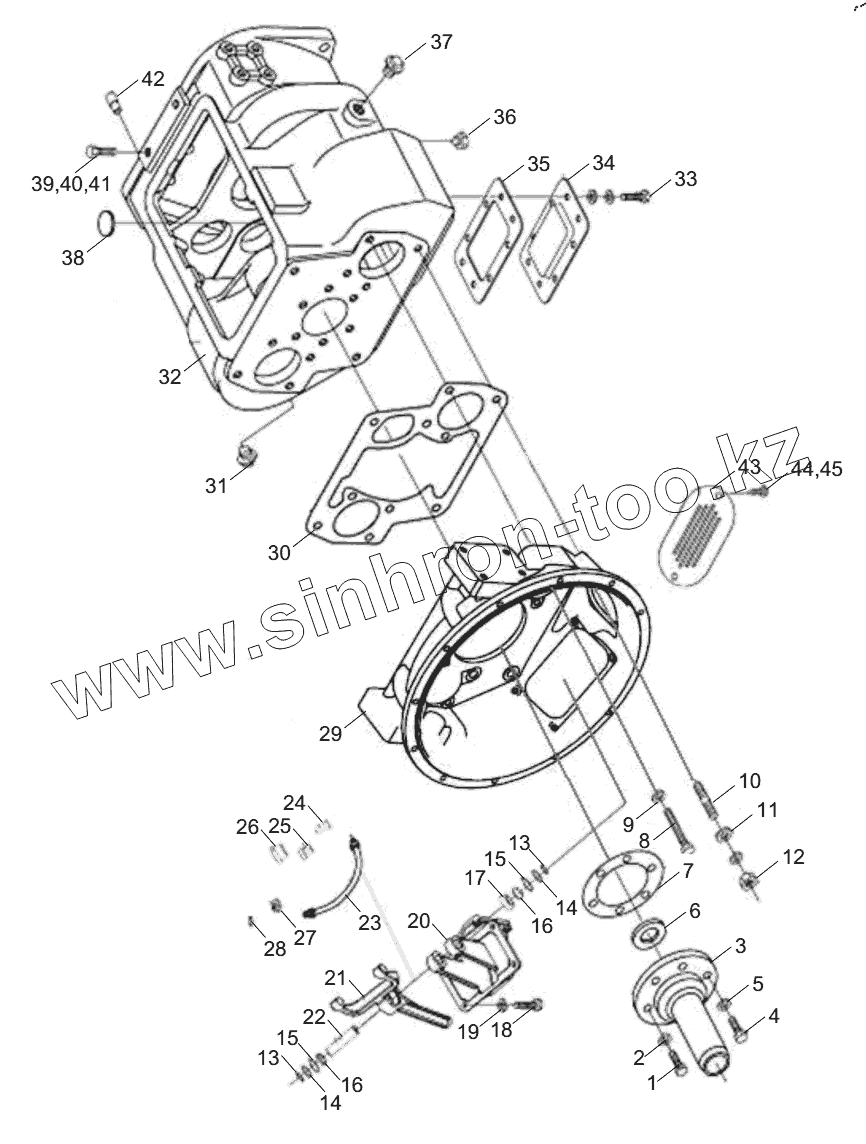

  5. TRANSMISSION (CLUTCH AND TRANSMISSION SHELL ASSY) D1030300100_101250Y

Каталог запасных частей к технике: Zoomlion ZLJ5500V3. TRANSMISSION (CLUTCH AND TRANSMISSION SHELL ASSY) D1030300100_101250Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
Позиция на иллюстрации Заводской номер детали Название детали
1030300100 1030300100 Transmission
1 Hex bolt Hex bolt
2 Springwasher Spring washer
3 1039803857 Bearing cover
4 Hex bolt Hex bolt
5 Springwasher Spring washer
6 1039801337 Skeleton oil seal assy
7 Pad Pad
8 Hex bolt Hex bolt
9 Springwasher Spring washer
10 double-ended bolt Double-ended bolt
11 Seal ring Seal ring
12 1040201397 Hex locking nut
13 Circlip for shaft Circlip for shaft
14 dust cover Dust cover
15 Circlipretaining ring Circlipretaining ring
16 yoke spindle sleeve Yoke spindle sleeve
17 1050000399 Knuckle bearing
18 Hex bolt Hex bolt
19 Springwasher Spring washer
20 1039803858 Release yoke bracket
21 1030500013 Release fork
22 1039803859 Release yoke spindle
23 1039803860 Lubricating pipe assy, release bearing
24 1039803861 Pipe fitting
25 1039803862 Lubricating grease cup seat
26 1039803863 Lubricating grease cup cover
27 Springwasher Spring washer
28 Seal ring Seal ring
29 1039803864 Clutch housing assy
30 Clutch housing gasket Clutch housing gasket
31 Threaded plug Threaded plug
32 Transmission housing Transmission housing
33 Hex bolt Hex bolt
34 1039800803 Cover
35 Pad Pad
36 Threaded plug Threaded plug
37 Threaded plug Threaded plug
38 round magnet Round magnet
39 double-ended bolt Double-ended bolt
40 Springwasher Spring washer
41 1040201398 Hex nut
42 Positioning pin Positioning pin
43 1039803865 Cover
44 Hex bolt Hex bolt
45 Springwasher Spring washer
