Каталог запасных частей к технике: Zoomlion ZLJ5500V3. STEERING HYDRAULIC SYSTEM D00672303400400001Y
1
1
2
3
4
5
6
7
8
12
12
13
13
14
15
16
16
16
17
17
18
19
19
20
20
20
21
21
22
22
22
23
23
23
23
23
23
23
23
24
24
24
24
25
25
26
26
26
26
26
26
27
27
28
28
28
29
30
30
30
30
30
30
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
54
54
54
54
54
55
56
57
58
59
60
61
62
63

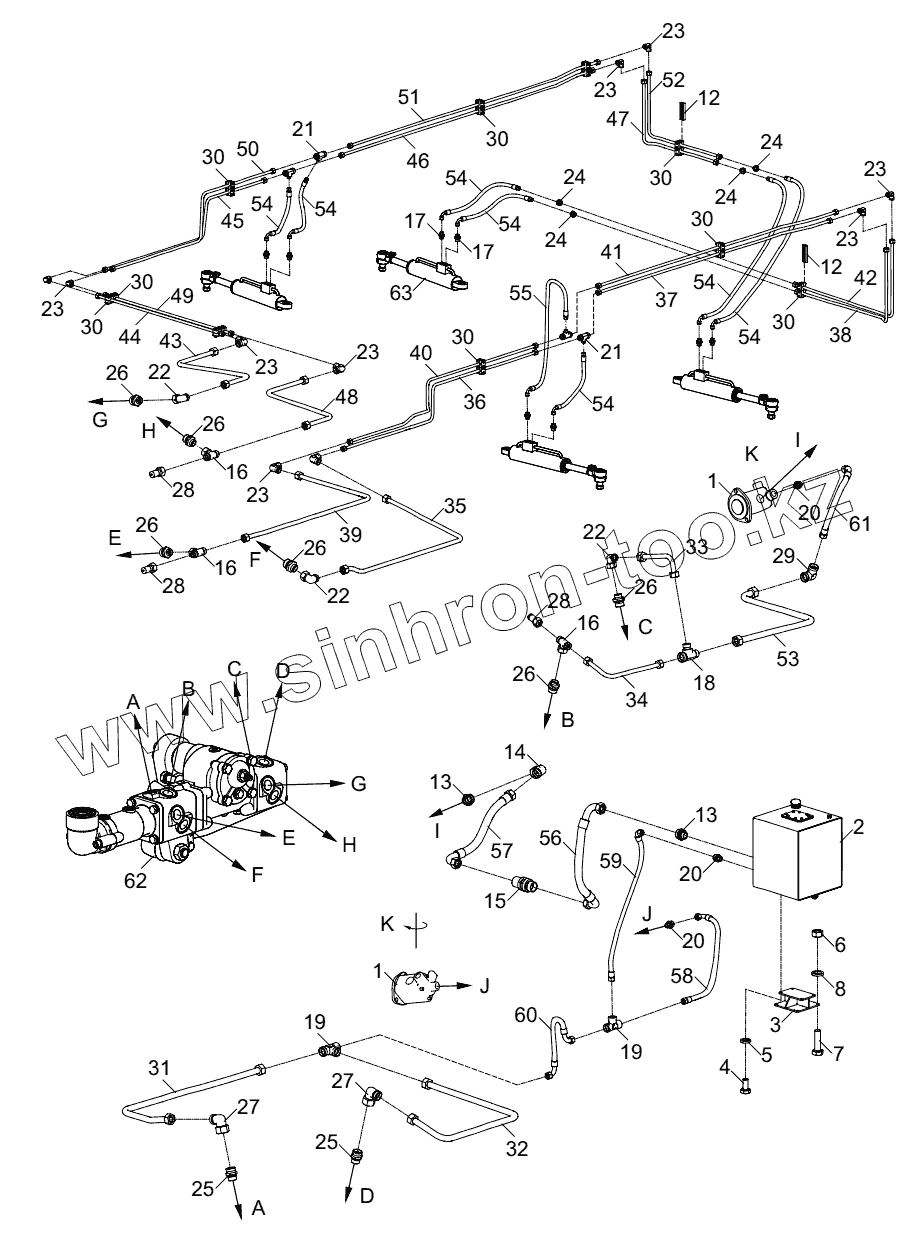

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00672303400400001 | 00672303400400001 | Steering hydraulic system | |
| 1 | 1032300111 | Steering pump py25003(with three oil ports of outer circulation | |
| 2 | 00672303400410001 | Oil steering reservoir | |
| 3 | 00670403410410000 | Oil tank bracket | |
| 4 | 1040000098 | Bolt | |
| 5 | 1040300063 | Washer | |
| 6 | 1040200113 | Nut | |
| 7 | 1040000122 | Bolt | |
| 8 | 1040300067 | Washer | |
| 9 | 204060002 | Hydraulic oil | |
| 10 | 204060003 | Hydraulic oil | |
| 11 | 1990200008 | Nylon strap | |
| 12 | 1990200253 | Slide | |
| 13 | 1140102513 | Pipe fitting | |
| 14 | 1140102653 | Fitting | |
| 15 | 1140102583 | Pipe fitting | |
| 16 | 1140102647 | Fitting | |
| 17 | 1140102482 | Pipe joint | |
| 18 | 1140102736 | Fitting | |
| 19 | 1140102598 | Union tee | |
| 20 | 1140102501 | Pipe fitting | |
| 21 | 1140102742 | Joint | |
| 22 | 1140102660 | Fitting | |
| 23 | 1140102547 | Pipe joint | |
| 24 | 1140102763 | Fitting | |
| 25 | 1140102502 | Pipe fitting | |
| 26 | 1140101625 | Pipe fitting | |
| 27 | 1140102657 | Joint | |
| 28 | 1140102954 | Pressure testing fitting | |
| 29 | 1140102549 | Pipe fitting | |
| 30 | 1990200128 | Pipe clamp | |
| 31 | 00672303405010001 | Steel pipe assy | |
| 32 | 00672303405020001 | Steel pipe assy | |
| 33 | 00672303405030001 | Steel pipe assy | |
| 34 | 00672303405040001 | Steel pipe assy | |
| 35 | 00672303405050001 | Steel pipe assy | |
| 36 | 00672303405060001 | Steel pipe assy | |
| 37 | 00672303405070001 | Steel pipe assy | |
| 38 | 00672303405080001 | Steel pipe assy | |
| 39 | 00672303405090001 | Steel pipe assy | |
| 40 | 00672303405100001 | Steel pipe assy | |
| 41 | 00672303405110001 | Steel pipe assy | |
| 42 | 00672303405120001 | Steel pipe assy | |
| 43 | 00672303405130001 | Steel pipe assy | |
| 44 | 00672303405140001 | Steel pipe assy | |
| 45 | 00672303405150001 | Steel pipe assy | |
| 46 | 00672303405160001 | Steel pipe assy | |
| 47 | 00672303405170001 | Steel pipe assy | |
| 48 | 00672303405180001 | Steel pipe assy | |
| 49 | 00672303405190001 | Steel pipe assy | |
| 50 | 00672303405200001 | Steel pipe assy | |
| 51 | 00672303405210001 | Steel pipe assy | |
| 52 | 00672303405220001 | Steel pipe assy | |
| 53 | 00672303405230001 | Steel pipe assy | |
| 54 | 1140211672 | Hose assembly | |
| 55 | 1140203041 | Hose assy | |
| 56 | 1140211673 | Hose assy | |
| 57 | 1140202282 | Hose assy | |
| 58 | 1140211674 | Hose assy | |
| 59 | 1140201727 | Hose assy | |
| 60 | 1140211675 | Hose assy | |
| 61 | 1140211676 | Hose assy | |
| 62 | Steering mechanism | Steering mechanism | |
| 63 | Steering booster cylinder | Steering booster cylinder |
