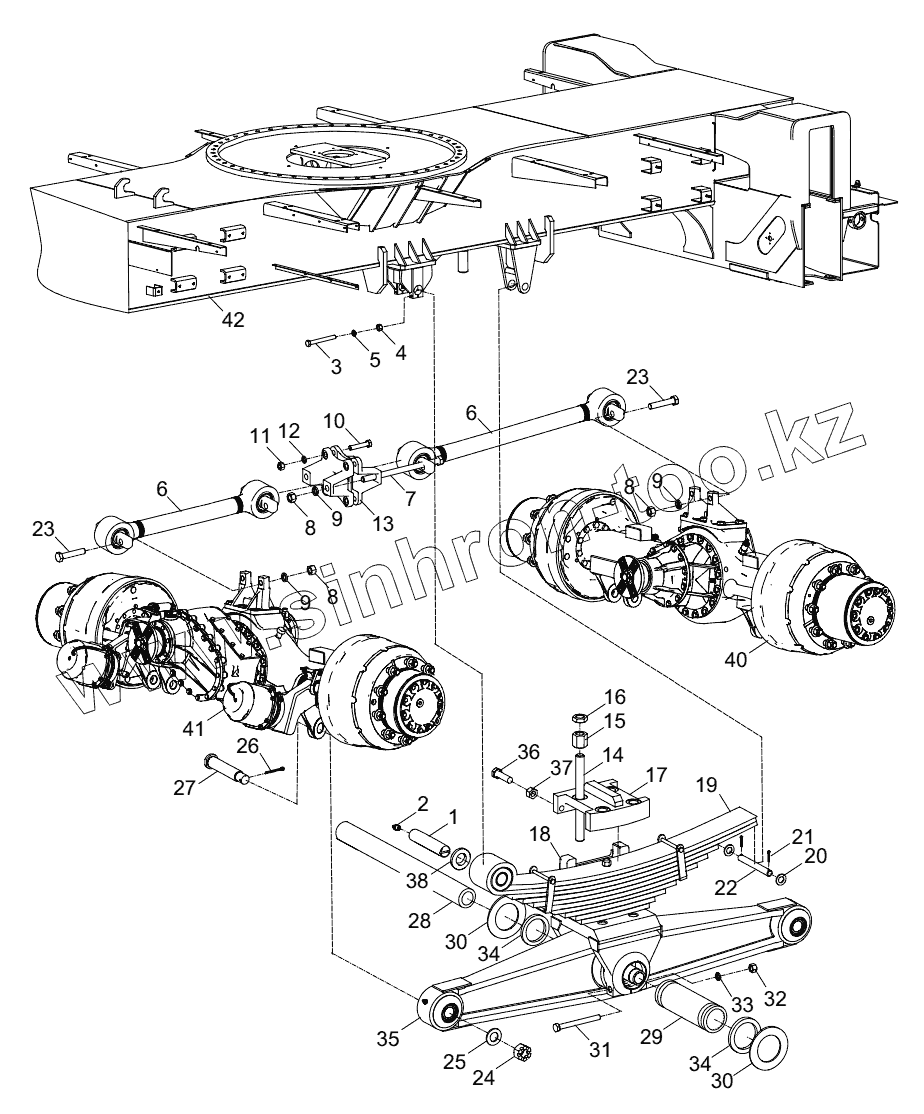

Каталог запасных частей к технике: Zoomlion ZLJ5500V3. REAR SUSPENSION D00676602900400000Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
8
8
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
30
31
32
33
34
34
35
36
37
38
40
41
42
Позиция на иллюстрации Заводской номер детали Название детали
00676602900400000 00676602900400000 Rear suspension
1 00676602900401010 Pin
2 1080000001 Oil cup
3 1040000126 Bolt
4 1040200096 Nut
5 1040300054 Washer
6 1039900000 Thrust rod assy
7 00676602900401020 Bolt
8 1040200366 Nut
9 1040300028 Washer
10 1040000125 Болт M14x70-8.8
11 1040200112 Nut
12 1040300068 Washer
13 00676602900401030 Thrust rod bracket
14 00676602900401040 Double-ended bolt
15 1040200117 Baffle
16 1040200114 Baffle
17 00676602900420000 Cover plate assy
18 00676602900430000 Supporting seat of balance beam
19 00676602900440001 Rear leaf spring assy
20 1040300106 Washer
21 1040500126 Cotter pin
22 00676602900401050 Rear pin of rear spring
23 1040000131 Болт
24 1040200116 Baffle
25 1040300074 Seal ring
26 1040500079 Pin
27 00676602900401060 Pin
28 00676602900401070 Pipe
29 00676602900450000 Shaft pipe
30 00676602900401080 Shim
31 1040000130 Bolt
32 1040200110 Nut
33 1040300065 Washer
34 00676602900401090 Oil seal
35 00676602900470001 Balance beam assy
36 1040000129 Bolt
37 1040200097 Nut
38 00676602900481050 Adjusting shim
39 204110014 Lithium-based Grease
40 Drive axle Drive axle
41 Drive axle Drive axle
42 Chassis frame Chassis frame assy
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
