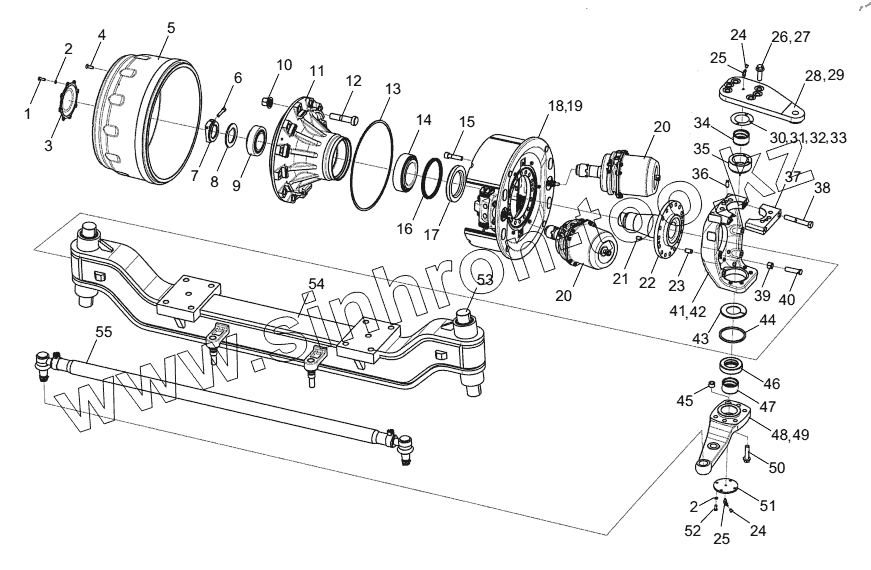

  5. NON-DRIVEN AXLE (STEERED) D1030100753_102293Y

Каталог запасных частей к технике: Zoomlion ZLJ5500V3. NON-DRIVEN AXLE (STEERED) D1030100753_102293Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
Позиция на иллюстрации Заводской номер детали Название детали
1030100753 1030100753 Non-driven axle
1 1039803833 Hex bolt
2 1139801137 Spring washer
3 1039802901 End cover, front axle
4 1039803835 Cross-recessed flat-head screw
5 P10300001812 Brake hub 72011028
6 1039802975 Allen screw
7 1039802878 Locknut
8 1039802742 Thrust washer
9 1039802524 Tapered roller bearing
10 P10300001820 Nut
11 1039802284 Front wheel hub
12 P10300001821 Bolt
13 1039802880 Circlip for shaft
14 1039802665 Tapered roller bearing
15 Stud Stud
16 1039802670 Seal ring, shaft
17 1039802879 Spacer ring
18 1039802902 Wedge brake assy, left
19 1039802903 Wedge brake assy, right
20 1039802885 Spring brake chamber
21 1039802979 Cylindrical pin
22 1039803826 Shaft head
23 1039802981 Cylindrical pin
24 1039802582 Protecting casing
25 1039802576 Lubricating nipple
26 1039802858 Bolt
27 1039803834 Hex bolt
28 1039802897 Steering knuckle arm assy
29 1039803829 Cover plate
30 1039802891 Adjusting washer
31 1039803823 Adjusting washer
32 1039803824 Adjusting washer
33 1039803825 Adjusting washer
34 1039802890 Bushing
35 1039802889 Shaftsleeve
36 1039803495 Cylindrical pin
37 1039803822 Bearing cover
38 1039802972 Hex bolt
39 1039802894 Adjusting screw
40 1039802895 Hex nut
41 1039802898 Steering knuckle, left
42 1039802899 Steering knuckle, right
43 1039802892 Protection piece
44 1039802893 Seal ring
45 1039802557 Positioning sleeve
46 1039802900 Tapered roller bearing
47 1039802896 Bushing
48 1039803827 Steering tie rod arm, left
49 1039803828 Steering tie rod arm, right
50 1039802859 Bolt
51 1039802886 Cover
52 1039803471 Hex bolt
53 1039803830 Knuckle bearing pin
54 1039803831 Front axle assy, welded plate
55 1039803832 Steering drag rod assy
