Каталог запасных частей к технике: Zoomlion ZLJ5500V3. HYDRAULIC RESERVOIR INSTALLATION D00631324800400000Y

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано ZLJ5500V3 SPECIAL PURPOSE CHASSIS FOR TRUCK CRANE D00672300000000000Y INTERCOOLING SYSTEM D00672300900000000Y ENGINE AND SUSPENSION SYSTEM D00672301000000000Y FUEL SUPPLY SYSTEM D00672301100000001Y FUEL COARSE FILTER PRE-ASSEMBLED D00671441100200000Y FUEL TANK (300L) D00671521100200001_101021Y AIR INTAKE SYSTEM D00672301400000000Y EXHAUST SYSTEM D00672301200000000Y RAINPROOF CAP ASSY D00671701210200000Y COOLING SYSTEM D00672301300000000Y CLUTCH INSTALLATION AND ITS CONTROLS D00672301600000000Y CLUTCH ASSY D1030500086_102314Y 102 TYPE CLUTCH BOOSTER CYLINDER D1010200010_102345Y TRANSMISSION INSTALLATION AND ITS CONTROLS D00672301700000000Y TRANSMISSION (CLUTCH AND TRANSMISSION SHELL ASSY) D1030300100_101250Y TRANSMISSION (AXLE 2 ASSY) D1030300100_101250Y TRANSMISSION (LEFT,RIGHT AND INTERMEDIATE SHAFT ASSY) D1030300100_101250Y TRANSMISSION (AXLE 1 ASSY) D1030300100_101250Y TRANSMISSION (REVERSE GEAR, INTERMEDIATE SHAFT ASSY) D1030300100_101250Y TRANSMISSION (UPPER COVER ASSY) D1030300100_101250Y TRANSMISSION (CONTROL DEVICE ASSY) D1030300100_101250Y TRANSMISSION (AIR FILTER AND THREADED PLUG ASSY) D1030300100_101250Y TRANSMISSION (AUXILIARY TANK DRIVE GEAR ASSY) D1030300100_101250Y TRANSMISSION (AUXILIARY TANK MAIN SHAFT ASSY) D1030300100_101250Y TRANSMISSION (AUXILIARY TANK LEFT,RIGHT AND INTERMEDIATE SHAFT) D1030300100_101250Y TRANSMISSION (REAR COVER ASSY) D1030300100_101250Y TRANSMISSION (AIR CYLINDER ASSY., AUXILIARY TANK) D1030300100_101250Y TRANSMISSION (QD70 PTO ASSY) D1030300100_101250Y DRIVE SHAFT ARRANGMENT, HANDE AXLE D00672302200000000Y DRIVE SHAFT SECTION D00672302200200000_100009Y DRIVE SHAFT SECTION 2 ASSY D00671532230400000_100009Y DRIVE SHAFT SECTION 3 ASSY D00676602230600000_100009Y AXLE 1 ASSY D00672303000200001Y NON-DRIVEN AXLE (STEERED) D1030100752_102293Y AXLE 2 ASSY D00672303000400001Y NON-DRIVEN AXLE (STEERED) D1030100753_102293Y DRIVE AXLE PRE-ASSEMB ED, NON-STEERED, HANDE INTERMEDIATE AXLE D00672302500000000Y DRIVE AXLE (INTERMEDIATE AXLE SHELL) D1030100715_102293Y DRIVE AXLE (INTERMEDIATE AXLE DRIVE DEVICE 1) D1030100715_102293Y DRIVE AXLE (INTERMEDIATE AXLE DRIVE DEVICE 2) D1030100715_102293Y DRIVE AXLE (INTERMEDIATE AXLE DRIVE DEVICE 3) D1030100715_102293Y DRIVE AXLE PRE-ASSEMBLED, NON-STEERED,HANDE REAR AXLE D00672302400000000Y DRIVE AXLE (REAR AXLE SHELL) D1030100716_102293Y DRIVE AXLE (REAR AXLE DRIVE DEVICE) D1030100716_102293Y DRIVE AXLE (WHEEL PLANETARY REDUCER 1) D1030100716_102293Y DRIVE AXLE (WHEEL PLANETARY REDUCER 2) D1030100716_102293Y DRIVE AXLE (BRAKE 1) D1030100716_102293Y DRIVE AXLE (BRAKE 2) D1030100716_102293Y WHEEL ASSY D00672303100000000Y WHEEL ASSY D00672303100200000Y WHEEL D00670603100000000Y FRONT SUSPENSION D00672302900200001Y LEAF SPRING ASSY D00672302900230000_101324Y REAR SUSPENSION D00676602900400000Y REAR LEAF SPRING ASSY D00676602900440001_101324Y BALANCE BEAM ASSY D00676602900470001Y STEERING MECHANISM D00672303400200000Y STEERING GEAR D1032300052_100000Y STEERING HYDRAULIC SYSTEM D00672303400400001Y OIL STEERING RESERVOIR D00672303400410001Y AIR CONDITIONING D00672307600000000Y HEATER D00671407700000000Y AIR BRAKE SYSTEM (FRONT AXLE BRAKE) D00672303500000002Y AIR BRAKE SYSTEM (INTERMEDIATE AXLE AND REAR AXLE BRAKE) D00672303500000002Y AIR BRAKE SYSTEM (EMERGENCY BRAKE) D00672303500000002Y AIR BRAKE SYSTEM (AUXILIARY BRAKE) D00672303500000002Y AIR RESERVOIR AND VALVE BLOCK INSTALATION D00671563500200000Y AUXILIARY ELEMENT INSTALLATION, CHASSIS FRAME D00672302700000000Y ENGINE HOUSING ASSY D00672305100000000Y PLATFORM ASSY D00672305600000000Y FRONT PLATFORM ASSY D00672305600200000Y INTERMEDIATE COVER PLATE ASSY D00672305600400000Y FRONT INTERMEDIATE PLATFORM ASSY D00672305600600000Y REAR INTERMEDIATE PLATFORM ASSY D00672305600800000Y REAR PLATFORM ASSY D00672305601000000Y GUARAD BOARD D00672305601400000Y WALL PANEL AND ITS INSTALLATION D00672305800000000Y SPARE TIRE INSTALLATION D00672305500000000Y TOOLBOX ASSY D00672309400000000Y HYDRAULIC OIL TANK D00631323000000000Y RETURN-LINE FILTER D1010600009_101281Y RETURN-LINE FILTER D1010600009_101375Y RETURN-LINE FILTER D1010600009_102124Y HYDRAULIC RESERVOIR INSTALLATION D00631324800400000Y LEVEL GAUGE INSTALLATION D00631224720200000Y BOOM SUPPORT D00631320300000000Y OIL PUMP DRIVE DEVICE D00631323900000001Y OIL PUMP DRIVE DEVICE D00631323910000000Y VARIABLE PUMP A4VG125EP4X-NAF02K023EP D1010000709_32793Y THE 5TH OUTRIGGER AND ITS INSTALLATION D00631321100000000Y OUTRIGGER D00633101300000000Y THE 5TH OUTRIGGER CYLINDER D00631418421400000Y OUTRIGGER OPERATING MECHANISM D00631255810000000Y DRIVER'S CAB INSTA LATION D00671554900000000Y DRIVER'S CAB (FRONT AND REAR WINDSHIELD) D1130000215_100037Y DRIVER'S CAB (DECORATIVE PLATE AND ACCESSORIES) D1130000215_100037Y DRIVER'S CAB (DOUBLE SEAT) D1130000215_100037Y DRIVER'S CAB (PERFACE AND PART INTERIOR DECORATIVES) D1130000215_100037Y DRIVER'S CAB (INSTRUMENT CONSOLE ARRANGMENT) D1130000215_100037Y DRIVER'S CAB (INSTRUMENT CONSOLE ELECTRIC MOUNTING ASSY) D1130000215_100037Y DRIVER'S CAB (DRIVER'S CAB ASSY 1) D1130000215_100037Y DRIVER'S CAB (DRIVER'S CAB ASSY 2) D1130000215_100037Y DRIVER'S CAB (DRIVER'S CAB ASSY 3) D1130000215_100037Y DRIVER'S CAB (DRIVER'S CAB ASSY 4) D1130000215_100037Y DRIVER'S CAB (WIPER SYSTEM) D1130000215_100037Y DRIVER'S CAB (DOOR) D1130000215_100037Y DRIVER'S CAB (BUMPER) D1130000215_100037Y DRIVER'S CAB (CLUTCH) D1130000215_100037Y DRIVER'S CAB (AIR PASSAGE ASSY) D1130000215_100037Y DRIVER'S CAB (BUMPER,WHEEL COVER AND ACCESSORIES) D1130000215_102383ZY DRIVER'S CAB (STEERING DRIVE DEVICE ACCESSORIES ) D1130000215_102383ZY DRIVER'S CAB (DOOR ASSY) D1130000215_102383ZY DRIVER'S CAB (DRIVER'S CAB WELDED ASSY AND PART INTERIOR DECORATIONS) D1130000215_102383ZY DRIVER'S CAB (CLUTCH SYSTEM) D1130000215_102383ZY DRIVER'S CAB (INSTRUMENT CONSOLE AND ACCESSORIES) D1130000215_102383ZY DRIVER'S CAB (CARPET ASSY AND ACCESSORIES) D1130000215_102383ZY DRIVER'S CAB (HEAT INSULATION PAD ASSY) D1130000215_102383ZY DRIVER'S CAB (OUTSIDE MIRROR AND ROD ASSY) D1130000215_102383ZY DRIVER'S CAB (SWITCH ASSY) D1130000215_102383ZY DRIVER'S CAB (INTERIOR DECORATIVE PLATE AND ACCESSORIES ASSY) D1130000215_102383ZY DRIVER'S CAB (INTERIOR DECORATIVE IRON BRACKET) D1130000215_102383ZY DRIVER'S CAB (HEATER AND ACCESSORIES) D1130000215_102383ZY DRIVER'S CAB (WINDSHIELD ASSY) D1130000215_102383ZY DRIVER'S CAB (CABLE HARNESS ASSY) D1130000215_102383ZY DRIVER'S CAB (WIPER SYSTEM) D1130000215_102383ZY DRIVER'S CAB (BRAKE SYSTEM) D1130000215_102383ZY DRIVER'S CAB (SEAT ASSY) D1130000215_102383ZY CENTRAL REVOLVING JOINT D1011200023_6400Y CENTRE REVOLVING JOINT INSTALLATION D00631324800800000Y ELECTRICAL SYSTEM, CHASSIS FRAME D00672306300000000Y CABLE BUNDLE OF CHASSIS FRAME D00672306300200004Y CABLE BUNDLE OF ECU D00672306300400003Y CABLE BUNDLE OF ENGINE D00672306300600002Y CABLE BUNDLE OF RIGHT PLATFORM ASSY D00672306300800001Y CABLE BUNDLE OF LEFT PLATFORM ASSY D00672306301000001Y D00630960000000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (HYDRAULIC OIL TANK PARTS) D00631321710000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (QUADRUPLE GEAR PUMP PARTS) D00631321710000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (FRONT HORIZONTAL CYLINDER PARTS) D00631321710000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (REAR HORIZONTAL CYLINDER PARTS) D00631321710000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (THE 5TH OUTRIGGER PARTS) D00631321710000000Y UNDERCARRIAGE MULTIPLE UNIT VALVE D1010300042_6500Y UNDERCARRIAGE MULTIPLE UNIT VALVE (RELIEF VALVE) D1010300042_6500Y UNDERCARRIAGE MULTIPLE UNIT VALVE (CHECK VALVE) D1010300042_6500Y UNDERCARRIAGE MULTIPLE UNIT VALVE (OVERLOAD VALVE) D1010300042_6500Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (HYDRAULIC OIL TANK PARTS) D00631321700000002Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (QUADRUPLE GEAR PUMP PARTS) D00631321700000002Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (FRONT HORIZONTAL CYLINDER PARTS) D00631321700000002Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (THE 5TH OUTRIGGER PARTS) D00631321700000002Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM (REAR HORIZONTAL CYLINDER PARTS) D00631321700000002Y UNDERCARRIAGE MULTIPLE UNIT VALVE D1010300042_6500Y UNDERCARRIAGE MULTIPLE UNIT VALVE (RELIEF VALVE) D1010300042_6500Y UNDERCARRIAGE MULTIPLE UNIT VALVE (CHECK VALVE) D1010300042_6500Y UNDERCARRIAGE MULTIPLE UNIT VALVE (OVERLOAD VALVE) D1010300042_6500Y ENGINE (AIR CYLINDER) D1000000182_102290Y ENGINE (AIR CYLINDER) D1000000182_102290Y ENGINE (AIR CYLINDER) D1000000182_102290Y ENGINE (AIR CYLINDER) D1000000182_102290Y ENGINE (AIR CYLINDER) D1000000182_102290Y ENGINE (AIR CYLINDER) D1000000182_102290Y ENGINE (AIR CYLINDER) D1000000182_102290Y ENGINE (CAMSHAFT FLYWHEEL) D1000000182_102290Y ENGINE (CONNECTING ROD AND PISTON ASSY) D1000000182_102290Y ENGINE (CONNECTING ROD AND PISTON ASSY) D1000000182_102290Y ENGINE (CONNECTING ROD AND PISTON ASSY) D1000000182_102290Y ENGINE (COVER) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (VALVE MECHANISM) D1000000182_102290Y ENGINE (WATER PUMP AND FAN) D1000000182_102290Y ENGINE (WATER PUMP AND FAN) D1000000182_102290Y ENGINE (WATER PUMP AND FAN) D1000000182_102290Y ENGINE (WATER PUMP AND FAN) D1000000182_102290Y ENGINE (WATER PUMP AND FAN) D1000000182_102290Y ENGINE (OIL PUMP AND OIL FILTER) D1000000182_102290Y ENGINE (OIL PUMP AND OIL FILTER) D1000000182_102290Y ENGINE (OIL PUMP AND OIL FILTER) D1000000182_102290Y ENGINE (OIL SUPPLY SYSTEM) D1000000182_102290Y ENGINE (OIL SUPPLY SYSTEM) D1000000182_102290Y ENGINE (OIL SUPPLY SYSTEM) D1000000182_102290Y ENGINE (MOTOR) D1000000182_102290Y ENGINE (MOTOR) D1000000182_102290Y ENGINE (MOTOR) D1000000182_102290Y ENGINE (MOTOR) D1000000182_102290Y ENGINE (AIR-INTAKE SYSTEM AND EXHAUST SYSTEM) D1000000182_102290Y ENGINE (AIR-INTAKE SYSTEM AND EXHAUST SYSTEM) D1000000182_102290Y ENGINE (AIR-INTAKE SYSTEM AND EXHAUST SYSTEM) D1000000182_102290Y ENGINE (AIR-INTAKE SYSTEM AND EXHAUST SYSTEM) D1000000182_102290Y ENGINE (AIR-INTAKE SYSTEM AND EXHAUST SYSTEM) D1000000182_102290Y ENGINE (AIR-INTAKE SYSTEM AND EXHAUST SYSTEM) D1000000182_102290Y ENGINE (AIR COMPRESSOR) D1000000182_102290Y ENGINE (AIR COMPRESSOR) D1000000182_102290Y ENGINE (OIL PAN) D1000000182_102290Y ENGINE (OIL PAN) D1000000182_102290Y ENGINE (OIL PAN) D1000000182_102290Y ENGINE (OIL PAN) D1000000182_102290Y ENGINE (CABLE HARNESS AND SENSOR) D1000000182_102290Y

1

2

3

4

5

5

7

8

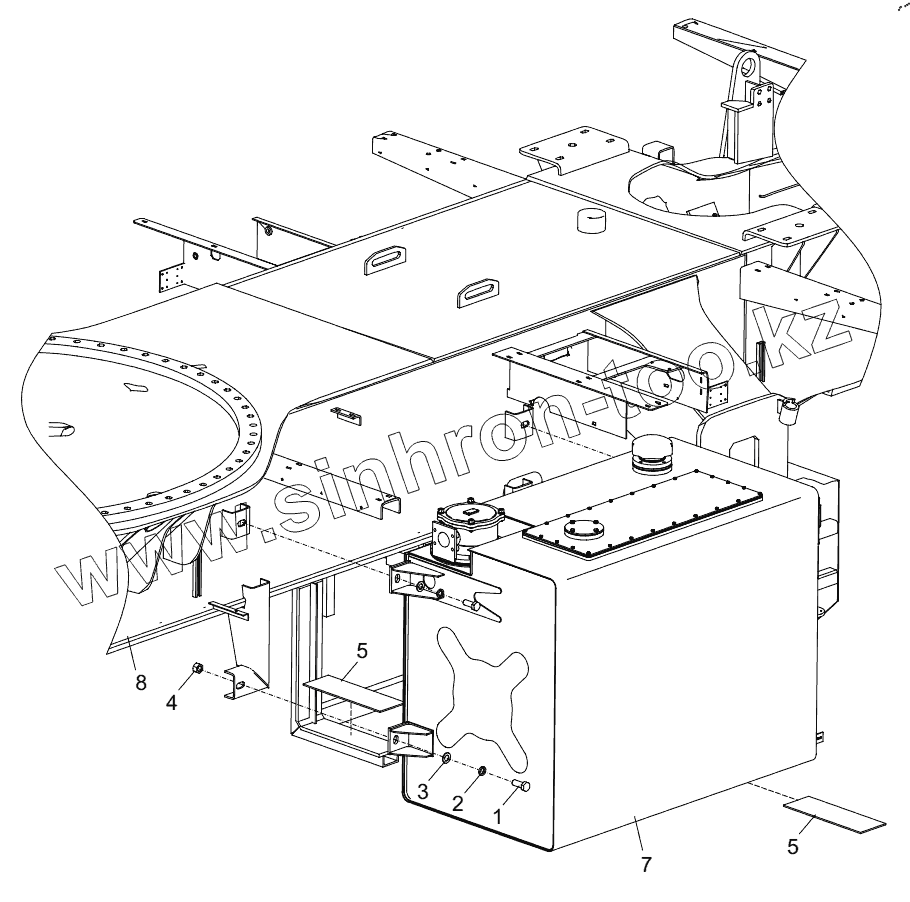

Позиция на иллюстрации	Заводской номер детали		Название детали
00631324800400000	00631324800400000		Hydraulic reservoir installation
1	1040000175		Bolt
2	1040300038		Washer
3	1040300106		Washer
4	1040200097		Nut
5	00631324800401010		Pad
6	202230016		Loctite glue
7	Hydraulic oil tank		Hydraulic oil tank
8	Chassis frame assy		Chassis frame assy
