  5. DRIVE AXLE (INTERMEDIATE AXLE SHELL) D1030100715_102293Y

Каталог запасных частей к технике: Zoomlion ZLJ5500V3. DRIVE AXLE (INTERMEDIATE AXLE SHELL) D1030100715_102293Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
2
2
2
3
4
5
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
16
16
17
17
17
18
18
18
19
19
20
21
21
22
22
23
23
24
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
48
49
49
50
51
52
53
54
55
56
57
58
142

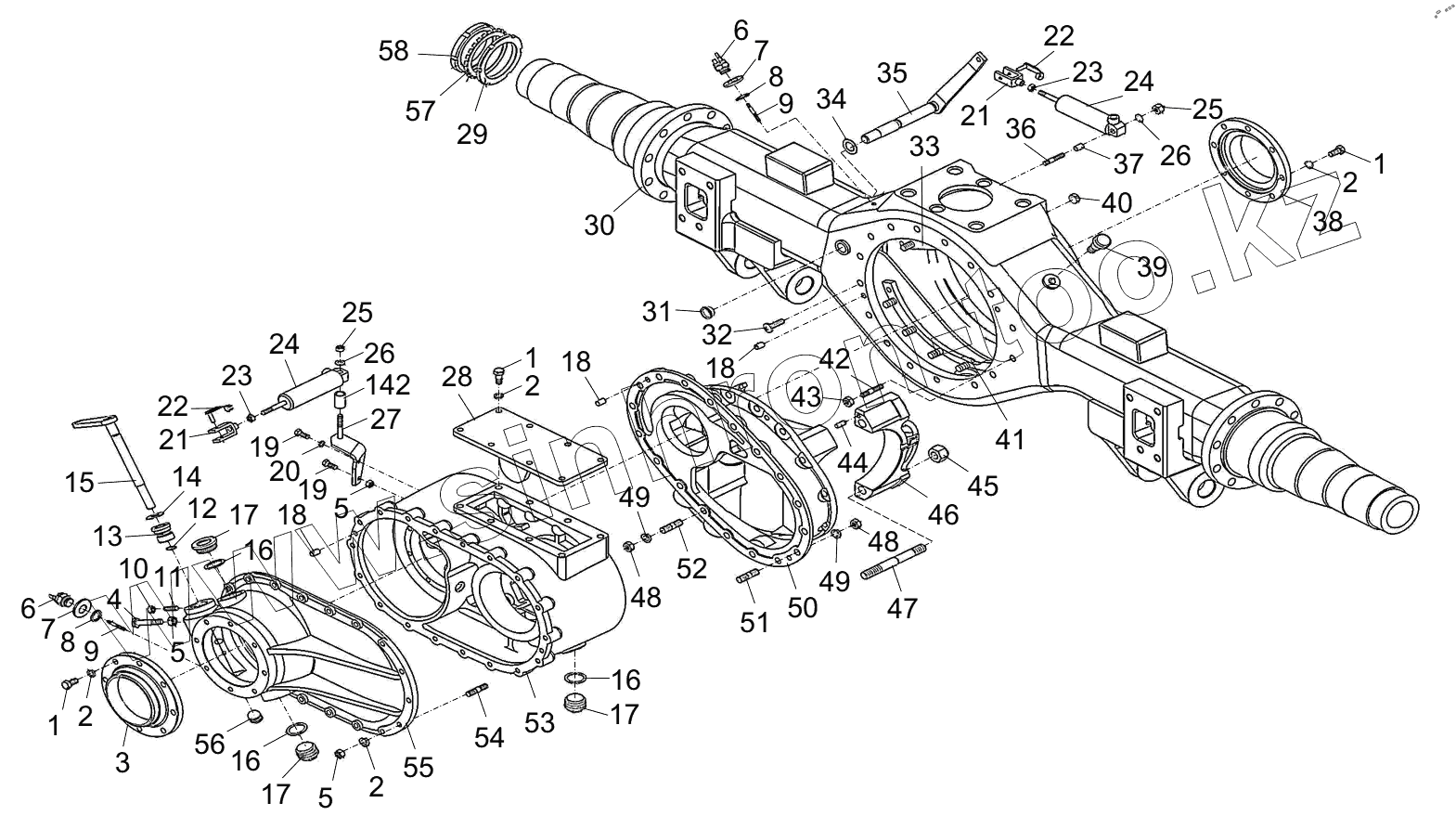

Позиция на иллюстрации Заводской номер детали Название детали
1030100715 1030100715 Drive axle
1 1040001889 Hex bolt
2 P10300000941 Spring washer
3 1039802644 End cover
4 1039802968 Hex bolt
5 1039803484 Hex nut
6 1039802904 Differential lock pressure switch
7 1039803497 Seal ring
8 1039803490 Retainer ring for shaft
9 1039802549 Pin
10 1039803483 Hex nut
11 1040102105 Grooved set screw
12 1039803489 Circlip for shaft
13 1039802671 Bushing
14 1039802673 O ring
15 1039802623 Differential lock swing arm assy
16 1039803498 Seal ring
17 1039802544 Magnetic threaded plug assy
18 P10300001163 Cylindrical pin
19 1039803471 Hex bolt
20 1139801137 Spring washer
21 1039803431 Fork knuckle
22 1039802551 Es flat head lock
23 1039802976 Hex thin nut
24 1039802554 Operating cylinder
25 1039803481 Locknut
26 1139801138 Flat washer
27 1039802642 Carrier assy
28 1039802849 Oil-receiving plate assy
29 1039802877 Locknut
30 1039803467 Intermediate axle housing assy
31 1039802578 Bowl type blanking plug
32 1039803478 Countersunk head screw
33 1039802654 Fixing clip assy, upper
34 1039802674 O-ring
35 1039802652 Control lever assy
36 1039803469 Stud
37 1039802547 Bushing
38 1039802639 Bearingseat
39 1039800827 Ventilation port assy
40 1039802575 Hex threaded plug
41 1039802653 Fixing clip assy, lower
42 1039802568 Stud
43 1039802570 Nut
44 1039803493 Cylindrical pin
45 1039802571 Self lock baffle
46 1039802584 Differential bearing cover
47 1039802966 Stud
48 1039803485 Hex nut
49 1039803487 Springwasher
50 1039802626 Main reducer housing, intermediate axle
51 1039802964 Stud
52 1039802965 Stud
53 1039802649 Transition axle tank
54 1039802963 Stud
55 1039802640 Tank cover, transition axle
56 1039802577 Bowl type blanking plug
57 1039802548 Thrust washer
58 1039802876 Locknut
142 1039802546 Spacer sleeve
