  5. AIR BRAKE SYSTEM (FRONT AXLE BRAKE) D00672303500000002Y

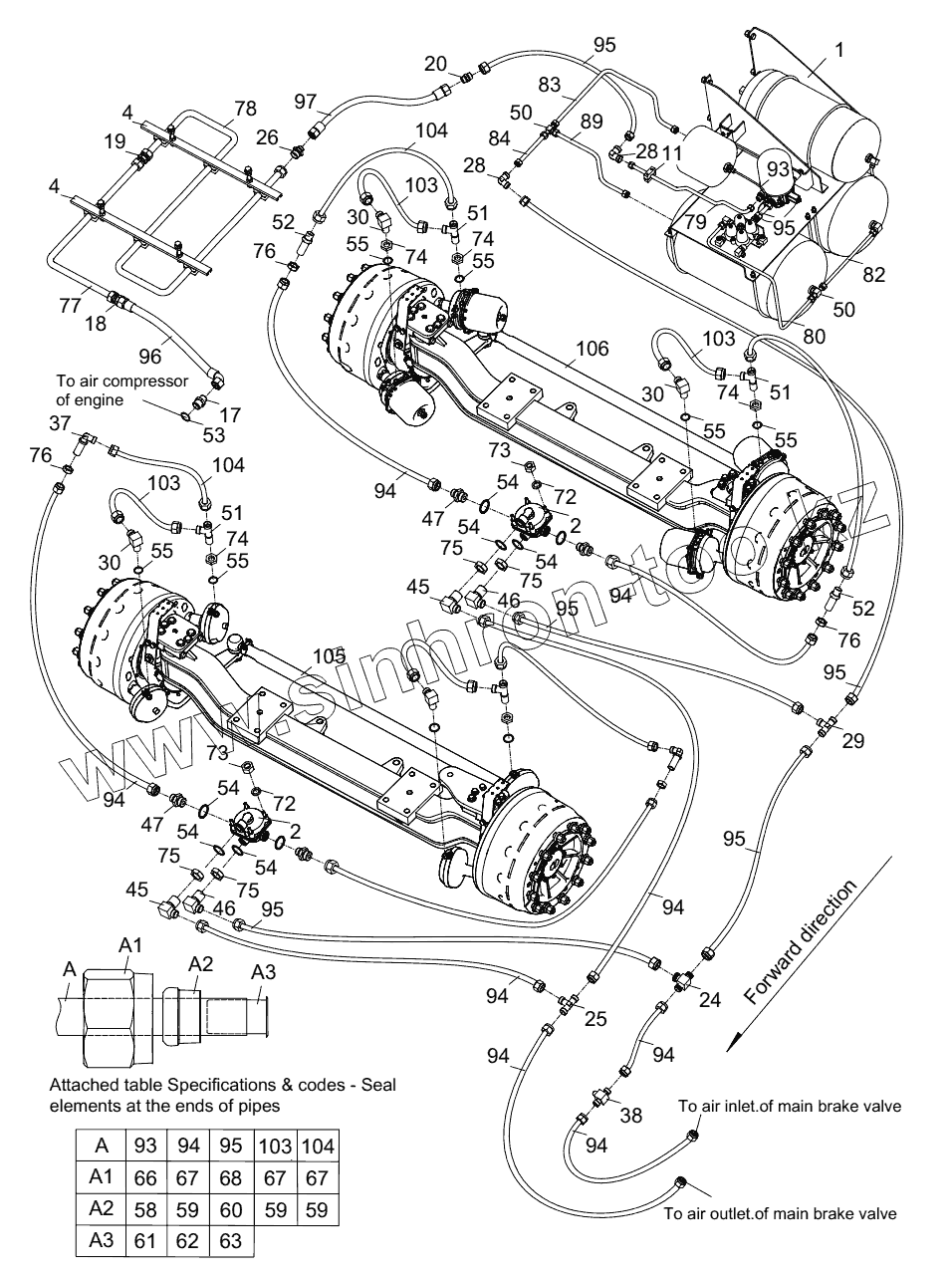

Каталог запасных частей к технике: Zoomlion ZLJ5500V3. AIR BRAKE SYSTEM (FRONT AXLE BRAKE) D00672303500000002Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
4
4
11
17
18
19
20
24
25
26
28
28
29
30
30
30
37
38
45
45
46
46
47
47
50
50
51
51
51
52
52
53
54
54
54
54
54
54
55
55
55
55
55
55
72
72
73
73
74
74
74
74
75
75
75
75
76
76
76
77
78
79
80
82
83
84
89
93
94
94
94
94
94
94
94
94
95
95
95
95
95
95
96
97
103
103
103
104
104
105
106
Позиция на иллюстрации Заводской номер детали Название детали
00672303500000002 00672303500000002 Air brake system
1 00671563500200000 Air reservoir and valve block installation
2 1070500006 Foot-operated relay valve
4 00672303500200000 Pipe clamp installation
11 1990200169 Pipe clamp
14 00672303500001010 Schematic diagram, air brake system
16 202230005 Loctite glue
17 1140100577 Fitting
18 1140101026 Pipe fitting
19 1140101065 Pipe fitting
20 1140100948 Fitting body
24 00676603500001030 Union tee
25 1140100952 Fitting body
26 00672303500001020 Straight fitting
28 1140100953 Fitting body
29 1140100926 Fitting body
30 00676603500001020 Elbow union
37 1140100971 Fitting body
38 00670403500001050 Union tee
45 00676603501401010 Straight thread elbow
46 00676603500601020 Union elbow
47 00676603500001140 Straight thread connector
50 00676603500001070 Union tee
51 00672303500001040 Tee union
52 1140103276 Fitting body 35
53 1040300113 Washer
54 1040300105 Washer
55 1040300022 Washer
58 1140100922 Cutting sleeve
59 1140100931 Cutting sleeve
60 1140100938 Cutting sleeve
61 1079900004 Bushing
62 1079900006 Bushing
63 1079900005 Bushing
66 1040200133 Nut
67 1040200136 Baffle
68 1040200139 Baffle
72 1040200192 Nut
73 1040300063 Washer
74 1040200157 Nut
75 1040200154 Nut
76 1040200164 Nut
77 00672303505010000 Cold drawn precision tube assy
78 00672303505020000 Cold drawn precision tube assy
79 00672303505030000 Cold drawn precision tube assy
80 00672303505040000 Cold drawn precision tube assy
82 00672303505060000 Cold drawn precision tube assy
83 00672303505070000 Cold drawn precision tube assy
84 00672303505080000 Cold drawn precision tube assy
89 00672303505140000 Cold drawn precision tube assy
93 1140202779 Nylon pressure pipe nylon
94 1140202781 Nylon pressure pipe nylon
95 1140202782 Nylon pressure pipe nylon
96 1001410154 High temperature air pipeb/b3-32x1w-1400-40c°+232c°
97 1140211654 Hose assy
103 1140202791 Brake hose assy
104 1140202788 Brake hose assy
105 Front axle assy axle 1 Front axle assy axle 1
106 Front axle assy axle 2 Front axle assy axle 2
111 Engine assy Engine assy
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
