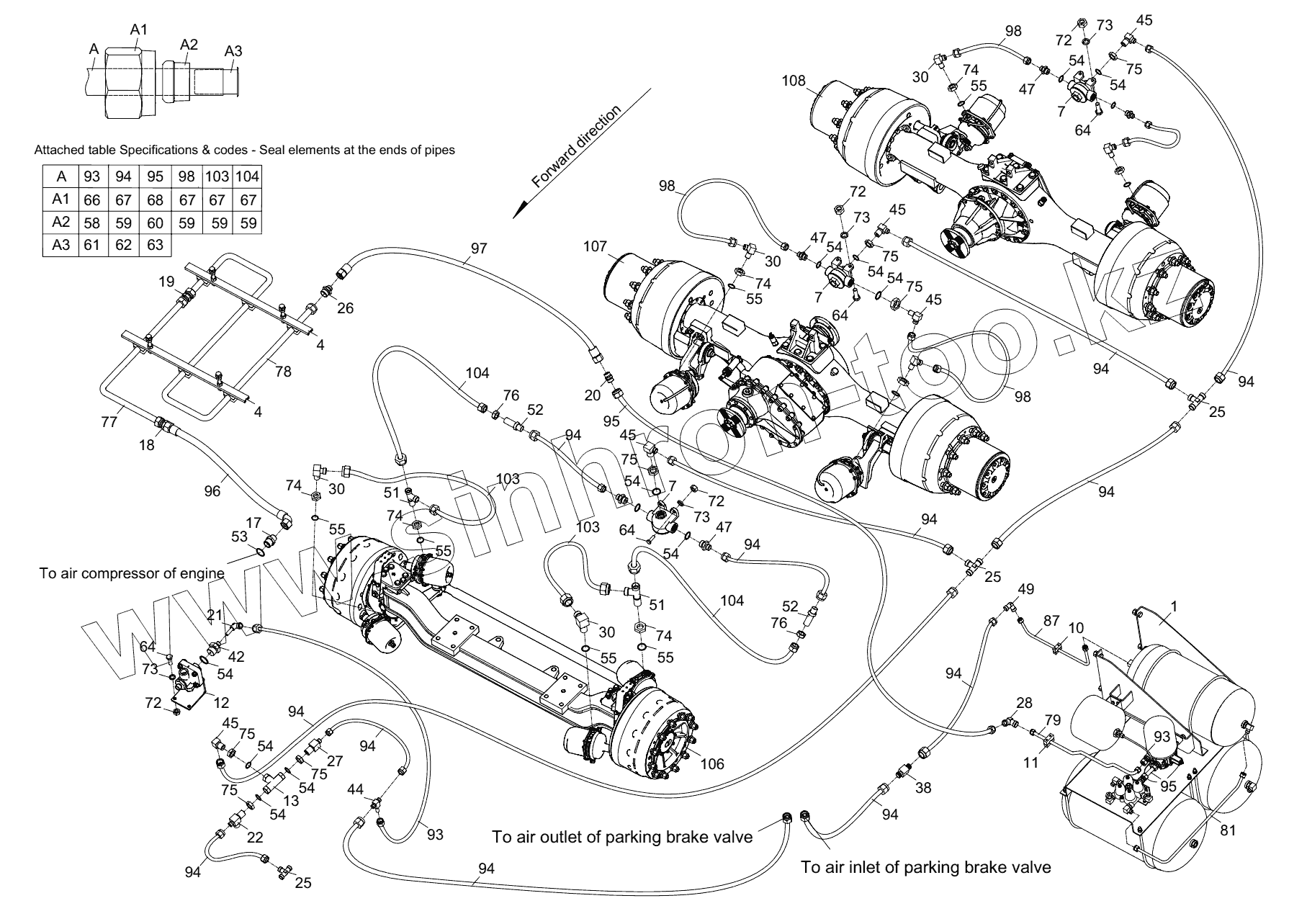

Каталог запасных частей к технике: Zoomlion ZLJ5500V3. AIR BRAKE SYSTEM (EMERGENCY BRAKE) D00672303500000002Y
1
4
4
7
7
7
10
11
12
12
17
18
19
20
21
22
25
25
25
26
27
28
30
30
30
30
38
42
44
45
45
45
45
45
47
47
47
49
51
51
52
52
53
54
54
54
54
54
54
54
54
54
54
54
55
55
55
55
55
55
64
64
64
64
72
72
72
72
73
73
73
73
74
74
74
74
74
75
75
75
75
75
75
75
76
76
77
78
79
81
87
93
93
94
94
94
94
94
94
94
94
94
94
94
94
95
95
96
97
98
98
98
103
103
104
104
106
107
108
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00672303500000002 | 00672303500000002 | Air brake system | |
| 1 | 00671563500200000 | Air reservoir and valve block installation | |
| 4 | 00672303500200000 | Pipe clamp installation | |
| 7 | 1070500000 | Quick-release valve | |
| 10 | 00676603503400000 | Pipe clamp | |
| 11 | 1990200169 | Pipe clamp | |
| 12 | 1070500043 | Stop valve | |
| 13 | 1070500004 | Tee clack | |
| 14 | 00672303500001010 | Schematic diagram, air brake system | |
| 16 | 202230005 | Loctite glue | |
| 17 | 1140100577 | Fitting | |
| 18 | 1140101026 | Pipe fitting | |
| 19 | 1140101065 | Pipe fitting | |
| 20 | 1140100948 | Fitting body | |
| 21 | 1140100911 | Fitting body 35 | |
| 22 | 00676603520001040 | Union tee | |
| 25 | 1140100952 | Fitting body | |
| 26 | 00672303500001020 | Straight fitting | |
| 27 | 00676603520001050 | Union tee | |
| 28 | 1140100953 | Fitting body | |
| 30 | 00676603500001020 | Elbow union | |
| 38 | 00670403500001050 | Union tee | |
| 42 | 00676433501201010 | Straight fitting | |
| 44 | 00676603520001020 | Union tee | |
| 45 | 00676603501401010 | Straight thread elbow | |
| 47 | 00676603500001140 | Straight thread connector | |
| 49 | 1140100955 | Fitting body 35 | |
| 51 | 00672303500001040 | Tee union | |
| 52 | 1140103276 | Fitting body 35 | |
| 53 | 1040300113 | Washer | |
| 54 | 1040300105 | Washer | |
| 55 | 1040300022 | Washer | |
| 58 | 1140100922 | Cutting sleeve | |
| 59 | 1140100931 | Cutting sleeve | |
| 60 | 1140100938 | Cutting sleeve | |
| 61 | 1079900004 | Bushing | |
| 62 | 1079900006 | Bushing | |
| 63 | 1079900005 | Bushing | |
| 64 | 1040000288 | Bolt | |
| 66 | 1040200133 | Nut | |
| 67 | 1040200136 | Baffle | |
| 68 | 1040200139 | Baffle | |
| 72 | 1040200192 | Nut | |
| 73 | 1040300063 | Washer | |
| 74 | 1040200157 | Nut | |
| 75 | 1040200154 | Nut | |
| 76 | 1040200164 | Nut | |
| 77 | 00672303505010000 | Cold drawn precision tube assy | |
| 78 | 00672303505020000 | Cold drawn precision tube assy | |
| 79 | 00672303505030000 | Cold drawn precision tube assy | |
| 81 | 00672303505050000 | Cold drawn precision tube assy | |
| 87 | 00672303505110000 | Cold drawn precision tube assy | |
| 93 | 1140202779 | Nylon pressure pipe nylon | |
| 94 | 1140202781 | Nylon pressure pipe nylon | |
| 95 | 1140202782 | Nylon pressure pipe nylon | |
| 96 | 1001410154 | High temperature air pipeb/b3-32x1w-1400-40c°+232c° | |
| 97 | 1140211654 | Hose assy | |
| 98 | 1140202790 | Brake hose assy | |
| 103 | 1140202791 | Brake hose assy | |
| 104 | 1140202788 | Brake hose assy | |
| 106 | Front axle assy axle 2 | Front axle assy axle 2 | |
| 107 | Drive axle pre-assembled, non-steered, Hande intermediate axle | Drive axle pre-assembled, non-steered, hande intermediate axle | |
| 108 | Drive axle pre-assembled, non-steered, Hande rear axle | Drive axle pre-assembled, non-steered, hande rear axle | |
| 111 | Engine assy | Engine assy |
