Каталог запасных частей к технике: Zoomlion ZLJ5500V3. AIR BRAKE SYSTEM (AUXILIARY BRAKE) D00672303500000002Y
1
3
3
4
4
6
9
10
10
11
12
17
18
19
20
21
23
25
25
26
31
31
32
32
32
33
35
36
37
38
39
40
40
41
42
43
43
44
44
48
48
48
48
49
53
54
56
56
56
56
57
58
59
65
65
65
66
67
69
69
70
70
71
71
76
77
78
79
85
86
88
93
93
93
93
93
93
93
94
94
94
94
94
94
94
95
95
96
97
99
99
99
99
100
101
102
107
108
109
110
111
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00672303500000002 | 00672303500000002 | Air brake system | |
| 1 | 00671563500200000 | Air reservoir and valve block installation | |
| 3 | 1070500027 | 2 position 3 way solenoid valve | |
| 4 | 00672303500200000 | Pipe clamp installation | |
| 6 | 00671553500200000 | Auxiliary air reservoir installation | |
| 8 | 00672203500600000 | Air horn switch installation | |
| 9 | 00676533503200000 | Air horn installation | |
| 10 | 00676603503400000 | Pipe clamp | |
| 11 | 1990200169 | Pipe clamp | |
| 12 | 1070500043 | Stop valve | |

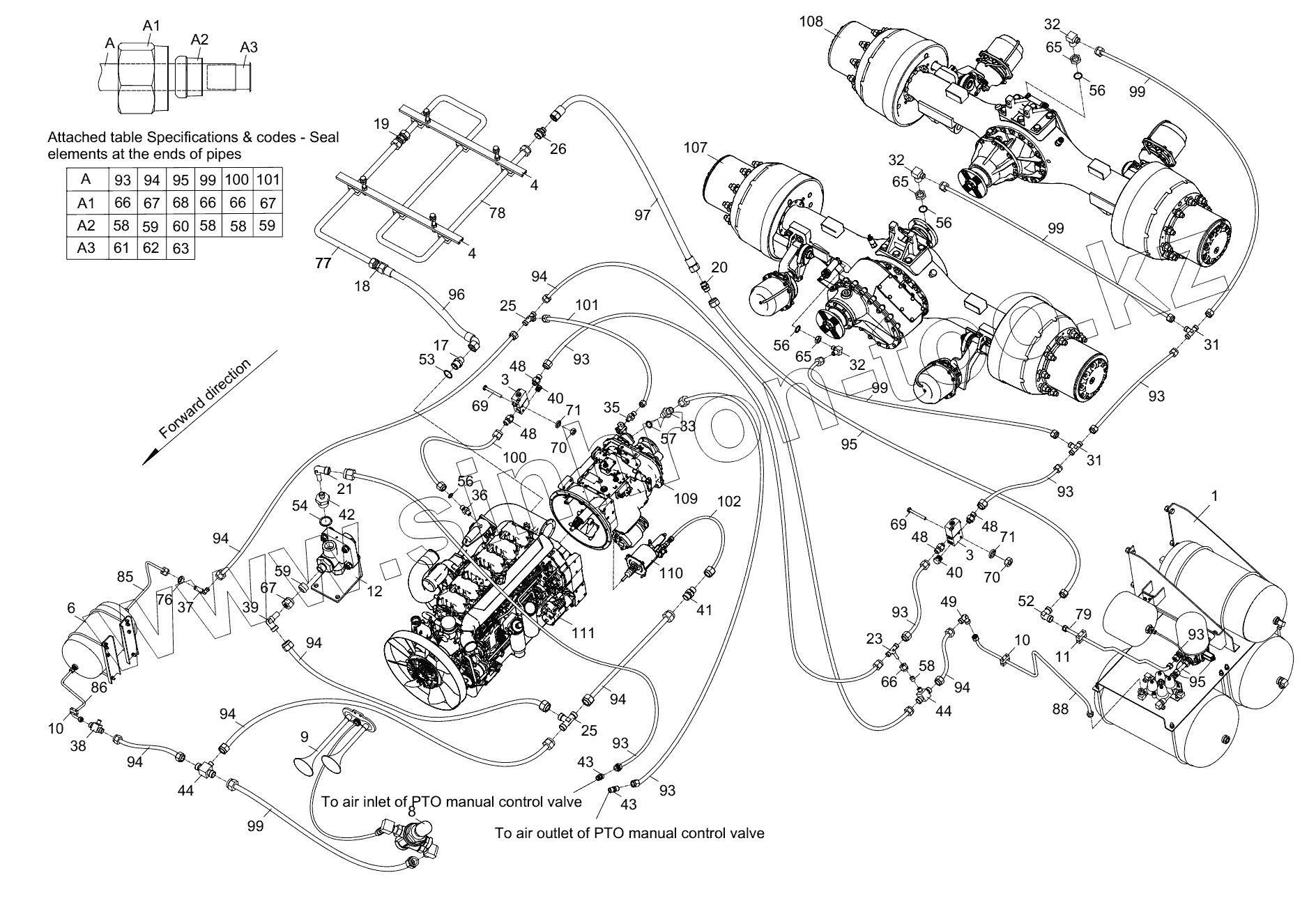

| 14 | 00672303500001010 | Schematic diagram, air brake system | |
| 16 | 202230005 | Loctite glue | |
| 17 | 1140100577 | Fitting | |
| 18 | 1140101026 | Pipe fitting | |
| 19 | 1140101065 | Pipe fitting | |
| 20 | 1140100948 | Fitting body | |
| 21 | 1140100911 | Fitting body 35 | |
| 23 | 1140100975 | Fitting body | |
| 25 | 1140100952 | Fitting body | |
| 26 | 00672303500001020 | Straight fitting | |
| 28 | 1140100953 | Fitting body | |
| 31 | 1140100930 | Fitting body | |
| 32 | 00676523501001020 | Elbow union | |
| 33 | 00676603500001160 | Straight fitting | |
| 35 | 00676603500001170 | Straight fitting | |
| 36 | 00672303500001030 | Straight fitting | |
| 37 | 1140100971 | Fitting body | |
| 38 | 00670403500001050 | Union tee | |
| 39 | 1140101619 | Fitting body 35 | |
| 40 | 1000200005 | Muffler | |
| 41 | 00676603500001150 | Straight fitting | |
| 42 | 00676433501201010 | Straight fitting | |
| 43 | 1140100951 | Fitting body | |
| 44 | 00676603520001020 | Union tee | |
| 48 | 00676413510401020 | End straight fitting | |
| 49 | 1140100955 | Fitting body 35 | |
| 53 | 1040300113 | Washer | |
| 54 | 1040300105 | Washer | |
| 56 | 1040300021 | Washer | |
| 57 | 1040300026 | Washer | |
| 58 | 1140100922 | Cutting sleeve | |
| 59 | 1140100931 | Cutting sleeve | |
| 60 | 1140100938 | Cutting sleeve | |
| 61 | 1079900004 | Bushing | |
| 62 | 1079900006 | Bushing | |
| 63 | 1079900005 | Bushing | |
| 65 | 1040200071 | Baffle | |
| 66 | 1040200133 | Nut | |
| 67 | 1040200136 | Baffle | |
| 68 | 1040200139 | Baffle | |
| 69 | 1040000128 | Bolt | |
| 70 | 1040200100 | Nut | |
| 71 | 1040300044 | Washer | |
| 72 | 1040200192 | Nut | |
| 73 | 1040300063 | Washer | |
| 74 | 1040200157 | Nut | |
| 76 | 1040200164 | Nut | |
| 77 | 00672303505010000 | Cold drawn precision tube assy | |
| 78 | 00672303505020000 | Cold drawn precision tube assy | |
| 79 | 00672303505030000 | Cold drawn precision tube assy | |
| 85 | 00672303505090000 | Cold drawn precision tube assy | |
| 86 | 00672303505100000 | Cold drawn precision tube assy | |
| 88 | 00672303505120000 | Cold drawn precision tube assy | |
| 93 | 1140202779 | Nylon pressure pipe nylon | |
| 94 | 1140202781 | Nylon pressure pipe nylon | |
| 95 | 1140202782 | Nylon pressure pipe nylon | |
| 96 | 1001410154 | High temperature air pipeb/b3-32x1w-1400-40c°+232c° | |
| 97 | 1140211654 | Hose assy | |
| 99 | 1140209248 | Brake hose assy | |
| 100 | 1140209241 | Brake hose assy | |
| 101 | 1140202786 | Brake hose assy | |
| 102 | 1140202795 | Brake hose assy | |
| 107 | Drive axle pre-assembled, non-steered, Hande intermediate axle | Drive axle pre-assembled, non-steered, hande intermediate axle | |
| 108 | Drive axle pre-assembled, non-steered, Hande rear axle | Drive axle pre-assembled, non-steered, hande rear axle | |
| 109 | transmission assy | Transmission assy | |
| 110 | Clutch booster cylinder | Clutch booster cylinder | |
| 111 | Engine assy | Engine assy |
