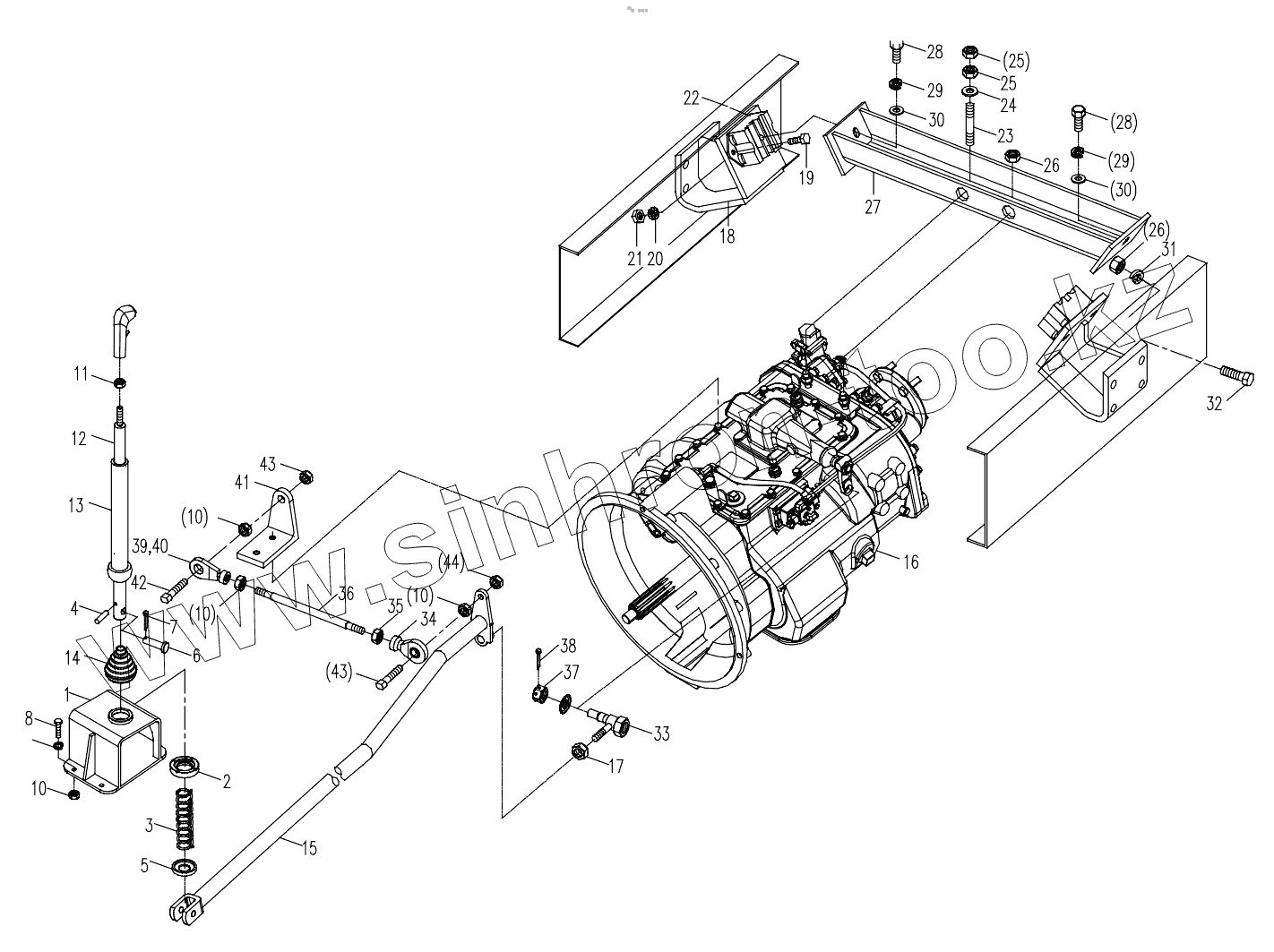

Каталог запасных частей к технике: Zoomlion ZLJ5480JQZV3. TRANSMISSION INSTALLATION AND ITS CONTROLS D00672401700000000Y
1
2
3
4
5
6
7
8
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
26
27
28
28
29
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00670401700200001 | Range selector seat | |
| 2 | 00676601700401060 | Spring seat | |
| 3 | 00676601700401040 | Spring | |
| 4 | 1040500107 | Pin | |
| 5 | 00676601700401050 | Spring base | |
| 6 | 1040500109 | Pin | |
| 7 | 1040500075 | Pin | |
| 8 | 1040000122 | Bolt | |
| 9 | 1040300067 | Washer | |
| 10 | 1040200113 | Nut | |
| 11 | 1040200088 | Nut | |
| 12 | 00671421720400000 | Range selector assy | |
| 13 | 00671551700001010 | Protective rubber hose | |
| 14 | 00671551700001020 | Protective rubber jacket | |
| 15 | 00672401700200000 | Drag rod assy | |
| 16 | 1030300142 | Transmission | |
| 17 | 1040200161 | Nut | |
| 18 | 00676601700210001 | Bracket | |
| 19 | 1040000288 | Bolt | |
| 20 | 1040300063 | Washer | |
| 21 | 1040200192 | Nut | |
| 22 | 1001500000 | Front bearing for engine | |
| 23 | 00676601700201010 | Stud | |
| 24 | 1040300064 | Washer 16-140HV GB/T96.1-2002 | |
| 25 | 1040200110 | Nut | |
| 26 | 1040200098 | Nut | |
| 27 | 00672401700400000 | Crossbeam assy | |
| 28 | 1040000069 | Bolt | |
| 29 | 1040300054 | Washer | |
| 30 | 1040300081 | Washer | |
| 31 | 1040300065 | Washer | |
| 32 | 1040000065 | Bolt | |
| 33 | 1050000000 | knuckle bearing of shifting rocker arm | |
| 34 | 1050000003 | Rod-end knuckle bearing | |
| 35 | 00676411700401010 | Nut | |
| 36 | 00676601700401030 | Double-ended stud | |
| 37 | 1040200165 | Nut | |
| 38 | 1040500065 | Pin | |
| 39 | 1050000002 | Rod-end knuckle bearing | |
| 40 | 204110014 | Lithium-based Grease | |
| 41 | 00676601700401020 | Knuckle bearing bracket | |
| 42 | 00676601700401080 | Knuckle bearing bolt | |
| 43 | 1040200145 | Гайка M10-8 | |
| 44 | 202230016 | Loctite glue | |
| 45 | 1990200008 | Nylon strap | |
| 46 | 204050005 | Gear oil for heavy-duty vehicle | |
| 47 | 00671401710001010 | Warning sign |
