Каталог запасных частей к технике: Zoomlion ZLJ5480JQZV3. TRANSMISSION (REAR COVER ASSY) D1030300142_101250Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

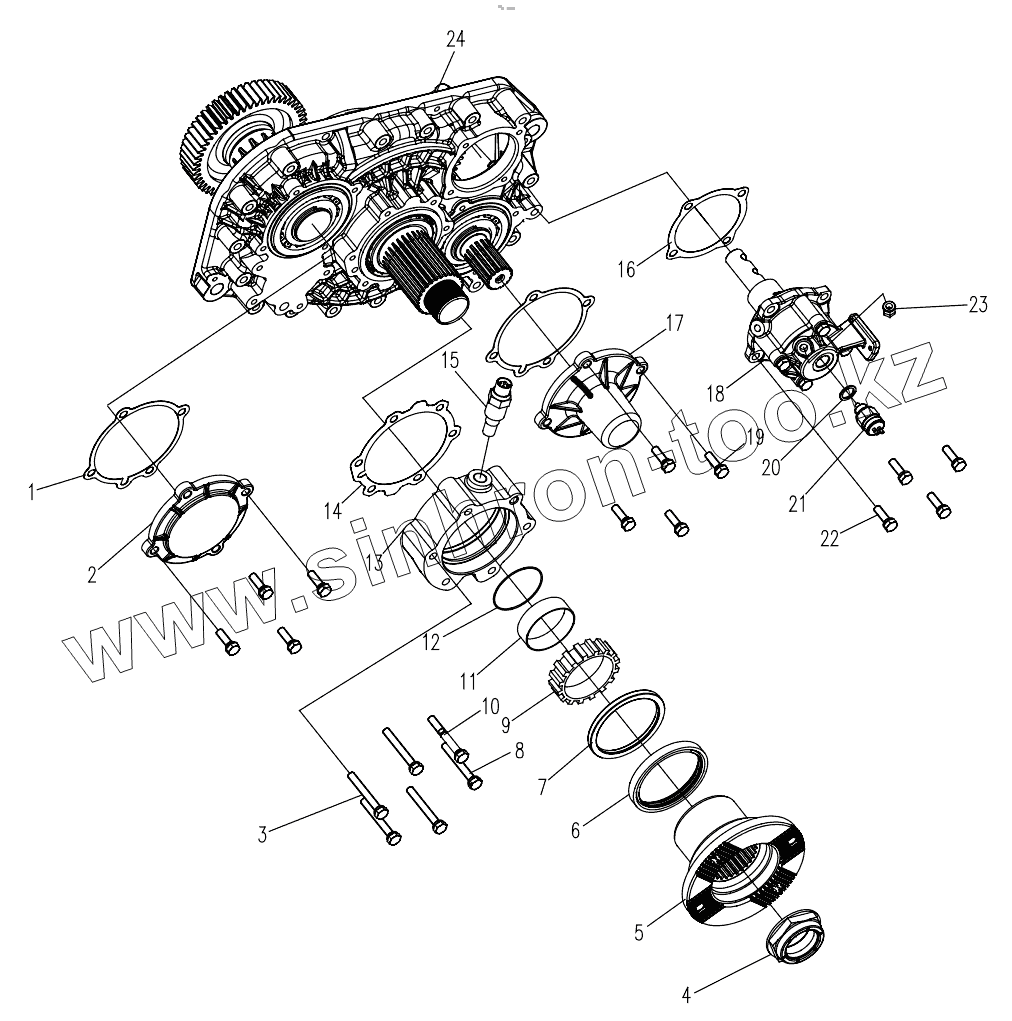

Позиция на иллюстрации Заводской номер детали Название детали
1 JSD180-1707053 Intermediate shaft cover gasket in auxiliary tank of transmission
2 JSD180-1707052 Intermediate shaft cover in auxiliary tank of transmission
3 Q1421075 Hexagon bolt and spring washer assembly
4 F96006 Flange nut
5 JS220-1707159-1 Flange
6 19109 Oil seal
7 C01032 Oil seal of main shaft rear bearing cover
8 C09033 Small hexagon bolt with hole and spring washer assembly
9 JS180-1701157-6 Odometer rotor
10 A-C09009 Bolt assy
11 JS220-1707111 Drive gear bushing of odometer
12 12JS160T-1707112 O-ring
13 RTD-11609A-1707155 Rear bearing cover of main shaft
14 RTD-11609A-1707156 Main shaft rear bearing cover gasket in auxiliary tank of transmission
15 C03054-16 Odometer rotor
16 14347 Gasket
17 JSD180-1707054 Extensional intermediate shaft cover
18 JS180-1707060-6 Cylinder assy in auxiliary tank of transmission
19 A-C09008 Bolt assy
20 Q72318T3 Seal ring
21 79100710069 Pressure switch
22 Q1421032M Precoated hexagon bolt and spring washer assembly
23 12845 90°elbow union
24 JSD180-1707015 Rear cover housing body
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
