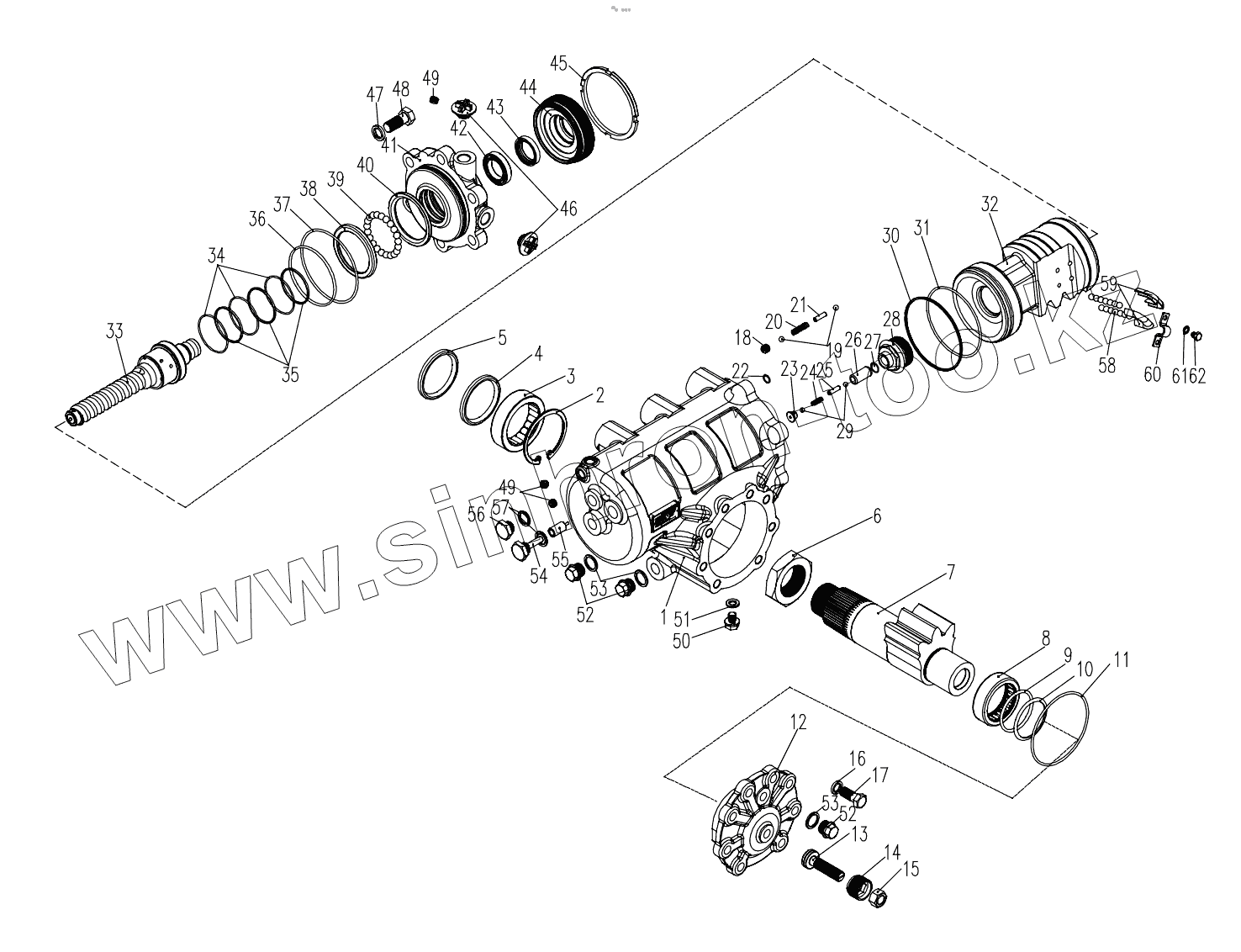

Каталог запасных частей к технике: Zoomlion ZLJ5480JQZV3. STEERING GEAR D1032300045-102262Y
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
51
52
52
53
53
54
55
56
57
58
59
60
61
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z11-3411101 | Housing | |
| 2 | Q43085 | Circlip | |
| 3 | Z07-3411062 | Roller bearing | |
| 4 | Z03-3411107 | High pressure seal | |
| 5 | D05-3411012 | Seal ring - steering arm shaft | |
| 6 | D07-3411014 | Nut - steering arm shaft | |
| 7 | Z06-3411411 | Steering arm shaft | |
| 8 | D50-3411424 | Needle bearing | |
| 9 | C21-3411102 | High pressure seal ring | |
| 10 | C21-3411103 | Retaining ring– high pressure seal ring | |
| 11 | Q73431115C | O-type rubber seal ring | |
| 12 | Z11-3411421 | Side cover | |
| 13 | D13-3411412 | Adjusting bolt – steering arm shaft | |
| 14 | A01-3411413 | Locknut - steering arm shaft | |
| 15 | Q341B14 | Hexagon nut – adjusting bolt | |
| 16 | Q40312 | Spring washer | |
| 17 | Q151B1230TF2 | Hex bolt | |
| 18 | D07-3411288 | Nut | |
| 19 | Q9660705 | Steel ball | |
| 20 | C21-3411284 | Spring | |
| 21 | D07-3411287 | Support tube | |
| 22 | Q7341913C | O-type rubber seal ring | |
| 23 | D201-3411293 | Center pressure relief valve seat | |
| 24 | D17-3411284 | Spring | |
| 25 | D17-3411287 | Support tube | |
| 26 | D201-3411292 | Pressure relief valve body | |
| 27 | Q43714 | Retaining ring for shaft | |
| 28 | D07-3411291 | Cap - steering nut | |
| 29 | Q9660705 | Steel ball | |
| 30 | Z06-3411283 | Seal ring | |
| 31 | Z06-3411282 | O-type rubber seal ring | |
| 32 | Z13-3411281 | Steering nut | |
| 33 | Z11-3411220 | Steering threaded rod assy | |
| 34 | D07-3411257 | O-type rubber seal ring | |
| 35 | D07-3411258 | Seal ring | |
| 36 | Q7343190C | O-type rubber seal ring | |
| 37 | Q73431120C | O-type rubber seal ring | |
| 38 | D39-3411212 | Outer ring – valve body | |
| 39 | D17-3411213 | Steel ball | |
| 40 | D39-3411211 | Outer ring – upper cover | |
| 41 | Z06-3411251 | Valve body | |
| 42 | 61906 | Single row radial ball bearing | |
| 43 | D04-3411272 | Oil seal | |
| 44 | Z06-3411271 | Upper cover | |
| 45 | D39-3411217 | Check nut – upper cover | |
| 46 | D07-3411988 | Oil inlet/outlet rubber plug | |
| 47 | Q40314 | Spring washer | |
| 48 | Q151B1435TF2 | Hex bolt | |
| 49 | A01-3411108 | Conical plug | |
| 50 | C02-3411016 | Screw | |
| 51 | C02-3411017 | Copper washer | |
| 52 | D07-3411112 | Hexagon plug | |
| 53 | JB982-77 18 | Seal ring | |
| 54 | E07-3411042 | Guide rod | |
| 55 | D30-3411041 | Top rod | |
| 56 | C22-3411053 | Hexagon socket plug | |
| 57 | JB982-77 16 | Seal ring | |
| 58 | A01-3411201 | Steel ball | |
| 59 | D17-3411202 | Conduct pipe of steel ball | |
| 60 | A01-3411203 | Conduct pipe clamp | |
| 61 | Q40406 | Spring washer | |
| 62 | Q150B068 | Hex bolt |
