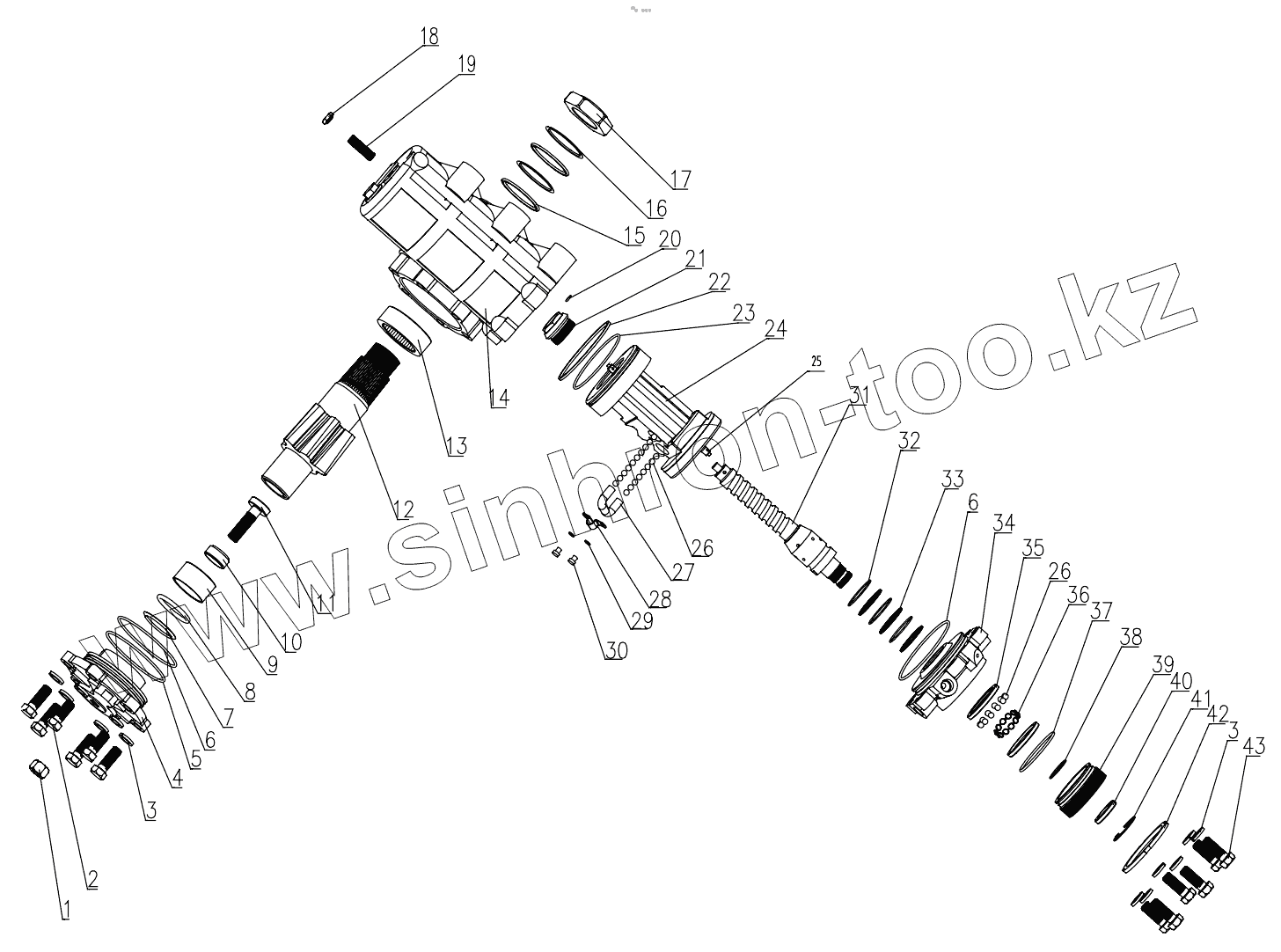

Каталог запасных частей к технике: Zoomlion ZLJ5480JQZV3. STEERING GEAR D1032300045_100000Y
1
2
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Q341B16 | Hexagon nut | |
| 2 | Q151B1435 | Hex bolt | |
| 3 | Q40314 | Spring washer | |
| 4 | GX110C-3411321PYT | Side cover | |
| 5 | GX110C-3411303 | Excircle retainer ring of side cover | |
| 6 | GX110C-3411112 | O-ring | |
| 7 | GX110C-3411301 | Retaining ring | |
| 8 | GX110C-3411302 | O-ring | |
| 9 | GX110C-3411322 | Compound bearing | |
| 10 | GX90C-3411313 | Arm shaft plug | |
| 11 | GX90C-3411314 | Adjusting screw | |
| 12 | ZJ120-3411411T | Rocker arm shaft | |
| 13 | ZJ120C-3411302 | Needle bearing without inner race | |
| 14 | ZJ120C-3411301 | Housing | |
| 15 | ZJ120-3411402 | Seal ring 2 in output end of rocker arm shaft | |
| 16 | ZJ120-3411401 | Seal ring 1 in output end of rocker arm shaft | |
| 17 | ZJ120-3411004 | Hex locknut | |
| 18 | 3401F-034 | Sealing nut | |
| 19 | ZJ120C-3411308 | Lead limit screw | |
| 20 | GB3452.1-92 | O-ring | |
| 21 | GX100D-3411112 | Plug | |
| 22 | GX110C-3411102 | Seal ring of gear rack piston | |
| 23 | GX110C-3411103 | O-ring | |
| 24 | ZJ120C-3411181 | Gear rack piston | |
| 25 | GX100C-3411135JN | Limit valve | |
| 26 | GB308-89 | Steel ball | |
| 27 | GX100B-3411052-77 | Conduct pipe of steel ball | |
| 28 | GX100B-3411053-20 | Conduct pipe clamp | |
| 29 | Q40306 | Spring washer | |
| 30 | Q2180608 | Hexagon socket bolt | |
| 31 | ZJ120C-3411110 | Valve body assy | |
| 32 | ZJ120C-3411153 | O-ring | |
| 33 | ZJ120C-3411152 | Seal ring | |
| 34 | ZJ120C-3411151 | Front cover | |
| 35 | GX90C-3411112 | Bearing outer ring | |
| 36 | GX90C-3411114 | Steel ball holder | |
| 37 | GB3452.1-92 | O-ring | |
| 38 | ZJ120C-3411155 | Star-shaped ring | |
| 39 | ZJ120C-3411171 | Plug | |
| 40 | GX90A-3401111 | Double lip skeleton seal | |
| 41 | Q43040 | Circlip for holes | |
| 42 | GX100B-3411166-77 | Check nut - upper cover | |
| 43 | Q151B1440 | Hex bolt |
