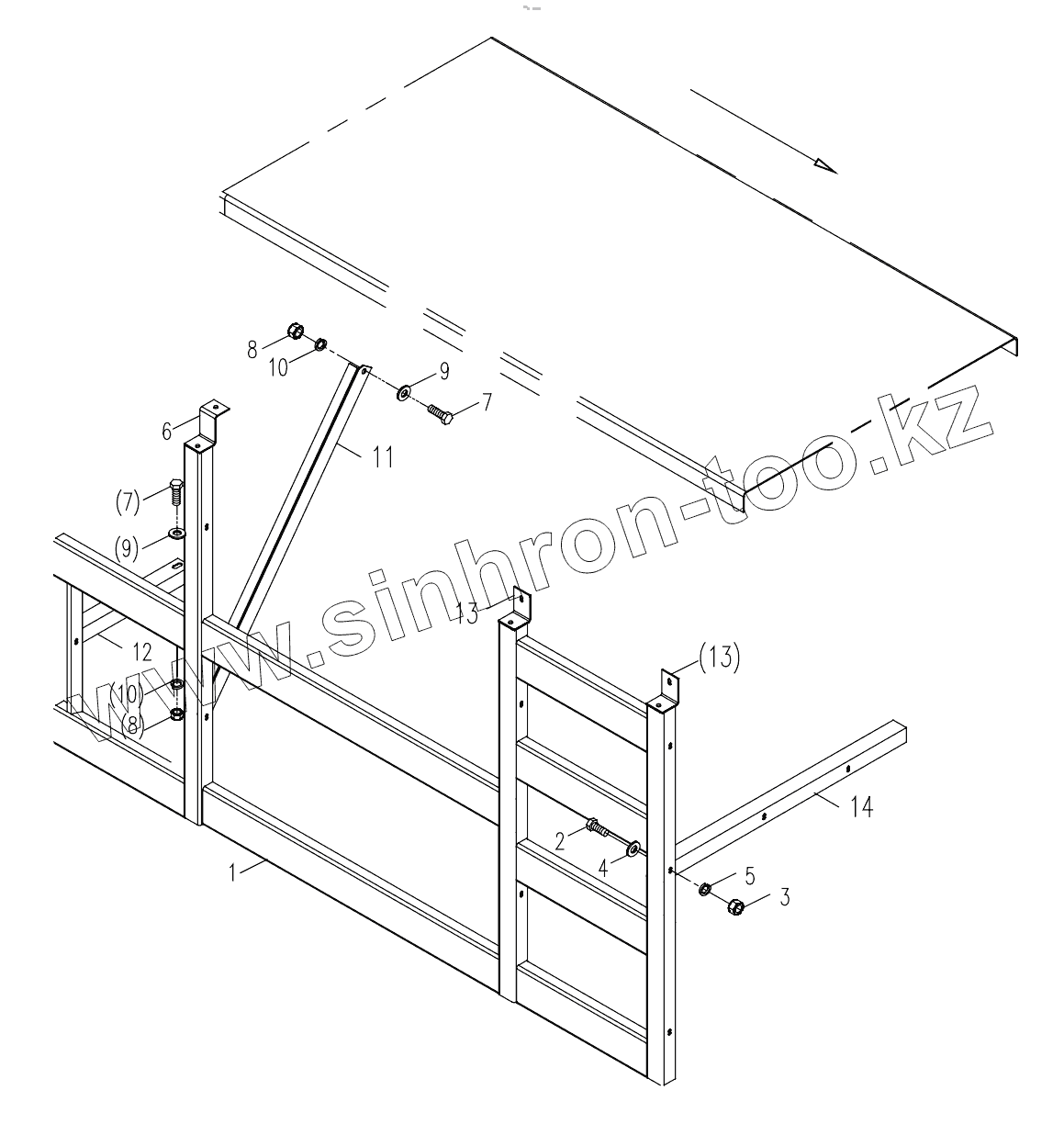

Каталог запасных частей к технике: Zoomlion ZLJ5480JQZV3. RIGHT INTERMEDIATE GUARD RAIL D00672407900400000Y
