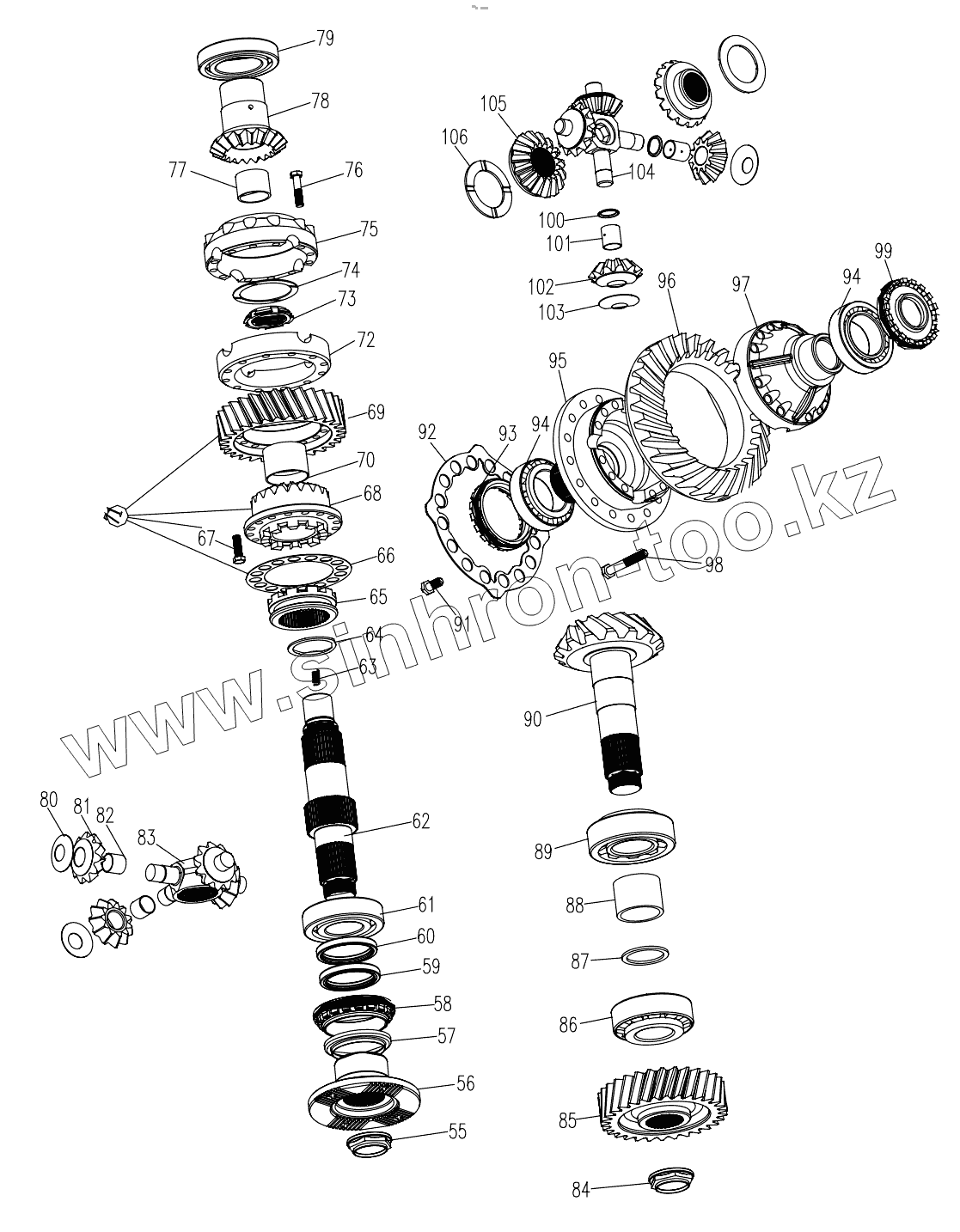

Каталог запасных частей к технике: Zoomlion ZLJ5480JQZV3. DRIVE AXLE STEERED (MAIN REDUCER) D1030100872_100003Y
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
94
95
96
97
98
99
100
101
102
103
104
105
106
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 55 | B2402079D | Hexagon nut | |
| 56 | B2502078A-D | Drive flange | |
| 57 | B2402077D | Dust cover | |
| 58 | B2502053-D | Screw ring | |
| 59 | B2402050D | Oil seal | |
| 60 | B2402030D | Oil seal | |
| 61 | GB/T276-1994 | Anti-friction bearing | |
| 62 | B2502061DB | Main shaft | |
| 63 | A2504077 | Spring | |
| 64 | B2502062DB | Thrust washer | |
| 65 | B2502052D | Engaging sleeve | |
| 66 | B2502083D | Lock plate | |
| 67 | A2504052A | Bolt | |
| 68 | B2502082D | Straight-tooth bevel gear | |
| 69 | B2502081D | Drive cylindrical gear | |
| 70 | B2502063D | Shaft sleeve | |
| 71 | B2502080D | Compound gear | |
| 72 | B2502066D | Differential housing | |
| 73 | B2502074DB | Grooved nut | |
| 74 | B2502072D | Thrust washer | |
| 75 | B2502067D | Differential housing | |
| 76 | B2502075D | Bolt | |
| 77 | B2502073D | Shaft sleeve | |
| 78 | B2502071D | Thru shaft gear | |
| 79 | GB/T276-1994 | Anti-friction bearing | |
| 80 | B2502069D | Spherical washer | |
| 81 | B2502064D | Planetary gear | |
| 82 | B2502068D | Bushing | |
| 83 | B2502065DA | Cross shaft | |
| 84 | B2402079D | Hexagon nut | |
| 85 | B2502023D | Driven cylindrical gear | |
| 86 | GB/T297-94 | Conical roller bearing | |
| 87 | 2402074D | Spacing ring | |
| 88 | B2502024D | Spacer sleeve | |
| 89 | GB/T297-94 | Conical roller bearing | |
| 90 | B2502022DG | Main driving gear | |
| 91 | B2402096D | Bolt | |
| 92 | B2402085D | Lock plate | |
| 93 | B2402100D | Right screw ring assy | |
| 94 | GB/T297-94 | Conical roller bearing | |
| 95 | B2402084D | Differential housing | |
| 96 | B2502031DG | Main driving gear | |
| 97 | B2402095D | Differential housing | |
| 98 | B2402097D | Bolt | |
| 99 | B2402083D | Left screw ring | |
| 100 | B2402094D | Washer | |
| 101 | B2402089D | Bushing | |
| 102 | B2402091D | Planetary gear | |
| 103 | B2402088D | Spherical washer | |
| 104 | B2402087D | Cross shaft | |
| 105 | B2402093D | Axle shaft gear | |
| 106 | B2402092D | Thrust washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
