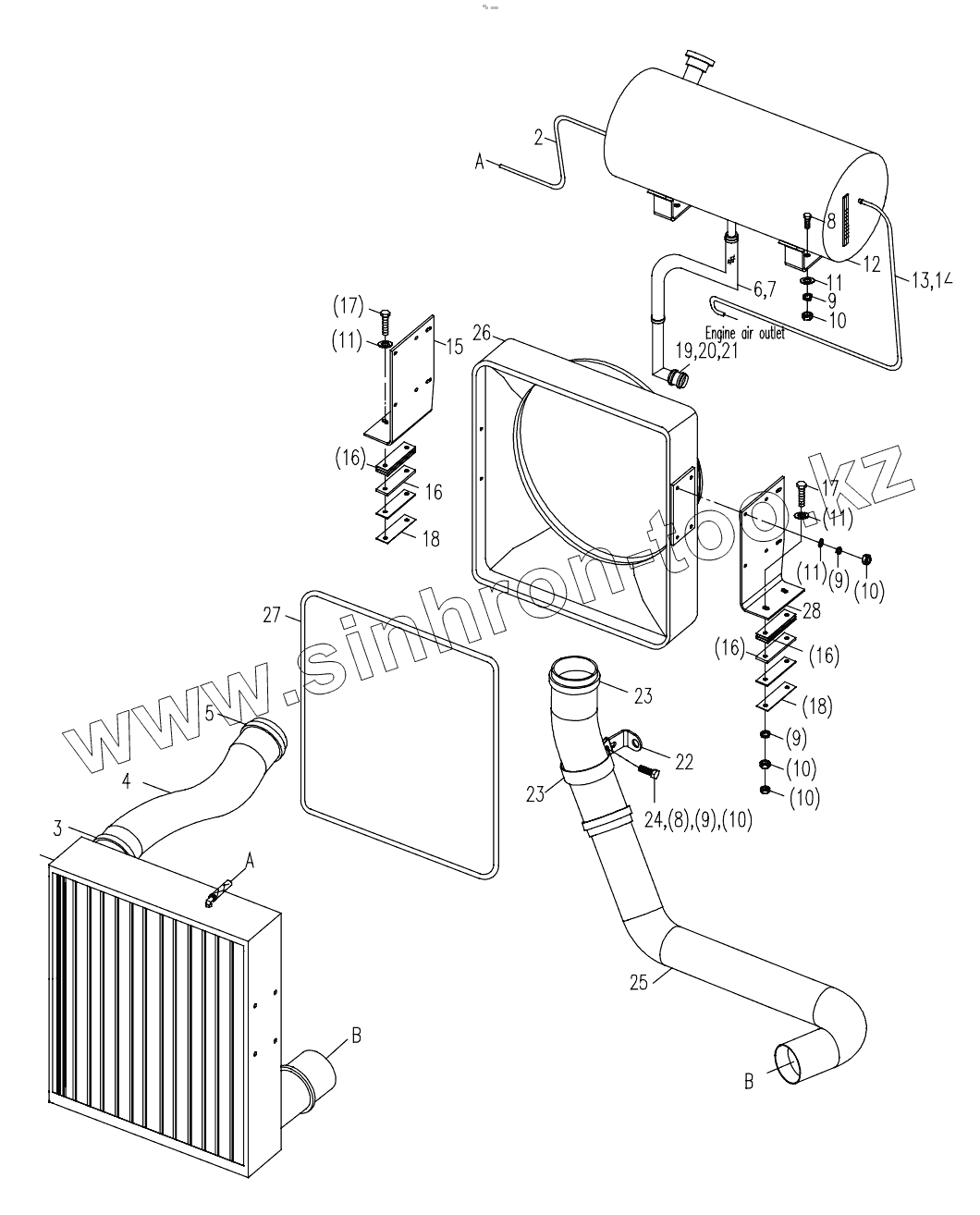

Каталог запасных частей к технике: Zoomlion ZLJ5480JQZV3. COOLING SYSTEM D00672401300000000Y
2
3
4
5
6
7
8
8
9
9
9
9
10
10
10
10
10
11
11
11
11
12
13
14
15
16
16
16
16
17
17
18
18
19
20
21
22
23
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1000300019 | Radiator assy | |
| 2 | 00672401300001040 | Water tank hose | |
| 3 | 1990200545 | T type clamp | |
| 4 | 1000300398 | Water outlet pipe for engine | |
| 5 | 1990200536 | T-clamp | |
| 6 | 00672401300001050 | Water tank hose | |
| 7 | 1990200520 | Worm clamp | |
| 8 | 1040000267 | Bolt | |
| 9 | 1040300063 | Washer | |
| 10 | 1040200192 | Nut | |
| 11 | 1040300094 | Washer | |
| 12 | 1000300312 | Expansion tank | |
| 13 | 00672401300001060 | Water tank hose | |
| 14 | 1990200527 | Worm clamp | |
| 15 | 00672401300001020 | Right bracket for radiator | |
| 16 | 1009900628 | Rubber shock pad | |
| 17 | 1040000969 | Bolt | |
| 18 | 00672401300001030 | Pad | |
| 19 | 00671551300001070 | Three-way elbow | |
| 20 | 1990200519 | Worm clamp | |
| 21 | 00672401300001070 | Water tank hose | |
| 22 | 00676601300001020 | Bracket | |
| 23 | 00671501300001030 | Pipe clamp | |
| 24 | 1040000018 | Bolt | |
| 25 | 1000300397 | Water outlet pipe of water tank | |
| 26 | 00672401300200000 | Air deflector assy | |
| 27 | 1990300007 | Rubber sealing strip | |
| 28 | 00672401300001010 | Left bracket for radiator | |
| 29 | 202270028 | 5 in 1 environment-friendly antifreeze | |
| 30 | 1990200005 | Nylon strap |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
