Каталог запасных частей к технике: Zoomlion ZLJ5480JQZV3. BOARDING AND ITS INSTALLATION D00672405800000000Y

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано ZLJ5480JQZV3 SPECIAL PURPOSE CHASSIS FOR TRUCK CRANE D00672400000000000Y INTERCOOLING SYSTEM D00672400900000000Y ENGINE AND SUSPENSION SYSTEM D00672401000000000Y FUEL SUPPLY SYSTEM D00672401100000000Y FUEL COARSE FILTER PRE-ASSEMBLED D00671441100200000Y EXHAUST SYSTEM D00672401200000001Y RAINPROOF CAP ASSY D00670131200200000Y COOLING SYSTEM D00672401300000000Y AIR INTAKE SYSTEM D00670711400000000Y CLUTCH INSTALLATION AND ITS CONTROLS D00671621600000000Y CLUTCH ASSY D1030500000_100005Y TRANSMISSION INSTALLATION AND ITS CONTROLS D00672401700000000Y TRANSMISSION (AXLE 1 ASSY) D1030300142_101250Y TRANSMISSION (OPERATING DEVICE ASSY) D1030300142_101250Y TRANSMISSION (LEFT INTERMEDIATE SHAFT ASSY) D1030300142_101250Y TRANSMISSION (UPPER COVER ASSY) D1030300142_101250Y TRANSMISSION (AXLE 2 ASSY) D1030300142_101250Y TRANSMISSION (REAR COVER ASSY) D1030300142_101250Y TRANSMISSION (REAR COVER ASSY) D1030300142_101250Y TRANSMISSION (TRANSMISSION HOUSING BODY ASSY. AND ITS ACCESSORIES) D1030300142_101250Z TRANSMISSION (TRANSMISSION HOUSING BODY ASSY. AND ITS ACCESSORIES) D1030300142_101250Z TRANSMISSION (TRANSMISSION HOUSING BODY ASSY. AND ITS ACCESSORIES) D1030300142_101250Z DRIVE SHAFT ARRANGEMENT D00672402200000000Y DRIVE SECTION 1 D00672402200200000Y DRIVE SECTION 2 D00672402200400000Y DRIVE SECTION 3 D00672402200600000Y DRIVE AXLE I (STEERABLE) PRE-ASSEMBLED D00672402300200000Y DRIVE AXLE STEERED (BRAKE) D1030100872_100003Y DRIVE AXLE STEERED (AXLE BODY) D1030100872_100003Y DRIVE AXLE STEERED (HUB REDUCER) D1030100872_100003Y DRIVE AXLE STEERED (MAIN REDUCER) D1030100872_100003Y DRIVE AXLE STEERED (MAIN REDUCER) D1030100872_100003Y DRIVE AXLE II (STEERABLE) PRE-ASSEMBLED D00672402300400000Y DRIVE AXLE STEERED (BRAKE) D1030100873_100003Y DRIVE AXLE STEERED (AXLE BODY) D1030100873_100003Y DRIVE AXLE STEERED (HUB REDUCER) D1030100873_100003Y DRIVE AXLE STEERED (MAIN REDUCER) D1030100873_100003Y AXLE 1 ASSY. D00672403000200000Y STEERED AND NON-DRIVEN AXLE D1030100874_102293Y AXLE 2 ASSY D00672403000400000Y STEERED AND NON-DRIVEN AXLE D1030100875_102293Y WHEEL ASSY. D00672403100000000Y FRONT SUSPENSION D00672402900200000Y REAR SUSPENSION D00672402900400000Y STEERING MECHANISM D00672403400200000Y STEERING GEAR D1032300045-102262Y STEERING GEAR D1032300045_100000Y QC40/15-WP10 STEERING PUMP D1032300126_102194Y STEERING OIL RESERVOIR D00672303400410001Y OIL FILTER D1010600004_102124Y HYDRAULIC AIR FILTER D1010500001_102124Y STEERING BOOSTER CYLINDER D00677208410800000Y AIR CONDITIONING SYSTEM D00671557620000000Y HEATER D00671407700000000Y DRIVER’S CAB INSTALLATION D00672404900000000Y DRIVER’S CAB (BUMPER, PULLEY HOUSING AND ITS ACCESSORIES) D1130000435_102383Y DRIVER’S CAB (STEERING COLUMN BRACKET ASSY.) D1130000435_102383Y DRIVER’S CAB (VEHICLE DOOR) D1130000435_102383Y DRIVER'S CAB (VEHICLE BODY AND ITS INTERIOR EQUIPMENT D1130000435_102383Y DRIVER'S CAB (PEDAL BRACKET ASSY.) D1130000435_102383Y DRIVER'S CAB (INSTRUMENT CONSOLE AND ITS ACCESSORIES) D1130000435_102383Y DRIVER'S CAB (CARPET ASSY. AND ITS ACCESSORIES) D1130000435_102383Y DRIVER'S CAB (HEAT INSULATING CUSHION ASSY.) D1130000435_102383Y DRIVER'S CAB (L/R REAR OUTSIDE MIRROR AND ITS SUPPORT ROD ASSY.) D1130000435_102383Y DRIVER'S CAB (SWITCH ASSY.) D1130000435_102383Y DRIVER'S CAB (DECORATIVE PLATE AND ITS ACCESSORIES ASSY.) D1130000435_102383Y DRIVER'S CAB (DECORATIVE IRON BRACKET) D1130000435_102383Y DRIVER'S CAB (HEATER AND ITS ACCESSORIES) D1130000435_102383Y DRIVER'S CAB (FRONT/REAR WINDSHIELD GLASS ASSY.) D1130000435_102383Y DRIVER'S CAB (WIRE HARNESS ASSY. OF DRIVER’S CAB) D1130000435_102383Y DRIVER'S CAB (WINDSHIELD WIPER SYSTEM) D1130000435_102383Y DRIVER'S CAB (BRAKE SYSTEM) D1130000435_102383Y DRIVER'S CAB (SEAT) D1130000435_102383Y ENGINE HOUSING INSTALLATION ASSY. D00672405100000000Y PLATFORM ASSY D00672405600000001Y SPARE TIRE INSTALLATION D00672405500000000Y BOARDING AND ITS INSTALLATION D00672405800000000Y LEFT INTERMEDIATE GUARD RAIL D00672407900200000Y RIGHT INTERMEDIATE GUARD RAIL D00672407900400000Y TOOLBOX INSTALLAITON D00672409400200000Y AIR BRAKE SYSTEM D00672403500000000Y AIR RESERVOIR AND VALVE BLOCK ASSY. D00672403501000001Y ELECTRICAL SYSTEM – CHASSIS FRAME D00672406300000000Y

1

2

3

3

4

5

6

7

7

8

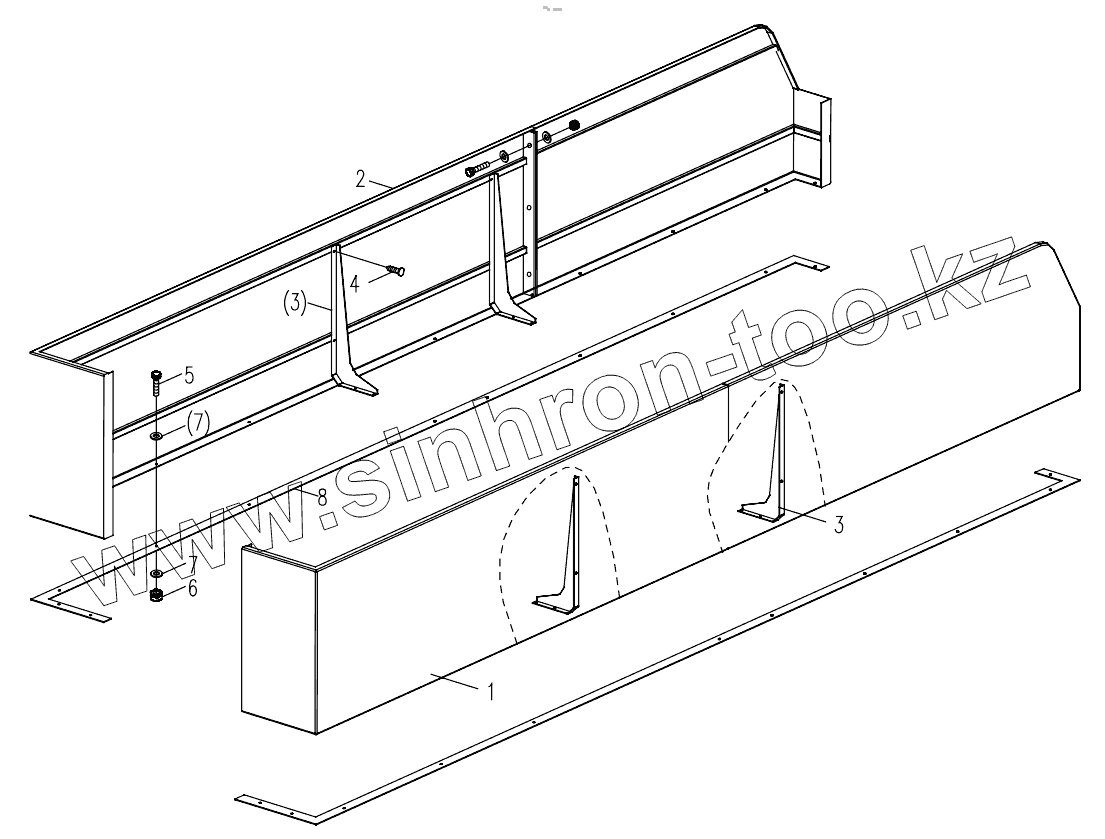

Позиция на иллюстрации	Заводской номер детали		Название детали
1	1991900260		Left boarding
2	1991900261		Right boarding
3	00671555800001010		Bracket
4	1040100177		Screw
5	1040000362		Bolt
6	1040200111		Nut
7	1040300051		Washer
8	00671555800001020		Rubber pad

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
