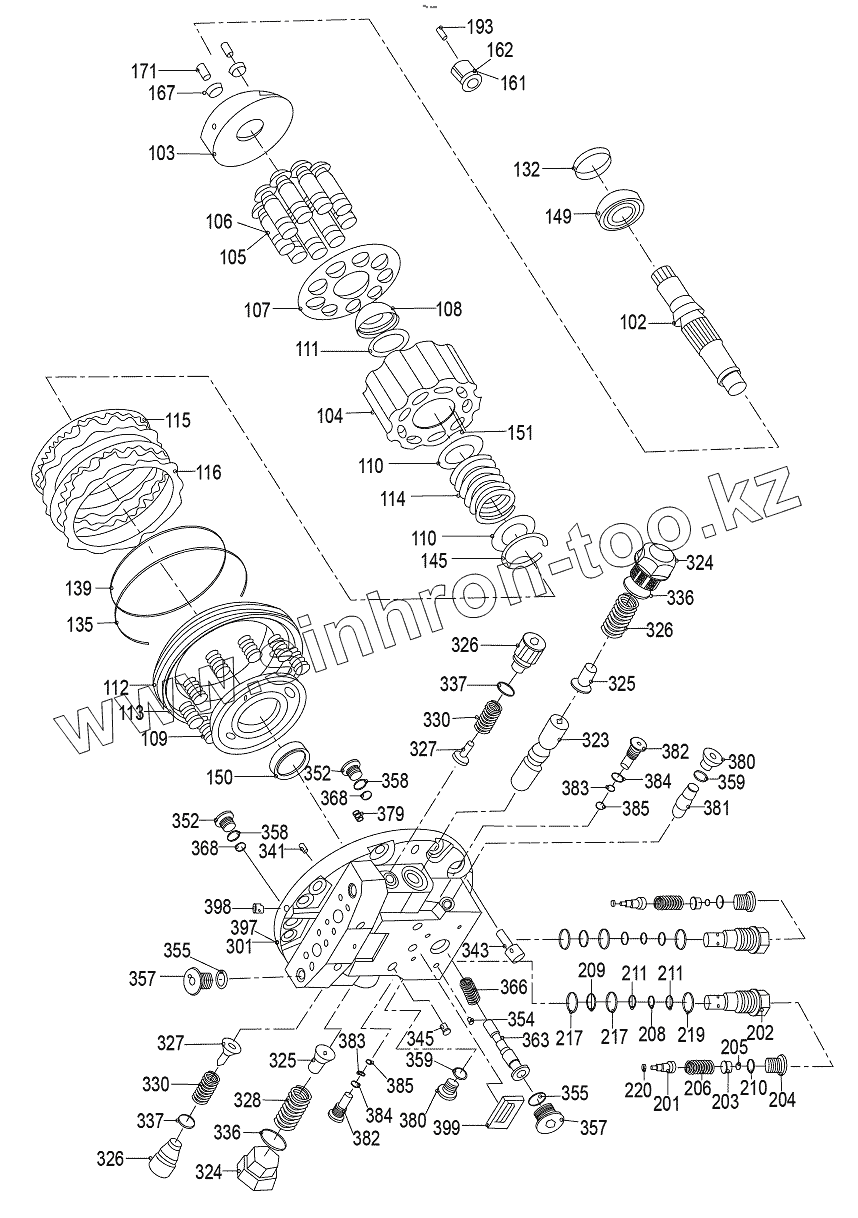

Каталог запасных частей к технике: Zoomlion ZE205E. Travel Motor&Reduction Gear
105
106
104
107
108
110
110
111
114
145
151
161
162
102
103
109
112
113
115
116
132
135
139
149
150
167
171
193
201
202
203
204
205
206
208
209
210
211
211
217
217
219
220
301
323
324
324
325
325
326
326
326
327
327
328
330
330
336
336
337
337
352
352
354
355
355
357
357
358
358
359
359
363
366
368
368
379
380
380
382
382
383
383
384
384
385
385
397
398
399
341
343
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| A.... | 1019801195 | Piston Ass’y | |
| 105 | 1019801188 | Piston | |
| 106 | 1019801189 | Shoe | |
| 104 | 1019801187 | Cylinder-Block | |
| 107 | 1019801190 | Retain | |
| 108 | 1019801191 | Thrust-Ball | |
| 110 | 1019801229 | Washer | |
| 111 | 1019801193 | Collar | |
| 114 | 1019801194 | Spring | |
| 145 | 1019801262 | Retaining-Ring | |
| 151 | 1019801246 | Needle-Roller | |
| B.. | 1019801094 | Piston | |
| 161 | 1019801095 | Piston | |
| 162 | 1019801093 | Shoe | |
| 102 | 1019801185 | Shaft | |
| 103 | 1019801186 | Swash-Plate | |
| 109 | 1019801192 | Timing-Plate | |
| 112 | 1019801209 | Piston | |
| 113 | 1019801210 | Spring | |
| 115 | 1019801211 | Friction-Plate | |
| 116 | 1019801013 | Mating Plate | |
| 132 | 1019801378 | Oil-Seal | |
| 135 | 1019801212 | O-Ring | |
| 139 | 1019801213 | O-Ring | |
| 149 | 1019801196 | Deep Groove Ball-Bearing | |
| 150 | 1019801197 | Deep Groove Ball-Bearing | |
| 167 | 1019801198 | Pivot | |
| 171 | 1019801199 | Parallel-Pin | |
| 193 | 1019801096 | Spring | |
| C. | 1019801202 | Relief-Valve | |
| A.. | 1019801208 | Valve Kit | |
| 201 | 1019801203 | Valve | |
| 202 | 1019801204 | Sleeve | |
| 203 | 1019801205 | Spring-Retainer | |
| 204 | 1019801206 | Plug | |
| 205 | 1019801018 | Shim | |
| 206 | 1019801207 | Spring | |
| 208 | 1019801250 | O-Ring | |
| 209 | 1019801252 | O-Ring | |
| 210 | 1019801251 | O-Ring | |
| 211 | 1019801259 | Back Up-Ring | |
| 217 | 1019801260 | Back Up-Ring | |
| 219 | 1019801254 | O-Ring | |
| 220 | 1019801377 | Piston Seal | |
| D. | 1019801220 | Control Valve Ass’y | |
| A.. | 1019801222 | Rear-Flange Ass’y | |
| A... | 1019801223 | Rear Flange Kit | |
| 301 | 1019801221 | Rear Flange | |
| 323 | 1019801214 | Spool | |
| 281 | 1019801217 | Piston | |
| 324 | 1019801010 | Plug | |
| 325 | 1019801017 | topper | |
| 326 | 1019801014 | Plug | |
| 327 | 1019801015 | Valve | |
| 328 | 1019801011 | Spring | |
| 330 | 1019801016 | Spring | |
| 336 | 1019801255 | O-Ring | |
| 337 | 1019801253 | O-Ring | |
| 346 | 1019801237 | Hex.Socket Plug | |
| 352 | 1019801100 | Hex.Socket Plug | |
| 354 | 1019801236 | Hex.Socket Head Bolt | |
| 355 | 1019801251 | O-Ring | |
| 357 | 1019801118 | Hex.Socket Plug | |
| 358 | 1019801248 | O-Ring | |
| 359 | 1019801249 | O-Ring | |
| 363 | 1019801215 | Spool | |
| 366 | 1019801216 | Spring | |
| 368 | 1019801243 | Steel Ball | |
| 379 | 1019801019 | Filter | |
| 380 | 1019801230 | Plug | |
| 382 | 1019801218 | Plug | |
| 383 | 1019801257 | O-Ring | |
| 384 | 1019801258 | O-Ring | |
| 385 | 1019801244 | Steel Ball | |
| 397 | 1019801019 | Filter | |
| 398 | 1019801238 | Hex.Socket Plug | |
| 399 | 1019801231 | Name Plate | |
| 341 | 1019801242 | Parallel-Pin | |
| 343 | 1019801239 | Bolt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
