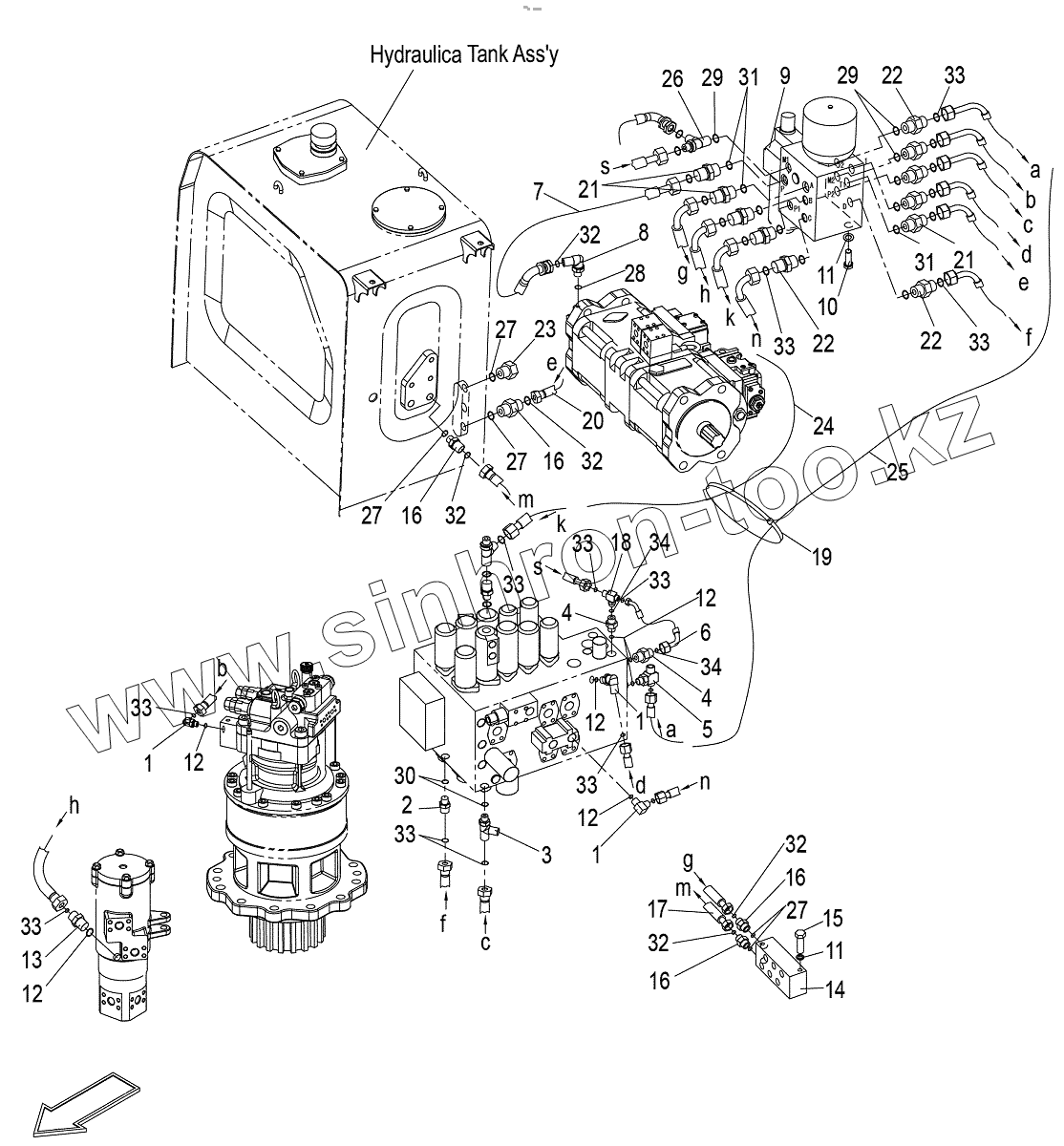

Каталог запасных частей к технике: Zoomlion ZE205E. Solenoid Valve Piping
1
1
1
2
3
4
4
5
6
7
8
9
10
11
11
12
12
12
12
12
13
14
15
16
16
16
16
17
18
19
20
21
21
22
22
22
23
24
25
26
27
27
27
27
28
29
29
30
31
31
32
32
32
32
32
33
33
33
33
33
33
33
33
33
33
34
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1140103708 | Connector | |
| 2 | 1140103757 | Nipple | |
| 3 | 1140103752 | Nipple | |
| 4 | 1140103760 | Nipple | |
| 5 | 1140103763 | Nipple | |
| 6 | 1140211499 | Hose | |
| 7 | 1140211500 | Hose | |
| 8 | 1140103764 | Nipple | |
| 9 | 1010301957 | Pilot Valve | |
| 10 | 1040000114 | Bolt | |
| 11 | 1040300067 | Washer | |
| 12 | 1081001512 | O-Ring | |
| 13 | 003004027A0001020 | Nipple | |
| 14 | 003004027A0001010 | Block | |
| 15 | 1040000117 | Washer | |
| 16 | 1040103733 | Nipple | |
| 17 | 1140211501 | Hose | |
| 18 | 1140103765 | Nipple | |
| 19 | 1990200711 | Nilon Band | |
| 20 | 1140211509 | Hose | |
| 21 | 1140103767 | Nipple | |
| 22 | 1140103749 | Nipple | |
| 23 | 1019900329 | Bolt | |
| 24 | 003004027A0200000 | Hose Ass’y | |
| 25 | 003004027A0400000 | Hose Ass’y | |
| 26 | 1140104587 | Nipple | |
| 27 | 1081001733 | O-Ring | |
| 28 | 1081001743 | O-Ring | |
| 29 | 1081002010 | O-Ring | |
| 30 | 1081001508 | O-Ring | |
| 31 | 1081002011 | O-Ring | |
| 32 | 1140213813 | O-Ring | |
| 33 | 1081001716 | O-Ring | |
| 34 | 1081001720 | O-Ring | |
| 24-1 | 1140211516 | Hose | |
| 24-2 | 1140211517 | Hose | |
| 24-3 | 1140211518 | Hose | |
| 24-4 | 1140211519 | Hose | |
| 25-1 | 1140211520 | Hose | |
| 25-2 | 1140211521 | Hose | |
| 25-3 | 1140211522 | Hose | |
| 25-4 | 1140211523 | Hose | |
| 25-5 | 1140211524 | Hose |
