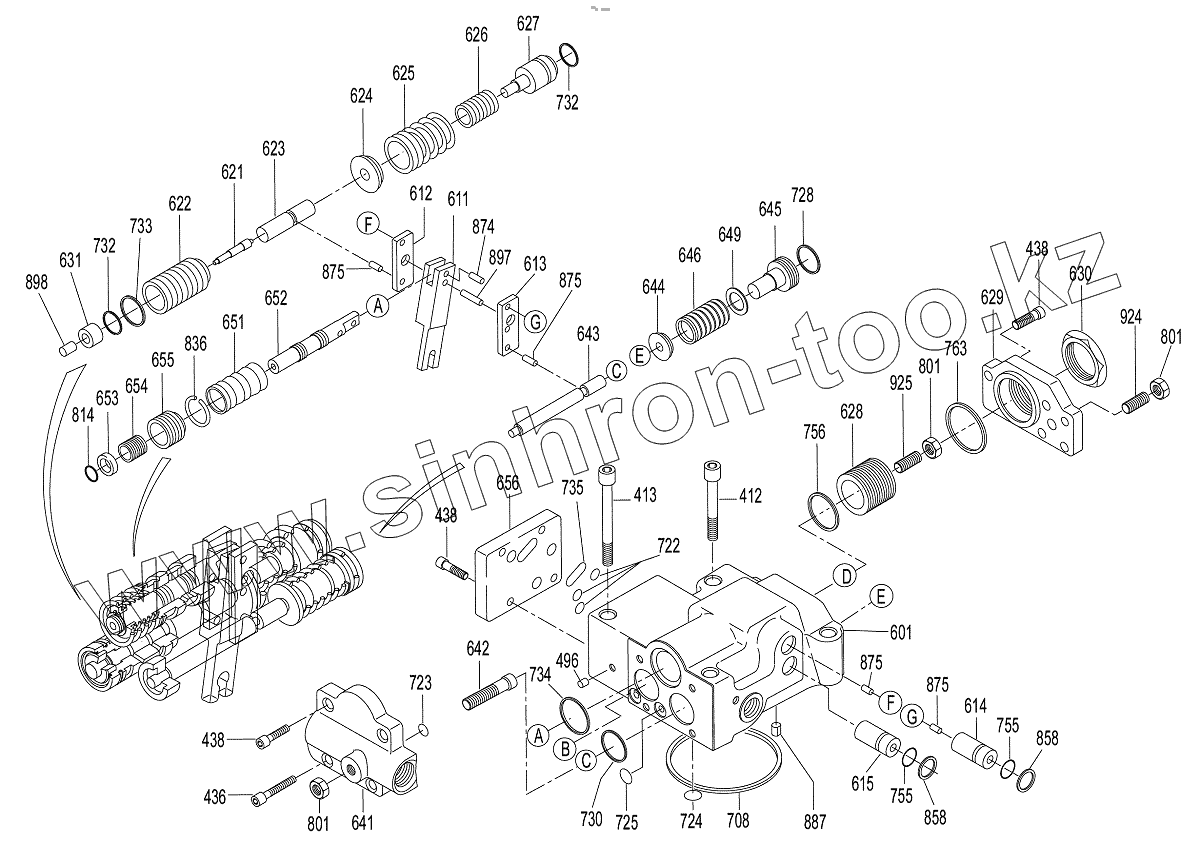

Каталог запасных частей к технике: Zoomlion ZE205E. Regulator
412
413
436
438
438
438
496
601
611
612
613
614
615
621
622
623
624
625
626
627
628
629
630
631
641
643
644
645
646
651
652
653
654
655
656
708
722
724
725
728
730
732
732
733
734
735
755
755
756
763
801
801
801
814
836
858
858
874
875
875
875
875
887
897
898
924
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1019801266 | 1019801266 | Regulator | |
| 412 | 1019801802 | Screw Hex.S.H.C. | |
| 413 | 1019801801 | Screw Hex.S.H.C. | |
| 436 | 1019801800 | Screw Hex.S.H.C. | |
| 438 | 1019801799 | Screw Hex.S.H.C. | |
| 496 | 1019801339 | Plug | |
| 601 | 1019800921 | Casing | |
| 611 | 1019800963 | Lever Feedback | |
| 612 | 1019800932 | Lever | |
| 613 | 1019800933 | Lever | |
| 614 | 1019800934 | Plug Center | |
| 615 | 1019800935 | Plug Adjust | |
| 621 | 1019800936 | Piston Compensator | |
| 622 | 1019800937 | Case Piston | |
| 623 | 1019801044 | Rod Compensator | |
| 624 | 1019801022 | Seat Spring | |
| 625 | 1019800938 | Spring Outer | |
| 626 | 1019800939 | Spring Inter | |
| 627 | 1019801049 | Stem Adjust | |
| 628 | 1019801025 | ScrewAdjust | |
| 629 | 1019800927 | Cover | |
| 630 | 1019800940 | Nutv Lock | |
| 631 | 1019800959 | Sleeve Pf | |
| 641 | 1019800930 | Cover Pilot | |
| 643 | 1019801040 | Piston Pilot | |
| 644 | 1019801023 | SeatSpring | |
| 645 | 1019801050 | Stem Adjust | |
| 646 | 1019800951 | Spring Pilot | |
| 651 | 1019800929 | Sleeve | |
| 652 | 1019800941 | Spool | |
| 653 | 1019800942 | Seat Spring | |
| 654 | 1019800944 | Spring Return | |
| 655 | 1019800943 | Spring Set | |
| 656 | 1019800958 | Cover Block | |
| 708 | 1019801281 | O-Ring | |
| 722 | 1019801299 | O-Ring | |
| 724 | 1019801300 | O-Ring | |
| 725 | 1019801284 | O-Ring | |
| 728 | 1019801292 | O-Ring | |
| 730 | 1019801295 | O-Ring | |
| 732 | 1019801290 | O-Ring | |
| 733 | 1019801293 | O-Ring | |
| 734 | 1019801276 | O-Ring | |
| 735 | 1019801287 | O-Ring | |
| 753 | 1019801301 | O-Ring | |
| 755 | 1019801286 | O-Ring | |
| 756 | 1019801298 | O-Ring | |
| 763 | 1019801279 | O-Ring | |
| 801 | 1019801304 | Nut | |
| 802 | 1019801029 | Nut | |
| 814 | 1019801324 | Ring Snap | |
| 836 | 1019801376 | Ring Snap | |
| 858 | 1019801309 | Ring Snap | |
| 874 | 1019801346 | Pin | |
| 875 | 1019801345 | Pin | |
| 876 | 1019801347 | Pin | |
| 887 | 1019800950 | Pin | |
| 897 | 1019801348 | Pin | |
| 898 | 1019801350 | Pin | |
| 924 | 1019801362 | Screw Set |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
