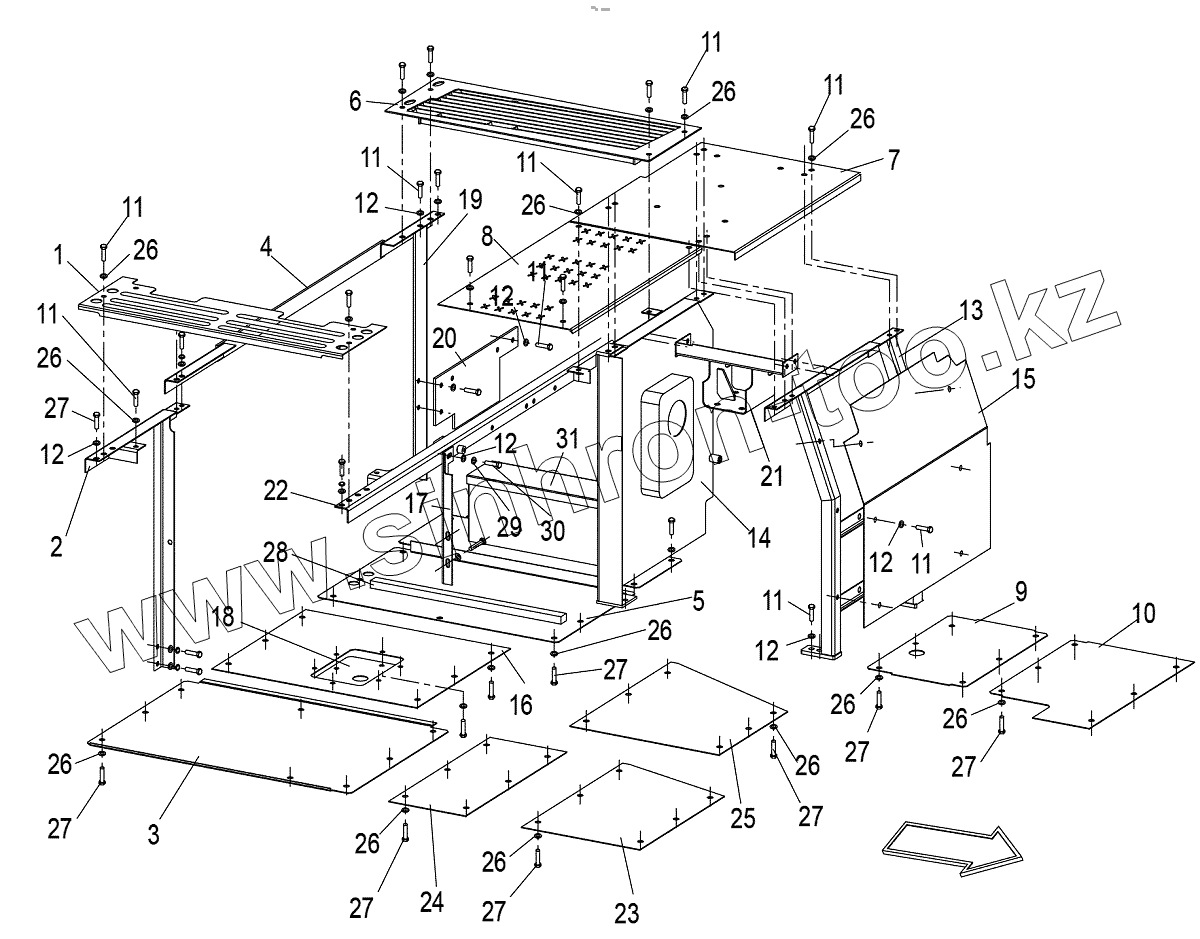

Каталог запасных частей к технике: Zoomlion ZE205E. Cover And Frame Assy
1
2
3
4
5
6
7
8
9
10
11
11
11
11
11
11
11
11
11
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
26
26
26
26
26
26
26
26
26
26
27
27
27
27
27
27
27
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 003001010A0200000 | Plate | |
| 2 | 003001010A0400000 | Bracket | |
| 3 | 003001010A0001010 | Plate | |
| 4 | 003001010A0600000 | Bracket | |
| 5 | 003001010A0001020 | Plate | |
| 6 | 003001010A0800000 | Plate | |
| 7 | 003001010A1200001 | Plate | |
| 8 | 003001010A1400001 | Plate | |
| 9 | 003001010A0001030 | Plate | |
| 10 | 003001010A0001040 | Plate | |
| 11 | 1040000069 | Bolt | |
| 12 | 1040300041 | Washer | |
| 13 | 003001010A1600000 | Bracket | |
| 14 | 003001010A1800000 | Bracket | |
| 15 | 003001010A0001050 | Plate | |
| 16 | 003001010A2000000 | Plate | |
| 17 | 003001010A0001060 | Bracket | |
| 18 | 003001010A0001070 | Plate | |
| 19 | 003001010A2200000 | Bracket | |
| 20 | 003001010A2400000 | Plate | |
| 21 | 003001010A2600000 | Plate | |
| 22 | 003001010A2800000 | Bracket | |
| 23 | 003001010A0001080 | Plate | |
| 24 | 003001010A0001090 | Plate | |
| 25 | 003001010A0001100 | Plate | |
| 26 | 1040300233 | Washer | |
| 27 | 1040000108 | Bolt | |
| 28 | 003001010A0001110 | Sponge | |
| 29 | 1040300054 | Washer | |
| 30 | 1040000093 | Bolt | |
| 31 | 003001010A3000000 | Plate |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
