TRAVELING REDUCER D1030200733_100014Y

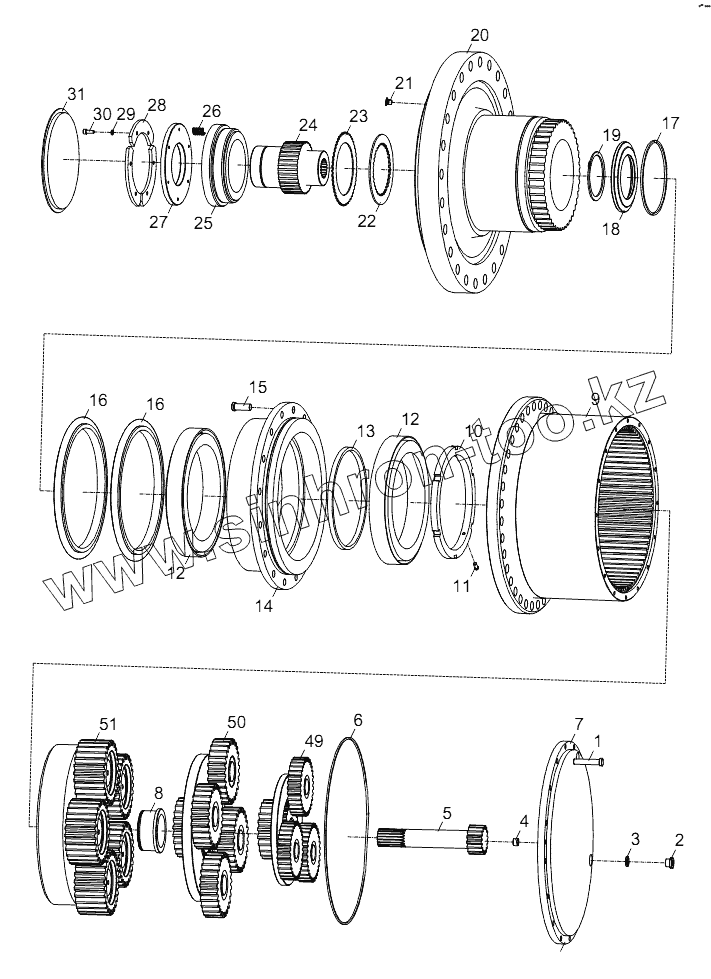

Каталог запасных частей к технике: Zoomlion ZCC1100H. TRAVELING REDUCER D1030200733_100014Y
