  5. SLEWING TABLE ELECTRICS D00663116300000000Y

Каталог запасных частей к технике: Zoomlion ZCC1100H. SLEWING TABLE ELECTRICS D00663116300000000Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
7
10
11
16
21
23
26
27
31
32
33
34
38
39
40
41
42
43

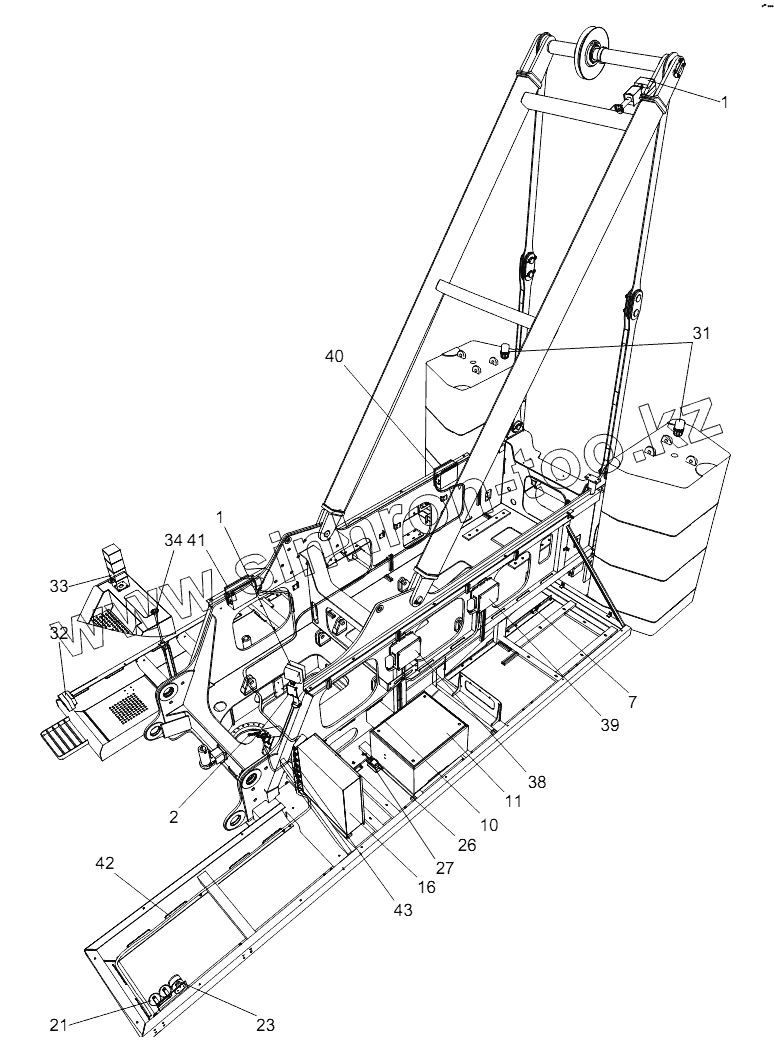

Позиция на иллюстрации Заводской номер детали Название детали
00663116300000000 00663116300000000 Slewing table electrics
1 00663006320600002 Camera installation diagram
2 1020500141 Limit switch
3 1020700231 Terminal plug
4 1040000219 Bolt
5 1040200107 Nut
6 1021402686 Pressure sensor
7 1020500089 Limit switch
8 1040000235 Bolt
9 1040200100 Nut
10 1020500654 Battery master switch
11 00663006310200000 Battery container assy
12 1020600087 Negative pole of battery terminal
13 1020600086 Positive pole of battery terminal
14 1020900004 Lead-acid battery
15 1029900085 Main power switch
16 00663116300400000 Electrical control box assy for slewing table
17 1040000018 Bolt
18 1040200192 Nut
19 1040300063 Washer
20 1040300066 Washer
21 1029900063 Basin electric horn
22 1040000288 Bolt
23 1020400228 Alarm
24 1040000571 Bolt
25 1020500588 Proximity switch
26 1021400015 Inclination sensor
27 00663006320001020 Plate
28 1040200111 Nut
29 00663006320001030 Spring
30 1021400292 Pressure sensor
31 1020404075 Acoustic alarm
32 1020400057 Acoustic alarm
33 1020400086 LED acoustic signal light
34 1021400246 Fuel level sensor
35 1040100057 Screw
36 1040300048 Washer
37 00663116300600000 Slewing table components wiring diagram
38 00663116300210001 Wire harness of junction box
39 00663116300220001 Wire harness of junction box
40 00663116300230001 Wire harness of junction box
41 00663116300240001 Wire harness of junction box
42 00663116300250001 Wire harness of operator's cab on slewing ta ble
43 00663116300260001 Transition cable of slewing table
44 00663116300270000 Connecting wire assy of battery
45 00663116300280001 Auxiliary control box assy
46 00663406330300000 ECM attachments
