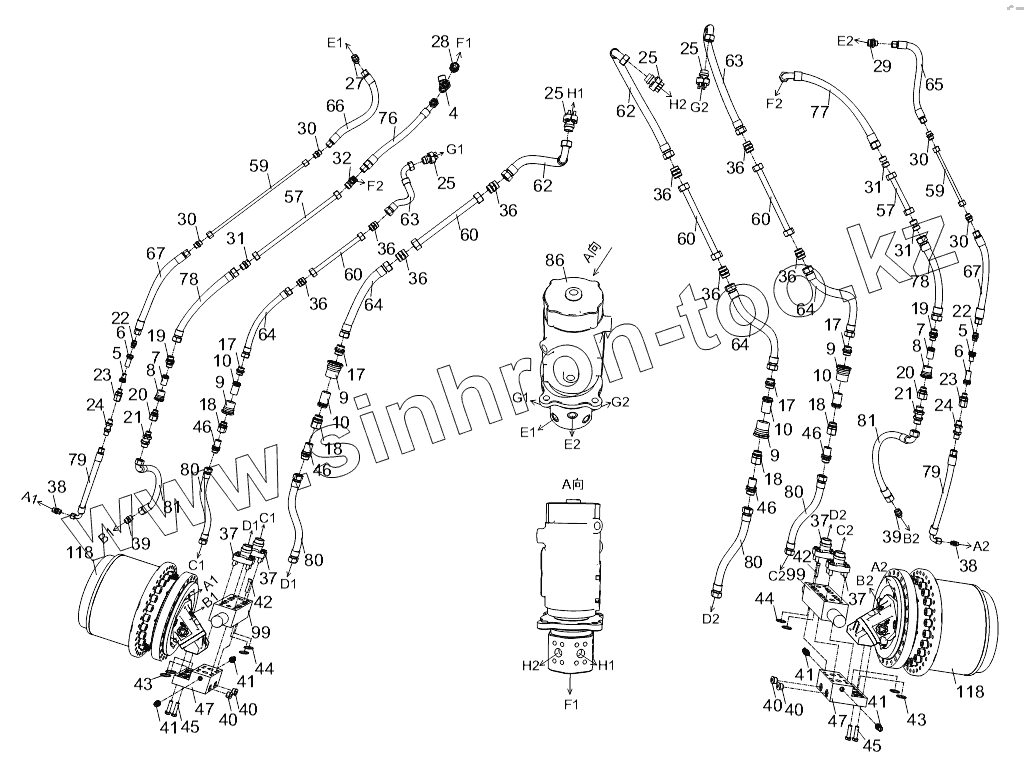

Каталог запасных частей к технике: Zoomlion ZCC1100H. PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM D00663111700000000Y
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
10
10
17
17
17
17
18
18
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
25
25
27
28
29
30
30
30
30
31
31
31
32
36
36
36
36
36
36
36
36
37
37
37
37
38
38
39
39
40
40
40
40
41
41
41
41
42
42
43
43
44
44
45
45
46
46
46
46
47
47
57
57
59
59
60
60
60
60
62
62
63
63
64
64
64
64
65
66
67
67
76
77
78
78
79
79
80
80
80
80
81
81
86
99
99
118
118
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00663111700000000 | 00663111700000000 | Pipe layout – undercarriage hydraulic system | |
| 4 | 1140102995 | Fitting | |
| 5 | 1140101253 | Quick-release coupling | |
| 6 | 1140101254 | Quick-release coupling | |
| 7 | 1140101855 | Quick-release coupling | |
| 8 | 1140101854 | Quick-release coupling | |
| 9 | 1140101263 | Quick-release coupling | |
| 10 | 1140101264 | Quick-release coupling | |
| 17 | 1140100571 | Fitting | |
| 18 | 1140100187 | Fitting | |
| 19 | 1140100620 | Fitting | |
| 20 | 1140100448 | Fitting | |
| 21 | 1140100624 | Fitting | |
| 22 | 1140100572 | Fitting | |
| 23 | 1140100158 | Fitting | |
| 24 | 1140100525 | Fitting | |
| 25 | 1140100862 | Flange assembly | |
| 27 | 1140102481 | Pipe fitting | |
| 28 | 1140102153 | Pipe fitting | |
| 29 | 1140102476 | Pipe fitting | |
| 30 | 1140100583 | Fitting | |
| 31 | 1140100623 | Fitting | |
| 32 | 1140100609 | Fitting | |
| 36 | 1140100575 | Fitting | |
| 37 | 1140100863 | Flange assembly | |
| 38 | 1140101002 | Pipe fitting | |
| 39 | 1140101008 | Pipe fitting | |
| 40 | 1140101285 | Blanking plug | |
| 41 | 1140102826 | Pressure testing joint | |
| 42 | 1040100779 | Screw | |
| 43 | 1081000034 | O-ring | |
| 44 | 1081000048 | O-ring | |
| 45 | 1040000579 | Bolt | |
| 46 | 1140100625 | Fitting | |
| 47 | 00663111700001010 | Transition block for traveling balance valve | |
| 57 | 00663111705020000 | Steel pipe assy | |
| 59 | 00663111705040000 | Steel pipe assy | |
| 60 | 00663111705050000 | Steel pipe assy | |
| 62 | 1140235695 | Hose assy | |
| 63 | 1140215660 | Hose assy | |
| 64 | 1140235712 | Hose assy | |
| 65 | 1140206297 | Hose assy | |
| 66 | 1140201472 | Hose assy | |
| 67 | 1140235717 | Hose assy | |
| 76 | 1140220419 | Hose assy | |
| 77 | 1140208807 | Hose assy | |
| 78 | 1140235710 | Hose assy | |
| 79 | 1140203584 | Hose assy | |
| 80 | 1140235713 | Hose assy | |
| 81 | 1140220421 | Hose assy | |
| 86 | 1011200029 | Central revolving joint | |
| 99 | 1010300066 | Traveling brake valve | |
| 118 | 00660512400600000 | Traveling reducer + motor |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
