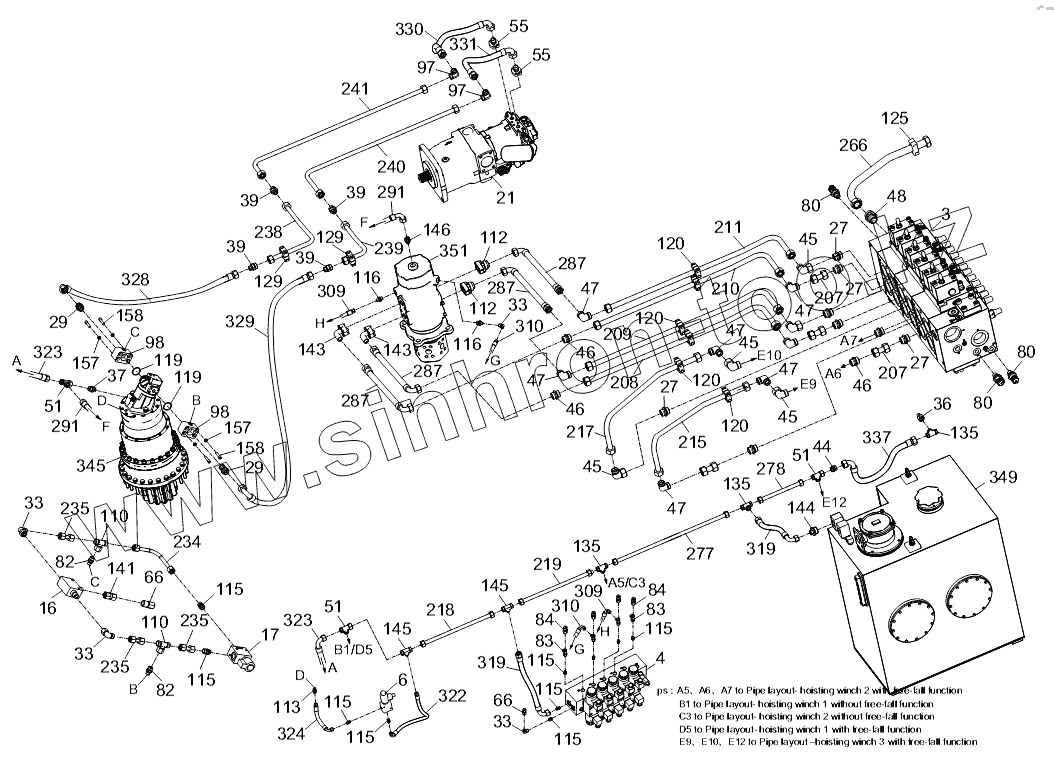

Каталог запасных частей к технике: Zoomlion ZCC1100H. PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM (Slewing system) D00663111600000001Y
3
4
6
16
17
21
27
27
27
27
29
29
33
33
33
33
36
37
39
39
39
39
44
45
45
45
45
46
46
46
47
47
47
47
47
47
48
51
51
51
55
55
66
66
80
80
80
82
82
83
83
84
84
97
97
98
98
110
110
112
112
113
115
115
115
115
115
115
115
115
116
116
119
119
120
120
120
120
125
129
129
135
135
135
141
143
143
144
145
145
146
157
157
158
158
207
207
208
209
210
211
215
217
218
219
234
235
235
235
238
239
240
241
266
277
278
287
287
287
287
291
291
309
309
310
310
319
319
322
323
323
324
328
329
330
331
337
345
349
351
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3 | 1010303899 | Main valve | |
| 4 | 1010300433 | Control valve block | |
| 6 | 1010300148 | Solenoid valve | |
| 16 | 1010300062 | Shuttle valve | |
| 17 | 1010301868 | Control valve | |
| 21 | 1010001164 | Tandem variable pump | |
| 26 | 00663004811210000 | Clamp | |
| 27 | 1140100571 | Fitting | |
| 29 | 1140101146 | Pipe fitting | |
| 33 | 1140100597 | Fitting | |
| 36 | 1140100737 | Fitting | |
| 37 | 1140100724 | Fitting | |
| 39 | 1140100728 | Fitting | |
| 44 | 1140100644 | Fitting | |
| 45 | 1140100628 | Fitting | |
| 46 | 1140100575 | Fitting | |
| 47 | 1140100576 | Fitting | |
| 48 | 1140100573 | Fitting | |
| 51 | 1140100731 | Fitting | |
| 55 | 1140101871 | Flange assembly | |
| 66 | 1140100423 | Fitting | |
| 80 | 1140102828 | Pressure testing joint | |
| 82 | 1140100527 | Fitting | |
| 83 | 1140100647 | Fitting | |
| 84 | 1140102830 | Pressure testing joint | |
| 97 | 1140100771 | Fitting | |
| 98 | 00663101620001060 | Flange fitting | |
| 110 | 1140100649 | Fitting | |
| 111 | 1140101013 | Pipe fitting | |
| 112 | 1140102983 | Flange assembly | |
| 113 | 1140101002 | Pipe fitting | |
| 115 | 1140100574 | Fitting | |
| 116 | 1140100598 | Fitting | |
| 119 | 1081000065 | O-ring | |
| 120 | 1990200237 | pipe clamp | |
| 125 | 1990200236 | pipe clamp | |
| 127 | 1990200238 | pipe clamp | |
| 129 | 1990200240 | pipe clamp | |
| 135 | 1140100579 | Fitting | |
| 141 | 1140100267 | Fitting | |
| 143 | 1140100860 | Flange assembly | |
| 144 | 1140102506 | Pipe fitting | |
| 145 | 1140100580 | fitting | |
| 146 | 1140102500 | Pipe fitting | |
| 157 | 1040300054 | Washer | |
| 158 | 1040100028 | Screw | |
| 207 | 00663111605120001 | Steel pipe assy | |
| 208 | 00663111605130001 | Steel pipe assy | |
| 209 | 00663111605140001 | Steel pipe assy | |
| 210 | 00663111605150001 | Steel pipe assy | |
| 211 | 00663111605160001 | Steel pipe assy | |
| 215 | 00663111605200001 | Steel pipe assy | |
| 217 | 00663111605220001 | Steel pipe assy | |
| 218 | 00663111605240001 | Steel pipe assy | |
| 219 | 00663111605260001 | Steel pipe assy | |
| 234 | 00663111605430001 | Steel pipe assy | |
| 235 | 00663111605440001 | Steel pipe assy | |
| 238 | 00663111605470001 | Steel pipe assy | |
| 239 | 00663111605480001 | Steel pipe assy | |
| 240 | 00663111605490001 | Steel pipe assy | |
| 241 | 00663111605500001 | Steel pipe assy | |
| 266 | 00663111605770001 | Steel pipe assy | |
| 277 | 00663111605880001 | Steel pipe assy | |
| 278 | 00663111605890001 | Steel pipe assy | |
| 287 | 1140204793 | Hose assy | |
| 291 | 1140201896 | Hose assy | |
| 309 | 1140215473 | Hose assy | |
| 310 | 1140222913 | Hose assy | |
| 319 | 1140201900 | Hose assy | |
| 322 | 1140217109 | Hose assy | |
| 323 | 1140216857 | Hose assy | |
| 324 | 1140203038 | Hose assy | |
| 328 | 1140209106 | Hose assy | |
| 329 | 1140208165 | Hose assy | |
| 330 | 1140202708 | Hose assy | |
| 331 | 1140221949 | Hose assy | |
| 337 | 1140201897 | Hose assy | |
| 345 | Slewingmechanism | Slewing mechanism | |
| 349 | Hydraulicoiltank | Hydraulic oil tank | |
| 351 | Centralrevolvingjoint | Central revolving joint |
