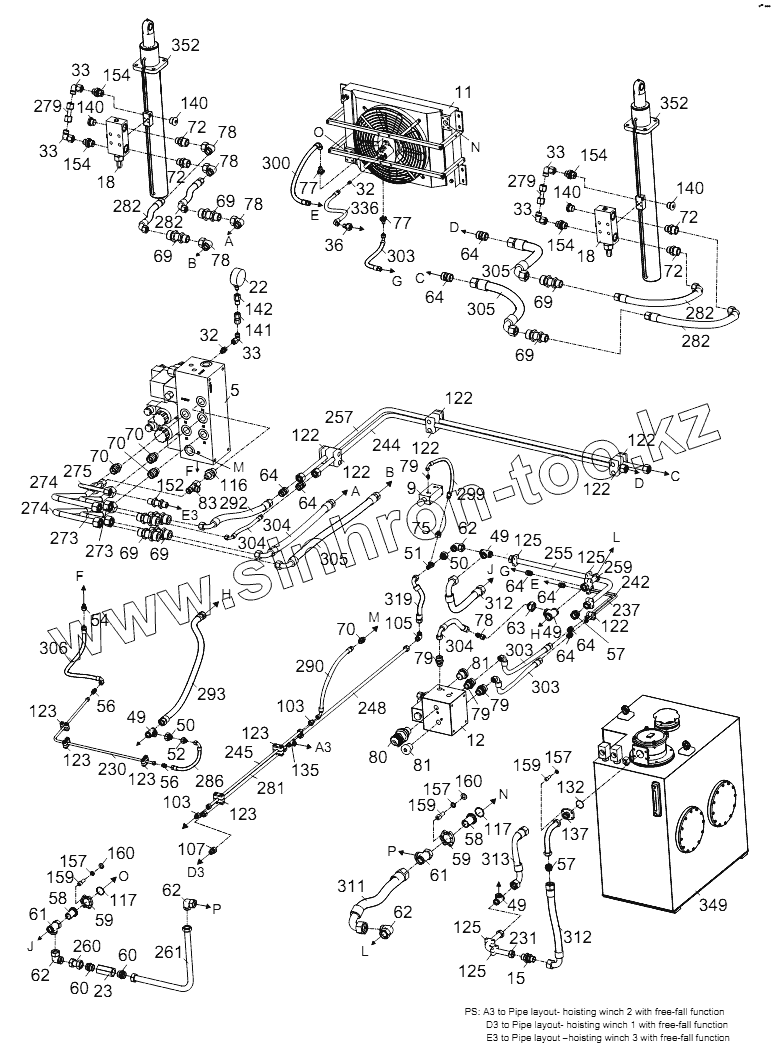

Каталог запасных частей к технике: Zoomlion ZCC1100H. PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM (Radiator assy) D00663111600000001Y
5
9
11
12
15
18
18
22
23
32
32
33
33
33
33
33
36
49
49
49
49
50
50
51
52
54
56
56
57
57
58
58
59
59
60
60
61
61
62
62
62
62
63
64
64
64
64
64
64
64
64
69
69
69
69
69
69
70
70
70
70
72
72
72
72
75
77
77
78
78
78
78
78
79
79
79
79
80
81
81
83
103
103
105
107
116
117
117
122
122
122
122
122
122
122
123
123
123
123
123
125
125
125
125
132
135
137
140
140
140
140
141
142
152
154
154
154
154
157
157
157
159
159
159
160
160
230
231
237
242
244
245
248
255
257
259
260
261
273
273
274
274
275
279
279
281
282
282
282
282
286
290
292
293
299
300
303
303
303
304
304
304
305
305
305
306
311
312
312
313
319
336
349
352
352
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00663111600000001 | 00663111600000001 | Pipe layout – superstructure hydraulic syste m | |
| 5 | 1010303898 | Control valve block | |
| 9 | 1010302669 | Overflow valve | |
| 11 | 1010400009 | Radiator device | |
| 12 | 1010300423 | Combination valve | |
| 15 | 1140101393 | Check valve fitting | |
| 18 | 1010300200 | Balance valve | |
| 22 | 1019900190 | Pressure gauge | |
| 23 | 1010300133 | Check valve | |
| 32 | 1140100572 | Fitting | |
| 33 | 1140100597 | Fitting | |
| 36 | 1140100737 | Fitting | |
| 49 | 1140100669 | Fitting | |
| 50 | 1140100667 | Fitting | |
| 51 | 1140100731 | Fitting | |
| 52 | 1140100642 | Fitting | |
| 54 | 1140100620 | Fitting | |
| 56 | 1140100623 | Fitting | |
| 57 | 1140100686 | Fitting | |
| 58 | 00663601600001030 | Flange fitting | |
| 59 | 1140100032 | Split flange | |
| 60 | 1140100683 | Fitting | |
| 61 | 1140100812 | Fitting | |
| 62 | 1140100730 | Fitting | |
| 63 | 1140100758 | Fitting | |
| 64 | 1140100602 | Fitting | |
| 69 | 1140100725 | Fitting | |
| 70 | 1140100618 | Fitting | |
| 72 | 1140100592 | Fitting | |
| 75 | 1140100738 | Fitting | |
| 77 | 1140100876 | Flange fitting | |
| 78 | 1140100587 | Fitting | |
| 79 | 1140100643 | Fitting | |
| 80 | 1140102828 | Pressure testing joint | |
| 81 | 1140101283 | Blanking plug | |
| 83 | 1140100647 | Fitting | |
| 103 | 1140100640 | Fitting | |
| 105 | 1140100641 | Fitting | |
| 107 | 1140100590 | Fitting | |
| 116 | 1140100598 | Fitting | |
| 117 | 1081000077 | O-ring | |
| 122 | 1990200213 | pipe clamp | |
| 123 | 1990200210 | pipe clamp | |
| 125 | 1990200236 | pipe clamp | |
| 132 | 1081000023 | O-ring | |
| 135 | 1140100579 | Fitting | |
| 137 | 00663111600800000 | Flange fitting | |
| 140 | 1140101787 | Blanking plug | |
| 141 | 1140100267 | Fitting | |
| 142 | 1140101251 | Pressure gauge fitting | |
| 152 | 1140100525 | Fitting | |
| 154 | 1140101085 | Pipe fitting | |
| 157 | 1040300054 | Washer | |
| 159 | 1040100125 | Screw | |
| 160 | 1040300041 | Washer | |
| 205 | 00663111605100001 | Steel pipe assy | |
| 230 | 00663111605390001 | Steel pipe assy | |
| 231 | 00663111605400001 | Steel pipe assy | |
| 237 | 00663111605460001 | Steel pipe assy | |
| 242 | 00663111605510001 | Steel pipe assy | |
| 244 | 00663111605530001 | Steel pipe assy | |
| 245 | 00663111605540001 | Steel pipe assy | |
| 248 | 00663111605570001 | Steel pipe assy | |
| 255 | 00663111605640001 | Steel pipe assy | |
| 257 | 00663111605670001 | Steel pipe assy | |
| 259 | 00663111605700001 | Steel pipe assy | |
| 260 | 00663111605710001 | Steel pipe assy | |
| 261 | 00663111605720001 | Steel pipe assy | |
| 273 | 00663111605840001 | Steel pipe assy | |
| 274 | 00663111605850001 | Steel pipe assy | |
| 275 | 00663111605860001 | Steel pipe assy | |
| 279 | 00663111605960001 | Steel pipe assy | |
| 281 | 00663111605980001 | Steel pipe assy | |
| 282 | 1140218474 | Hose assy | |
| 286 | 1140204363 | Hose assy | |
| 290 | 1140206723 | Hose assy | |
| 292 | 1140206947 | Hose assy | |
| 293 | 1140220009 | Hose assy | |
| 299 | 1140206948 | Hose assy | |
| 300 | 1140202941 | Hose assy | |
| 303 | 1140201481 | Hose assy | |
| 304 | 1140217102 | Hose assy | |
| 305 | 1140201959 | Hose assy | |
| 306 | 1140220412 | Hose assy | |
| 311 | 1140203593 | Hose assy | |
| 312 | 1140206755 | Hose assy | |
| 313 | 1140203625 | Hose assy | |
| 319 | 1140201900 | Hose assy | |
| 336 | 1140201840 | Hose assy | |
| 349 | Oiltank | Hydraulic oil tank | |
| 352 | Cylinder | Cylinder |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
