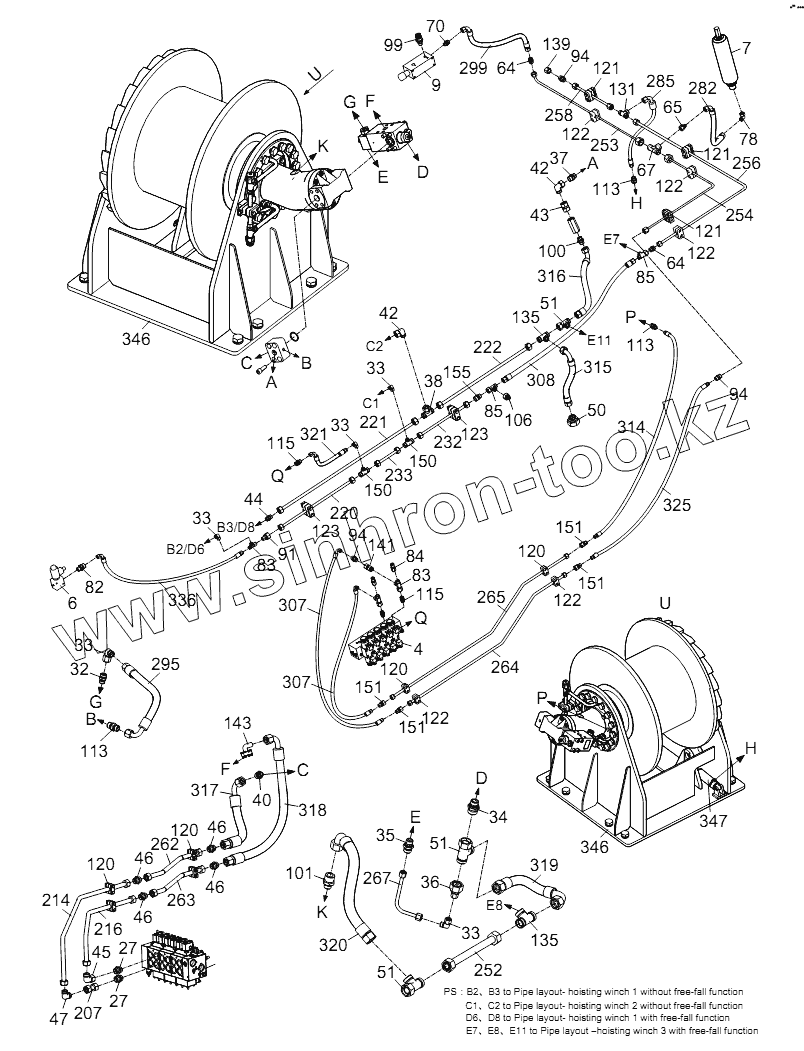

Каталог запасных частей к технике: Zoomlion ZCC1100H. PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM (Derricking system) D00663111600000001Y
4
6
7
9
27
27
32
33
33
33
33
33
34
35
36
37
38
40
42
42
43
44
45
46
46
46
46
47
50
51
51
51
64
64
65
67
70
78
82
83
83
84
85
85
91
94
94
94
99
100
101
106
113
113
113
115
115
120
120
120
120
121
121
121
122
122
122
122
122
123
123
131
135
135
139
141
143
150
150
151
151
151
151
155
207
214
216
220
221
222
232
233
252
253
254
256
258
262
263
264
265
267
282
285
295
299
307
307
308
314
315
316
317
318
319
320
321
325
336
346
346
347
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00663111600000001 | 00663111600000001 | Pipe layout – superstructure hydraulic syste m | |
| 3 | 1010303899 | Main valve | |
| 4 | 1010300433 | Control valve block | |
| 6 | 1010300148 | Solenoid valve | |
| 7 | 1010800009 | Accumulator | |
| 9 | 1010302669 | Overflow valve | |
| 27 | 1140100571 | Fitting | |
| 32 | 1140100572 | Fitting | |
| 33 | 1140100597 | Fitting | |
| 34 | 1140100167 | Fitting body | |
| 35 | 1140103255 | Pipe fitting | |
| 36 | 1140100737 | Fitting | |
| 37 | 1140100724 | Fitting | |
| 38 | 1140100578 | Fitting | |
| 40 | 1140101151 | Pipe fitting | |
| 42 | 1140100616 | Fitting | |
| 43 | 1140100043 | Pipe fitting | |
| 44 | 1140100644 | Fitting | |
| 45 | 1140100628 | Fitting | |
| 46 | 1140100575 | Fitting | |
| 47 | 1140100576 | Fitting | |
| 50 | 1140100667 | Fitting | |
| 51 | 1140100731 | Fitting | |
| 64 | 1140100602 | Fitting | |
| 65 | 1140100733 | Fitting | |
| 67 | 1140100594 | Fitting | |
| 70 | 1140100618 | Fitting | |
| 78 | 1140100587 | Fitting | |
| 82 | 1140100527 | Fitting | |
| 83 | 1140100647 | Fitting | |
| 84 | 1140102830 | Pressure testing joint | |
| 85 | 1140100639 | Fitting | |
| 91 | 1140100739 | Fitting | |
| 94 | 1140100583 | Fitting | |
| 99 | 1140102826 | Pressure testing joint | |
| 100 | 1140101011 | Pipe fitting | |
| 101 | 1140109632 | Pipe fitting | |
| 106 | 1140100664 | Fitting | |
| 113 | 1140101002 | Pipe fitting | |
| 115 | 1140100574 | Fitting | |
| 120 | 1990200237 | pipe clamp | |
| 121 | 1990200212 | pipe clamp | |
| 122 | 1990200213 | pipe clamp | |
| 123 | 1990200210 | pipe clamp | |
| 131 | 1140100526 | Fitting | |
| 135 | 1140100579 | Fitting | |
| 139 | 1040200041 | Nut | |
| 141 | 1140100267 | Fitting | |
| 143 | 1140100860 | Flange assembly | |
| 150 | 1140100654 | fitting | |
| 151 | 1149900149 | Transition fitting | |
| 155 | 1140100786 | fitting | |
| 207 | 00663111605120001 | Steel pipe assy | |
| 214 | 00663111605190001 | Steel pipe assy | |
| 216 | 00663111605210001 | Steel pipe assy | |
| 220 | 00663111605270001 | Steel pipe assy | |
| 221 | 00663111605280001 | Steel pipe assy | |
| 222 | 00663111605290001 | Steel pipe assy | |
| 232 | 00663111605410001 | Steel pipe assy | |
| 233 | 00663111605420001 | Steel pipe assy | |
| 252 | 00663111605610001 | Steel pipe assy | |
| 253 | 00663111605620001 | Steel pipe assy | |
| 254 | 00663111605630001 | Steel pipe assy | |
| 256 | 00663111605650001 | Steel pipe assy | |
| 258 | 00663111605690001 | Steel pipe assy | |
| 262 | 00663111605730001 | Steel pipe assy | |
| 263 | 00663111605740001 | Steel pipe assy | |
| 264 | 00663111605750001 | Steel pipe assy | |
| 265 | 00663111605760001 | Steel pipe assy | |
| 267 | 00663111605780001 | Steel pipe assy | |
| 282 | 1140218474 | Hose assy | |
| 285 | 1140217108 | Hose assy | |
| 295 | 1140214290 | Hose assy | |
| 299 | 1140206948 | Hose assy | |
| 307 | 1140217373 | Hose assy | |
| 308 | 1140201972 | Hose assy | |
| 314 | 1140202205 | Hose assy | |
| 315 | 1140202946 | Hose assy | |
| 316 | 1140203977 | Hose assy | |
| 317 | 1140203025 | Hose assy | |
| 318 | 1140201809 | Hose assy | |
| 319 | 1140201900 | Hose assy | |
| 320 | 1140221261 | Hose assy | |
| 321 | 1140214291 | Hose assy | |
| 325 | 1140222882 | Hose assy | |
| 336 | 1140201840 | Hose assy | |
| 346 | Derrickingmechanism | Derricking mechanism | |
| 347 | Ratchetwheelcylinder | Ratchet wheel cylinder |
