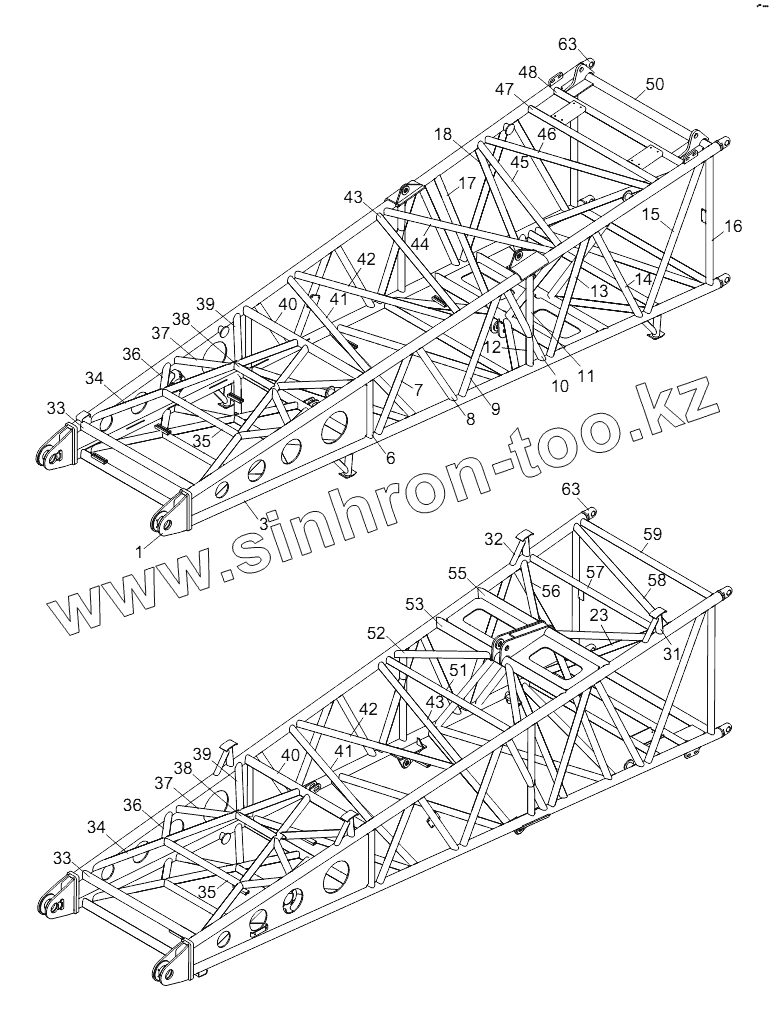

  5. MAIN BOOM PIVOT SECTION WELDED D00663110100410000Y

Каталог запасных частей к технике: Zoomlion ZCC1100H. MAIN BOOM PIVOT SECTION WELDED D00663110100410000Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
3
6
7
8
9
10
11
12
13
14
15
16
17
18
23
31
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
45
46
47
48
50
51
52
53
55
56
57
58
59
63
63
Позиция на иллюстрации Заводской номер детали Название детали
00663110100410000 00663110100410000 Main boom pivot section welded
1 00663020100210000 Fork joint
3 00663020100201020 Chord
6 00663110100411060 Web member
7 00663110100411070 Web member
8 00663110100411080 Web member
9 00663110100411090 Web member
10 00663110100411100 Web member
11 00663110100411110 Pipe
12 00663110100411120 Pipe
13 00663110100411130 Web member
14 00663110100411140 Web member
15 00663110100411150 Web member
16 00663110100411160 Web member
17 00663110100411170 Diagonal pipe
18 00663110100411180 Diagonal pipe
23 00663110100411230 Diagonal link
31 00663110100411310 Pipe
32 00663110100411320 Pipe
33 00663110100411330 Straight pipe
34 00663110100411340 Pipe
35 00663110100411350 Pipe
36 00663110100411360 Pipe
37 00663110100411370 Pipe
38 00663110100411380 Pipe
39 00663110100411390 Pipe
40 00663110100411400 Straight pipe
41 00663110100411410 Web member
42 00663110100411420 Web member
43 00663110100411430 Web member
44 00663110100411440 Web member
45 00663110100411450 Web member
46 00663110100411460 Web member
47 00663110100411470 Web member
48 00663110100411480 Web member
50 00663110100411500 Straight pipe
51 00663110100411510 Web member
52 00663110100411520 Web member
53 00663110100411530 Straight pipe
55 00663110100411550 Straight pipe
56 00663110100411560 Web member
57 00663110100411570 Web member
58 00663110100411580 Web member
59 00663110100411590 Web member
63 00663000100201212 Single hinge lug
