ZCC1100H
MAIN BOOM ASSY. D00663110100000000Y

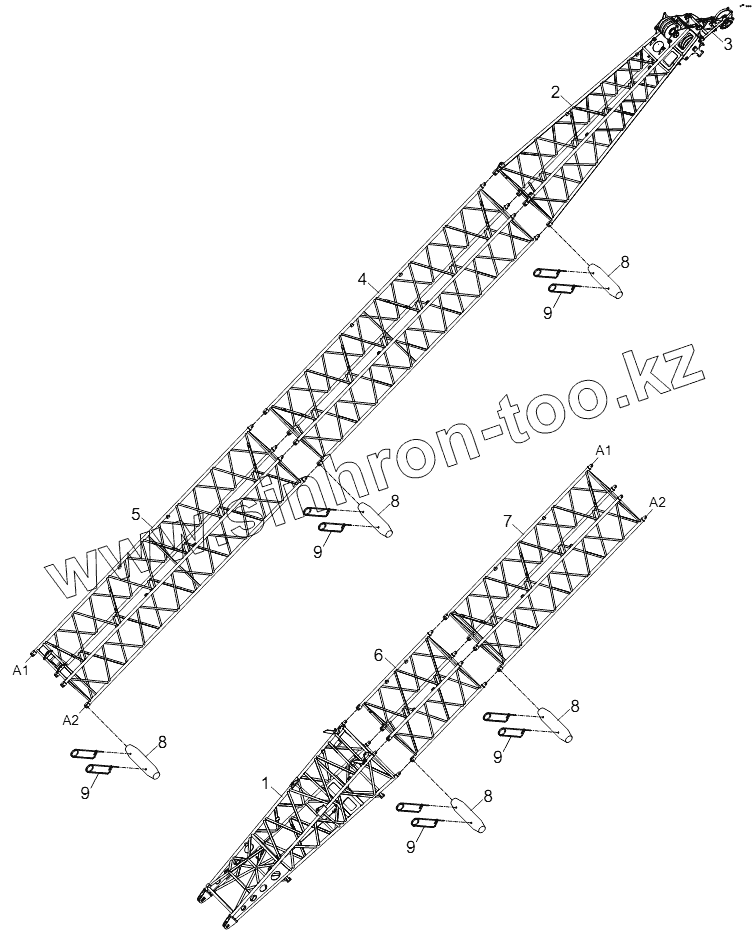

Каталог запасных частей к технике: Zoomlion ZCC1100H. MAIN BOOM ASSY. D00663110100000000Y
