ZCC1100H

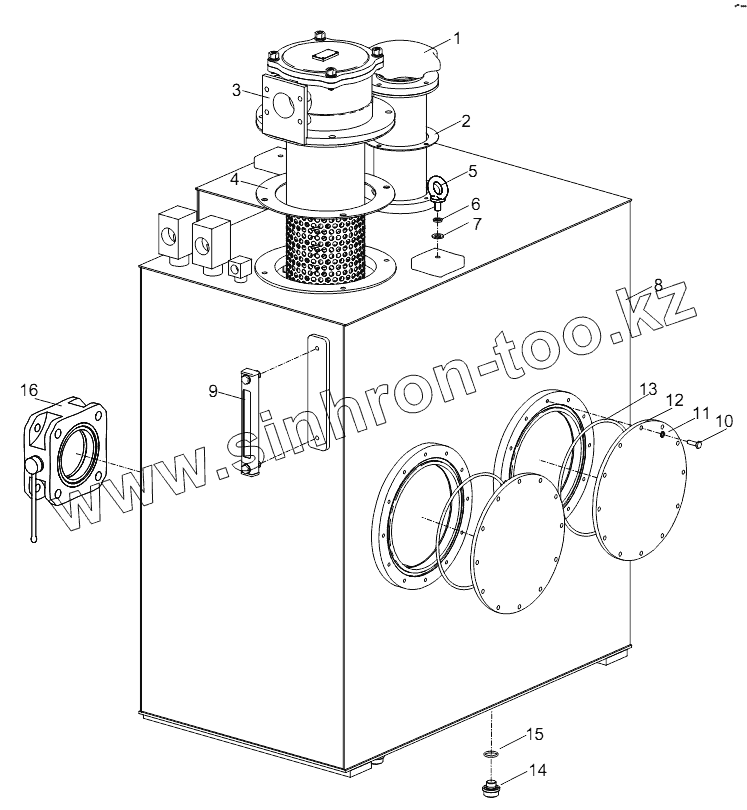

HYDRAULIC OIL TANK D00663113000000000Y
Каталог запасных частей к технике: Zoomlion ZCC1100H. HYDRAULIC OIL TANK D00663113000000000Y
