  5. ELECTRICAL CONTROL BOX ASSY FOR SLEWING TABLE D00663116300400000Y

Каталог запасных частей к технике: Zoomlion ZCC1100H. ELECTRICAL CONTROL BOX ASSY FOR SLEWING TABLE D00663116300400000Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
6
8
9
10
11
12
13
14
15
16
17
18
19
20
24
25
27
29
30
36
37

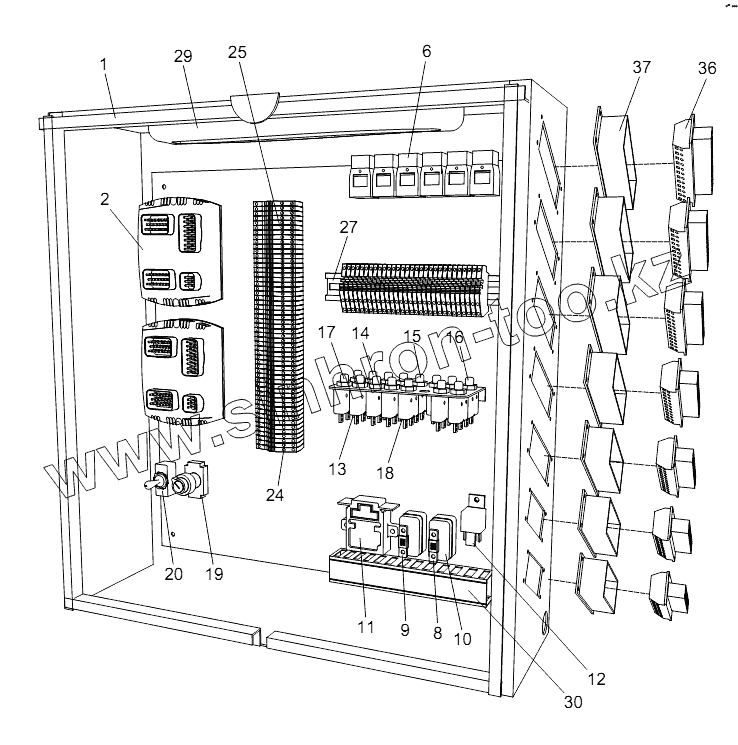

Позиция на иллюстрации Заводской номер детали Название детали
00663116300400000 00663116300400000 Electrical control box assy for slewing table
1 00663116300401020 Electrical control box
2 1020102028 Controller
3 1040100256 Screw
4 1040300060 Washer
5 1040300048 Washer
6 1020300083 Universal relay
7 1020700985 Relay socket
8 1020604255 Flat-type fuse
9 1020604253 Flat-type fuse
10 1020603084 Fuse seat
11 1020300089 Preheating relay
12 1020303421 Relay
13 1020600014 Circuit breaker
14 1020600012 Circuit breaker
15 1020600053 Circuit breaker
16 1020600013 Circuit breaker
17 1020600054 Circuit breaker
18 1020600035 Circuit breaker
19 1020514012 Ignition start switch
20 1020500187 Toggle switch
21 1029901498 Retaining plate
22 1020805351 Mark bar
23 1029901457 Fixer
24 1029901507 Wiring terminal
25 1029901508 Wiring terminal
26 1029901505 Connecting component
27 1020809446 Guide rail
28 1040100065 Screw
29 1020401090 Working floodlight
30 1029900068 Wire casing
31 1040100052 Screw
32 1040300062 Washer
33 1040300051 Washer
34 00663116300410000 Wiring diagram – electrical control box for slewing table
35 00663116300401010 Nameplate of electrical control box for slew ing table
36 1020700306 Connector
37 1029901315 Protecting jacket of heavy-duty connector
