ZCC1100H
AIR INTAKE SYSTEM D00663111400000000Y

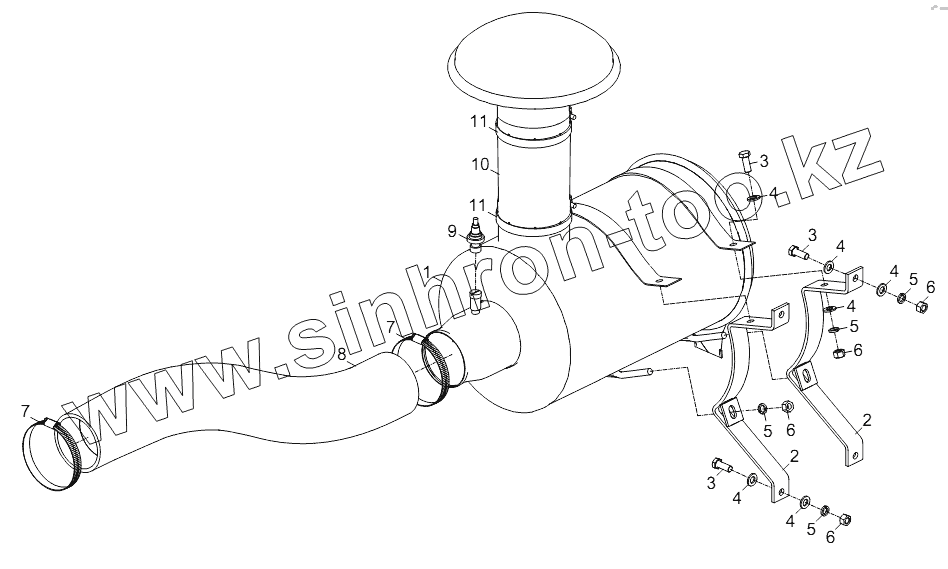

Каталог запасных частей к технике: Zoomlion ZCC1100H. AIR INTAKE SYSTEM D00663111400000000Y
