5. 3M MAIN BOOM INTERMEDIATE SECTION WELDED D00663110100810000Y

Каталог запасных частей к технике: Zoomlion ZCC1100H. 3M MAIN BOOM INTERMEDIATE SECTION WELDED D00663110100810000Y

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано ZCC1100HCL CRAWLER CRANE D00663110000000000Z ZCC1100HCL CRAWLER CRANE D00663110000000000Z MAIN BOOM ASSY. D00663110100000000Y MAIN BOOM PIVOT SECTION ASSY. D00663110100400000Y MAIN BOOM PIVOT SECTION WELDED D00663110100410000Y ANGLE INDICATOR D00660300101600000Y MOUNTING CYLINDER D00663118401800000_6400Y MAIN BOOM HEAD ASSY. D00663110100200000Y MAIN BOOM HEAD WELDED D00663110100210000Y NYLON PULLEY ASSY. D00663110100220000Y INSTALLATION OF ANEMOMETER SUPPORT D00661716605600000Y TIP BOOM ASSY. D00663110101400000Y NYLON PULLEY ASSY. D00663110100220000Y 3M MAIN BOOM INTERMEDIATE SECTION ASSY. D00663110100800000Y 3M MAIN BOOM INTERMEDIATE SECTION WELDED D00663110100810000Y 6M MAIN BOOM INTERMEDIATE SECTION ASSY. D00663110101000000Y 6M MAIN BOOM INTERMEDIATE SECTION WELDED D00663110101010000Y 9M MAIN BOOM INTERMEDIATE SECTION ASSY. D00663110101200000Y 9M MAIN BOOM INTERMEDIATE SECTION WELDED D00663110101210000Y 9M MAIN BOOM INTERMEDIATE SECTION A ASSY. D00663110100600000Y 9M MAIN BOOM INTERMEDIATE SECTION A WELDED D00663110100610000Y MAIN BOOM TILTING-BACK SUPPORT D00663003100200002Y MAIN BOOM GUY LINES D00663115400200000Y INSTALLATION OF INTERMEDIATE TENSIONER D00663115400800000Y MAIN BOOM ASSEMBLY D00663024700400000Y FIXED JIB D00663110200000000Y FIXED JIB PIVOT SECTION D00663020200200000Y FIXED JIB HEAD ASSY. D00663110200200000Y FIXED JIB HEAD WELDED D00663110200210000Y RUNNING WHEEL ASSEMBLY D00663020200420000Y NYLON PULLEY ASSY. D00663110100220000Y 6M FIXED JIB INTERMEDIATE SECTION D00663020200600000Y FRONT TILTNG-BACK SUPPORT OF FIXED JIB D00663003100600001Y REAR TILTING-BACK SUPPORT OF FIXED JIB D00663053100200000Y FA-FRAME D00663117800000000Y DRIVEN SPROCKET ASSY. D00663117800400000Y NYLON PULLEY ASSY. D00663110100220000Y FIXED JIB FRONT GUY LINES D00663115400600000Y FIXED JIB REAR GUY LINES D00663115400400000Y INSTALLATION OF SIGNBOARD D00663114700400000Y INSTALLATION OF SIGNS ON THE BOOM FRAME D00663117000400000Y ENGINE ASSEMBLY D00663111000000000Y FUEL SUPPLY SYSTEM D00663111100000000Y EXHAUST SYSTEM D00663111200000000Y COOLING SYSTEM D00663111300000000Y RADIATOR ASSY. D1000300334_100026Y AIR INTAKE SYSTEM D00663111400000000Y COMPOUND AIR FILTER ASSY. D1000100012_100007Y FIXING DEVICE FOR SLEWING TABLE D00663114700200000Y ROPE SUPPORT INSTALLATION OF SLEWING TABLE FRONT SECTION D00663114701600000Y ROPE SUPPORT INSTALLATION OF SLEWING TABLE REAR SECTION D00663114701000000Y COVER PLATE INSTALLATION D00663114700600000Y FIXATION OF OIL SUCTION PIPE OF MAIN PUMP D00663114701200000Y INSTALLATION OF NYLON CUSHION BLOCK D00663114700800000Y INCLINOMETER INSTALLATION D00663604703200000Y COUNTERWEIGHT ASSEMBLY D00663114900000000Y COUNTERWEIGHT LIFTING CYLINDER D00663118403700000_6400Y A-FRAME ASSY. D00663111800000000Y REAR ANCHORING RODS OF A-FRAME D00663111800200000Y MOVEABLE PULLEY ASSY. ON A-FRAME D00663031800200000Y BOARDING INSATLLATION D00663110510200000Y LEFT HOOD D00663110510210000Y RIGHT HOOD D00663110510220000Y FRONT SECTION OF RIGHT HOOD D00663110510230000Y BASE SEAL PLATE INSTALLATION OF BOARDING D00663110510400000Y STICKING OF SOUND ABSORPTION COTTON D00663110510610000Y STICKING OF NONSLIPPING LABEL D00663110510620000Y GUARD RAIL INSTALLATION D00663110510800000Y INSTALLATION OF OIL COOLER PROTECTIVE COVER D00663110500600000Y AIR CONDITIONING D00663117600000000Y COOLING & HEATING DEVICE D1130100675_100026Y INSTALLATION OF SIGNS ON SLEWING TABLE D00663117000600000Y HOISTING WINCH 1 (I) D00663113500200000Y LOWERING LIMIT SWITCH D00663113500220000Y LINDER 210 MOTOR+BUCHER BALANCE VALVE D00663113500210000Y HOISTING WINCH 1 D00663113500400000Y LINDER 165 MOTOR+BUCHER BALANCE VALVE D00663113500430000Y WINCH REDUCER D1030201281_100014Y WINCH REDUCER (PRIMARY PLANET CARRIER ASSY.) D1030201281_100014Y WINCH REDUCER (SECONDARY PLANET CARRIER ASSY.) D1030201281_100014Y WINCH REDUCER (THIRD PLANET CARRIER ASSY.) D1030201281_100014Y HOISTING WINCH 2 (I) D00663113500600000Y LOWERING LIMIT SWITCH D00663113500220000Y LINDER 210 MOTOR+BUCHER BALANCE VALVE D00663113500210000Y HOISTING WINCH 2 D00663113500800000Y LINDER 165 MOTOR+BUCHER BALANCE VALVE D00663113500430000Y WINCH REDUCER D1030201281_100014Y WINCH REDUCER (PRIMARY PLANET CARRIER ASSY.) D1030201281_100014Y WINCH REDUCER (SECONDARY PLANET CARRIER ASSY.) D1030201281_100014Y WINCH REDUCER (THIRD PLANET CARRIER ASSY.) D1030201281_100014Y 50T LOAD HOOK (55 US TON) D00663114200200000_100017Y 30T LOAD HOOK (33 US TON) D00663114200400000_100017Y LOAD HOOK (8T) D00663024200600000_100017Y LOAD HOOK (8T) D00663024200600000_100018Y 100T LOAD HOOK (110 US TON) D00663114100000000_100017Y WINCH WITH FREE-FALL FUNCTION D00663113501410001Y LINDER 105 MOTOR+BUCHER BALANCE VALVE D00663113501010000Y BRAKE ASSY. D00663113501600000Y LEFT BRAKE BAND ASSY. D00663113501610000Y RIGHT BRAKE BAND ASSY. D00663113501620000Y BRAKE CYLINDER D1010200343_6400Y DERRICKING PULLEY BLOCK D00663112100000000Y PULLEY ASSY. D00663000100640002Y DERRICKING MECHANISM D00663112000000000Y DERRICKING MOTOR+BALANCE VALVE D00663112000200000Y PLUNGER MOTOR D1010100003_100025Y DERRICKING REDUCER D1030201321_100014Y DERRICKING REDUCER (PRIMARY PLANET CARRIER ASSY.) D1030201321_100014Y DERRICKING REDUCER (SECONDARY PLANET CARRIER ASSY.) D1030201321_100014Y RATCHET WHEEL MECHANISM D00663003700000001Y RATCHET WHEEL CYLINDER D00663307500000001_6400Y SLEWING MECHANISM D00663114400000000Y HYDRAULIC MOTOR D1010100076_100033Y SLEWING REDUCER D1030200565_100013Y SLEWING RING ASSEMBLY D00663024500000000Y INSTALLATION OF SIGNS ON THE OPERATOR'S CAB D00663117000200000Y INSTALLATION OF CAB PEDAL D00663054701000000Y OPERATOR’S CAB ASSEMBLY D00663110700000000Y UNDERCARRIAGE CENTRAL SECTION ASSEMBLY D00663112800800000Y ADDITIONAL SUPPORT INSTALLATION D00663112800620000Y LEFT CRAWLER CARRIER ASSY. D00663112400000000Y TRAVELING MOTOR D1030200742_100033Y TRAVELING REDUCER D1030200733_100013Y TRAVELING REDUCER D1030200733_100014Y TRAVELING REDUCER (PRIMARY PLANET CARRIER ASSY.) D1030200733_100014Y TRAVELING REDUCER (SECONDARY PLANET CARRIER ASSY.) D1030200733_100014Y TRAVELING REDUCER (THIRD PLANET CARRIER ASSY.) D1030200733_100014Y RIGHT CRAWLER CARRIER ASSY. D00663112500000000Y TRAVELING MOTOR D1030200742_100033Y TRAVELING REDUCER D1030200733_100013Y TRAVELING REDUCER D1030200733_100014Y TRAVELING REDUCER (PRIMARY PLANET CARRIER ASSY.) D1030200733_100014Y TRAVELING REDUCER (SECONDARY PLANET CARRIER ASSY.) D1030200733_100014Y TRAVELING REDUCER (THIRD PLANET CARRIER ASSY.) D1030200733_100014Y FOLDING BRACKET INSTALLATION D00663115800000000Y SUPPORT PLATE INSTALLATION D00663110800000000Y SUPPORT CYLINDER D00663118400700000_6400Y CRAWLER CARRIER EXTENDING & RETRACTING CYLINDER D00663118401600000_6400Y INSTALLATION OF SIGNS ON CRANE UNDERCARRIAGE D00663117000800000Y SLEWING TABLE ELECTRICS D00663116300000000Y CAMERA INSTALLATION DIAGRAM D00663006320600002Y ELECTRICAL CONTROL BOX ASSY FOR SLEWING TABLE D00663116300400000Y WIRE HARNESS OF JUNCTION BOX (1) D00663116300210001Y WIRE HARNESS OF JUNCTION BOX (2) D00663116300220001Y WIRE HARNESS OF JUNCTION BOX (3) D00663116300230001Y WIRE HARNESS OF JUNCTION BOX (4) D00663116300240001Y WIRE HARNESS OF OPERATOR'S CAB ON SLEWING TABLE D00663116300250001Y TRANSITION CABLE OF SLEWING TABLE D00663116300260001Y OPERATOR’S CAB ELECTRICS D00663116200000000Y ELECTRICAL CONTROL BOX ASSY FOR OPERATOR'S CAB D00663116200210001Y OPERATING CONSOLE ASSY D00663116200220001Y RIGHT CONTROL PANEL ASSY D00663116200230001Y LEFT CONTROL PANEL ASSY FOR THREE WINCHES WITH FREE-FALL FUNCTIONS D00663116200270000Y MAIN BOOM ELETRICS D00663116400200000Y MAIN BOOM WIRE HARNESS D00663116400210001Y FIXED JIB ELECTRICS D00663116400400000Y WIRE HARNESS OF FIXED JIB D00663116400410001Y LOAD MOMENT LIMITER ASSY D1021402859_102316Y ELECTRICAL SYSTEM DIAGRAM D00663116100001010Y ELECTRICAL SYSTEM DIAGRAM D00663116100001010Y ELECTRICAL SYSTEM DIAGRAM D00663116100001010Y ELECTRICAL SYSTEM DIAGRAM D00663116100001010Y ELECTRICAL SYSTEM DIAGRAM D00663116100001010Y ELECTRICAL SYSTEM DIAGRAM D00663116100001010Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM D00663111700000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM D00663111700000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM D00663111700000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM D00663111700000000Y CENTRAL REVOLVING JOINT INSTALLATION D00663004811600000Y UNDERCARRIAGE CONTROL VALVE INSTALLATION D00663114801800000Y TWO-WAY HYDRAULIC LOCK D1010300280_6500Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM D00663111710000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM D00663111710000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM D00663111710000000Y CENTRAL REVOLVING JOINT INSTALLATION D00663004811600000Y UNDERCARRIAGE CONTROL VALVE INSTALLATION D00663114801800000Y PIPE LAYOUT- HOISTING WINCH 1 WITHOUT FREE-FALL FUNCTION D00663113500450000Y PIPE LAYOUT- HOISTING WINCH 2 WITHOUT FREE-FALL FUNCTION D00663113500810000Y PIPE LAYOUT – HOISTING WINCH 1 WITH FREE-FALL FUNCTION D00663113500240000Y PIPE LAYOUT – HOISTING WINCH 2 WITH FREE-FALL FUNCTION D00663113500610000Y PIPE LAYOUT – HOISTING WINCH 3 WITH FREE-FALL FUNCTION D00663113501430000Y PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM (Power system ) D00663111600000001Y PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM (Radiator assy) D00663111600000001Y PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM (Derricking system) D00663111600000001Y PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM (Slewing system) D00663111600000001Y PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM (Boom lifting system) D00663111600000001Y PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM (Control system) D00663111600000001Y PILOT VALVE INSTALLATION D00663114802400000Y CONTROL VALVE INSTALLATION D000663114800800000Y CONTROL VALVE BLOCK I D1010300433_100029Y MAIN VALVE INSTALLATION D00663114800200000Y HYDRAULIC OIL TANK INSTALLATION D00663114800400000Y ACCUMULATOR INSTALLATION D00663004811200000Y OIL COOLER INSTALLATION D00663114800600000Y RADIATOR DEVICE D1010400009_100026Y PRESSURE OIL FILTER INSTALLATION D00663114802800000Y CONTROL PRESSURE RELIEF VALVE INSTALLATION D00663114801200000Y FILTER INSTALLATION OF WINCH WITH FREE-FALL FUNCTION D00663114801000000Y PRESSURE OIL FILTER D1010600016_101375Y UPGRADE COUNTERWEIGHT CYLINDER VALVE INSTALLATION D00663114803000000Y CONTROL VALVE BLOCK D1010303898_100029Y CONSTANT PRESSURE PUMP CONTROL VALVE INSTALLATION D00663114803200000Y CONTROL VALVE BLOCK D1010303895_100029Y LIFTING VALVE BLOCK INSTALLATION D00663114802200000Y BOOM LIFTING VALVE BLOCK D1010302667_6500Y COOLER INSTALLATION D00663114802000000Y COMBINATION VALVE BLOCK D1010300423_100029Y SOLENOID BALL VALVE INSTALLATION D00663114801600000Y CONTROL VALVE D1010301868_6500Y BALANCE VALVE D1010300200_100029Y VARIABLE PUMP D1010001069_100025Y VARIABLE PUMP D1010001069_100025Y VARIABLE PUMP D1010001069_100025Y VARIABLE PUMP D1010001069_100025Y VARIABLE PUMP D1010001069_100025Y VARIABLE PUMP D1010001069_100025Y VARIABLE PUMP D1010001069_100025Y VARIABLE PUMP D1010001069_100025Y VARIABLE PUMP D1010001069_100025Y GEAR PUMP D1010000078_100028Y OIL PUMP DRIVE DEVICE D00663113900000000Y HYDRAULIC OIL TANK D00663113000000000Y RETURN-LINE FILTER D1010600009_101281Y HYDRAULIC SYSTEM DIAGRAM D00663111500000001Y

1

2

3

4

5

7

8

9

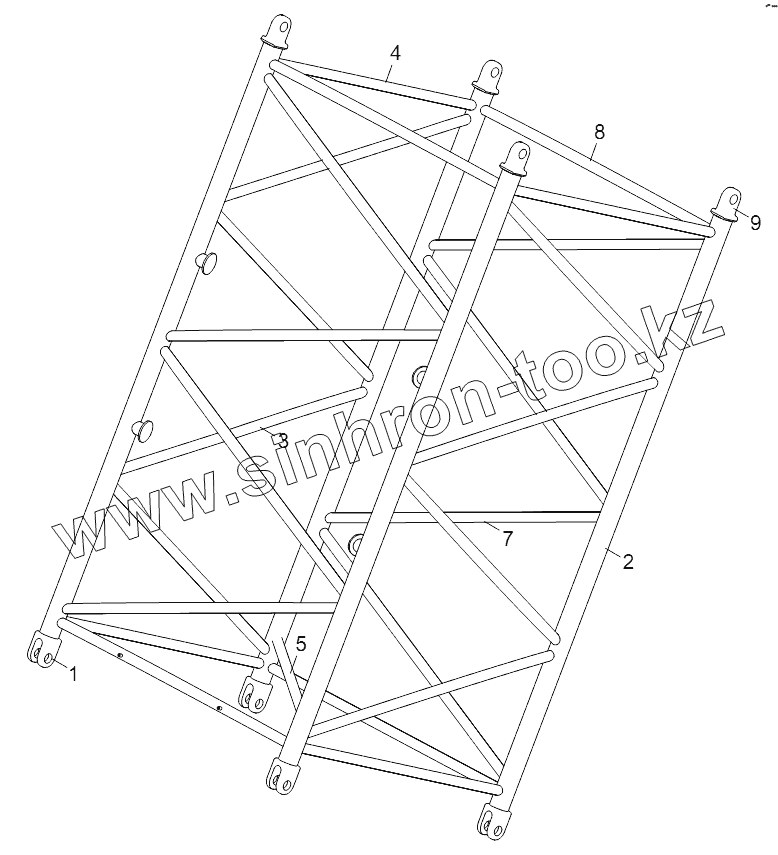

Позиция на иллюстрации	Заводской номер детали		Название детали
00663110100810000	00663110100810000		3m main boom intermediate section welded
1	1992000032		Double hinge lug
2	00663020100801020		Chord
3	00663020100801030		Web member
4	00663020100801040		Web member
5	00663020100801050		Diagonal link
7	00663020100801060		Web member
8	00663020100801070		Straight rod
9	1992000015		Single hinge lug
