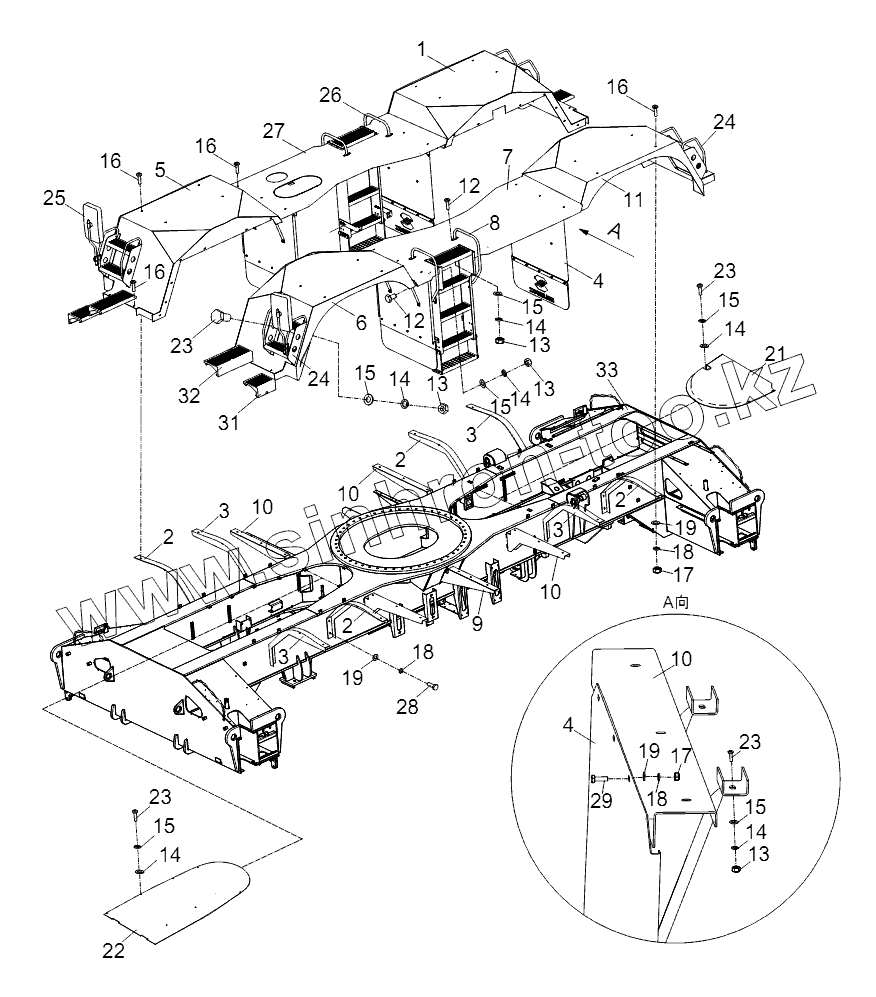

Каталог запасных частей к технике: Zoomlion RT-75. WHEEL HOUSING AND PLATFORM INSTALLATION

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2
2
2
3
3
3
3
4
4
5
6
7
8
9
10
10
10
10
11
12
12
13
13
13
13
14
14
14
14
14
14
15
15
15
15
15
15
16
16
16
16
17
17
18
18
18
19
19
19
21
22
23
23
23
23
24
24
25
26
27
28
29
31
32
33
Позиция на иллюстрации Заводской номер детали Название детали
00758115200000002 00758115200000002 Wheel housing and platform installation
1 00758115201600000 Right rear wheel housing
2 00758115200001021 Wheel housing bracket I
3 00758115200001031 Wheel housing bracket II
4 00757915210600000 Mudguard
5 00758115202400000 Right front wheel housing
6 00758115202600000 Left front wheel housing
7 00758115202800000 Left intermediate cover plate
8 00758115203200000 Left intermediate stair
9 00758115203600000 Intermediate cover plate bracket II
10 00758115203400000 Intermediate cover plate bracket I
11 00758115203800000 Left rear wheel housing
12 1040000132 Bolt
13 1040200759 Nut
14 1040300067 Washer
15 1040300061 Washer
16 1040101190 Screw
17 1040200192 Nut
18 1040300063 Washer
19 1040300066 Washer
20 1990300216 3M anti-skid pad
21 00758115204200001 Rear cover plate, chassis frame
22 00758115204400000 Front cover plate, chassis frame
23 1040002433 Bolt
24 00758115204600000 Ladder, housing
25 00758115204800001 Rearview mirror assy
26 00758115205000000 Right intermediate stair
27 00758115205200000 Right intermediate cover plate
28 1040000267 Bolt
29 1040000288 Bolt
30 1040001680 Bolt
31 00758115200001050 Small pedal
32 00758115200001040 Big pedal
33 Chassis Chassis attachments welded
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
