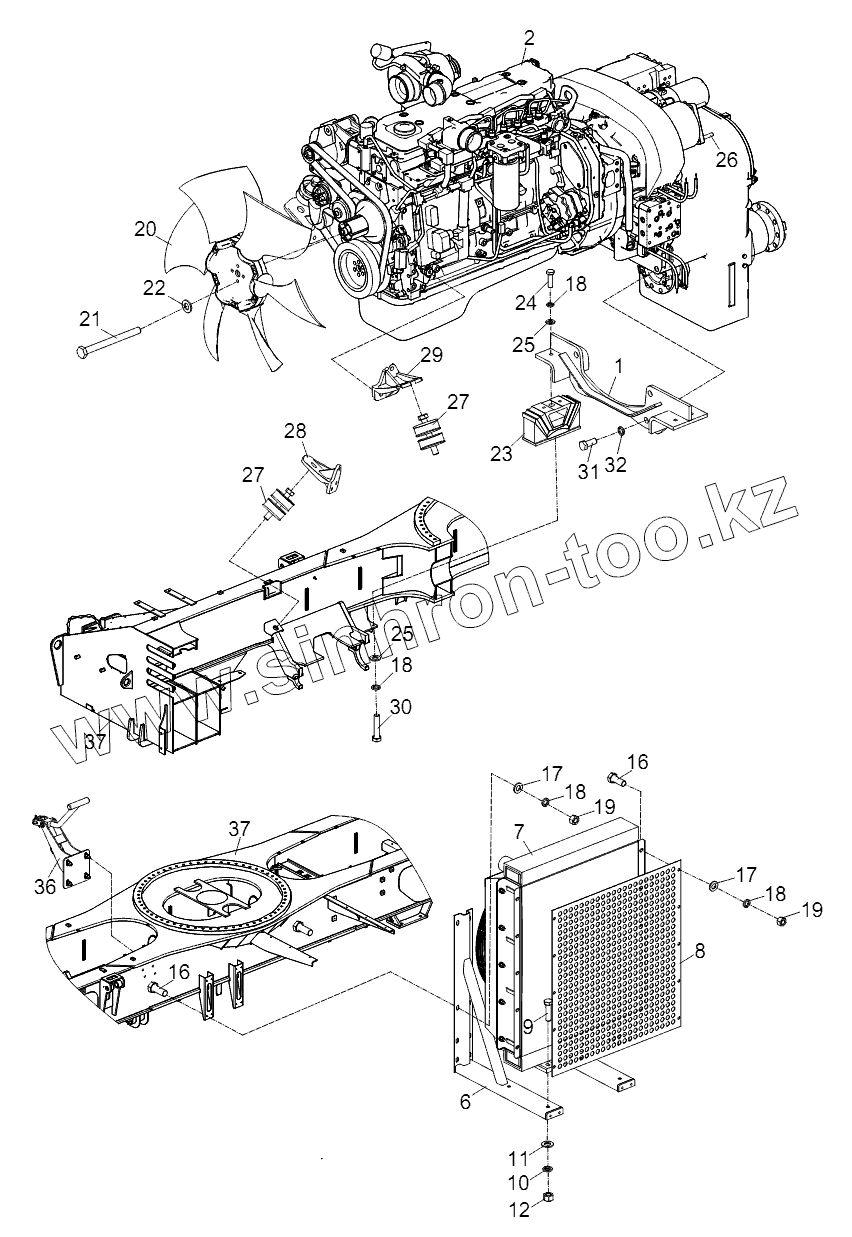

Каталог запасных частей к технике: Zoomlion RT-75. TRANSMISSION AND ENGINE INSTALLATION
1
2
6
7
8
9
10
11
12
16
16
17
17
18
18
18
18
19
19
20
21
22
23
24
25
25
26
27
27
28
29
30
31
32
36
37
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00758111720000000 | 00758111720000000 | Transmission and engine installation | |
| 1 | 00758111710200001 | Transmission bracket | |
| 2 | 00758111720200000 | Transmission and engine pre-assembly | |
| 3 | 00758111711200001 | Pipe assembly, transmission and engine insta llation | |
| 4 | 00757911700401010 | Bolt | |
| 5 | 1040300067 | Washer | |
| 6 | 00758111711000000 | Transmission radiator bracket | |
| 7 | 1030300120 | Transmission radiator | |
| 8 | 00757901030001120 | Stainless steel plate | |
| 9 | 1040000928 | Bolt | |
| 10 | 1040300068 | Washer | |
| 11 | 1040300055 | Washer | |
| 12 | 1040200112 | Nut | |
| 13 | 1040000018 | Bolt | |
| 14 | 1040300063 | Washer | |
| 15 | 1040200192 | Nut | |
| 16 | 1040000108 | Bolt | |
| 17 | 1040300041 | Washer | |
| 18 | 1040300054 | Washer | |
| 19 | 1040200096 | Nut | |
| 20 | 1009900547 | Fan | |
| 21 | 1040000231 | Bolt | |
| 22 | 1040300533 | Washer | |
| 23 | 1001500003 | Wedge support assy | |
| 24 | 1040001081 | Bolt | |
| 25 | 1040300225 | Seal ring | |
| 26 | 00758111710001010 | Bolt | |
| 27 | 1999901451 | Resilient mounting | |
| 28 | 1999900789 | CUMMINS engine bracket | |
| 29 | 1999900790 | CUMMINS engine bracket | |
| 30 | 1040000926 | Bolt | |
| 31 | 00757911700001010 | Bolt | |
| 32 | 1040300038 | Washer | |
| 33 | 1029900500 | Thermostate | |
| 34 | 202230016 | Loctite glue | |
| 35 | 1089900244 | Transmission oil | |
| 36 | 00758111720400000 | PTO | |
| 37 | Chassisframe | Chassis frame assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
