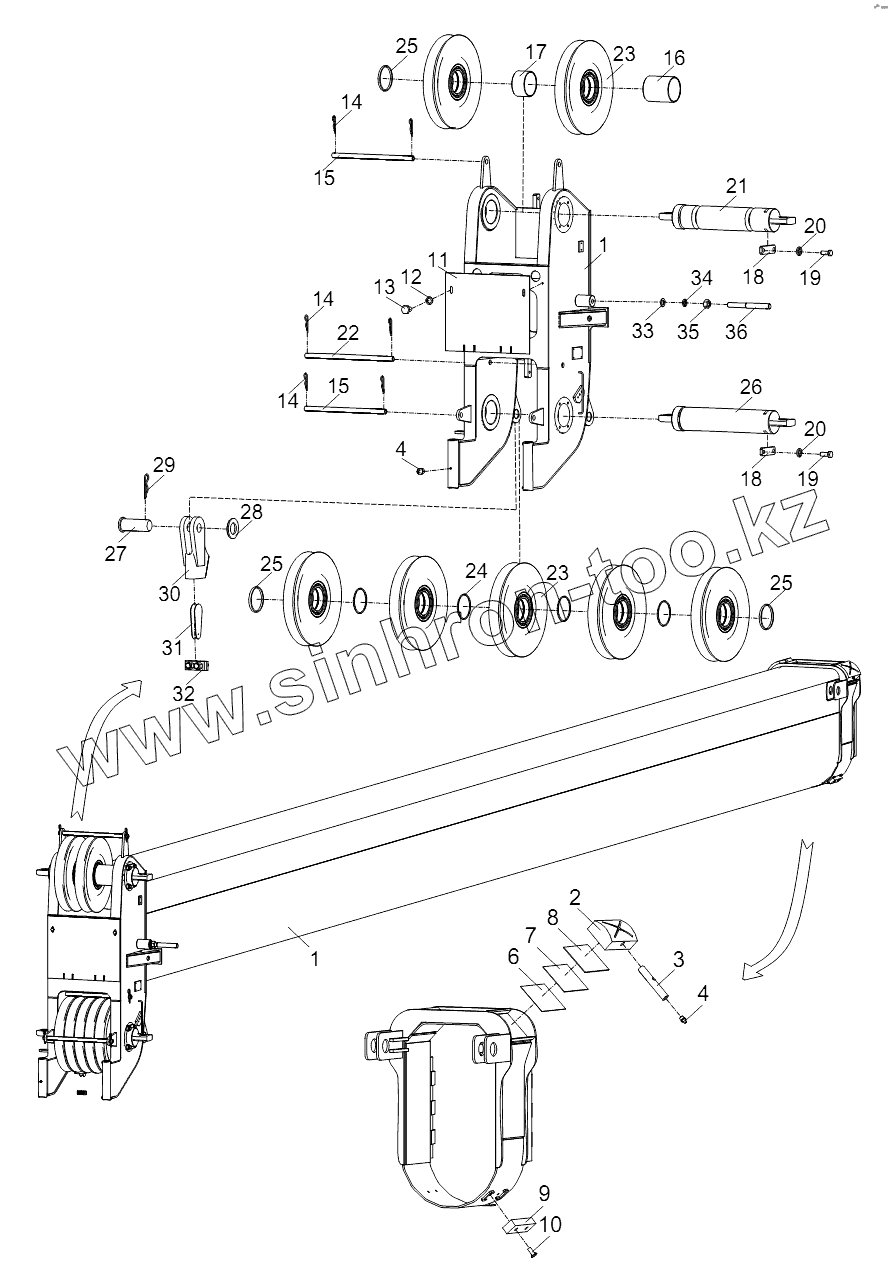

Каталог запасных частей к технике: Zoomlion RT-75. TELESCOPIC BOOM SECTION 3 ASSY
1
1
2
3
4
4
6
7
8
9
10
11
12
13
14
14
14
15
15
16
17
18
18
19
19
20
20
21
22
23
23
24
25
25
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00756118800000000 | 00756118800000000 | Telescopic boom section 3 assy | |
| 1 | 00756118800200000 | Telescopic boom section 3 welded | |
| 2 | 00756118800001010 | Slide block | |
| 3 | 00756118800001020 | Sleeve | |
| 4 | 1019900312 | Oil cup | |
| 5 | 204110014 | Lithium-based Grease | |
| 6 | 00756118800001030 | Plate | |
| 7 | 00756118800001040 | Plate | |
| 8 | 00756118800001050 | Plate | |
| 9 | 00756118800001060 | Slide block | |
| 10 | 1040101199 | Screw | |
| 11 | 00756118800001070 | Plate 1 | |
| 12 | 1040300067 | Washer | |
| 13 | 1040001175 | Bolt | |
| 14 | 006340000007 | Spring-loaded pin | |
| 15 | 00756118800001090 | Pipe 1 | |
| 16 | 00756118800001100 | Spacer sleeve 1 | |
| 17 | 00756118800001110 | Spacer sleeve 2 | |
| 18 | 00756118800001120 | Plate 2 | |
| 19 | 1040000518 | Bolt | |
| 20 | 1040300054 | Washer | |
| 21 | 00756118800400000 | Upper pulley shaft | |
| 22 | 00756118800001130 | Pipe 2 | |
| 23 | 00756118800600000 | Pulley assy | |
| 24 | 00756118800001140 | Spacer sleeve 3 | |
| 25 | 00756118800001150 | Spacer sleeve 4 | |
| 26 | 00756118800001160 | Lower pulley shaft | |
| 27 | 00756118800001170 | Pin 1 | |
| 28 | 00756118800001180 | Washer | |
| 29 | 006340000001 | Spring-loaded pin | |
| 30 | 1090100296 | Wedge sleeve | |
| 31 | 1090100439 | Wedge | |
| 32 | 1090100437 | Wire rope clamp | |
| 33 | 1040300033 | Washer | |
| 34 | 1040300088 | Seal ring | |
| 35 | 1040200175 | Nut | |
| 36 | 00756118800001190 | Terminal |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
