Каталог запасных частей к технике: Zoomlion RT-75. PULLEY ASSY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано Remarks RT75 ROUGH TERRAIN CRANE BASIC BOOM ASSY TELESCOPIC BOOM SECTION 1 ASSY PULLEY ASSY TRLESCOPIC BOOM SECTION 2 ASSY PULLEY ASSY TELESCOPIC BOOM SECTION 3 ASSY PULLEY ASSY ROOSTER SHEAVE PULLEY ASSY MAIN BOOM ASSY ROPE GUIDE ASSY MAIN BOOM INSTALLATION JIB ROLLER PULLEY ASSY PULLEY ASSY JIB INSTALLATION TELESCOPING SYSTEM PULLEY HEAD ASSY GUIDE PULLEY ASSY PULEY ASSY TELESCOPING CYLINDER DEERICKING CYLINDER DEEERICKING CYLINDER INSTALLATION SECURING DEVICE FOR HOOK ROOSTER SHEAVE INSTALLATION NAME PLATE (CHINESE AND ENGLISH VERSIONS) NAME PLATE (ENGLISH VERSION) CHASSIS FRAME ASSEMBLY TOOLBOX WHEEL HOUSING AND PLATFORM INSTALLATION FUEL SUPPLY SYSTEM PREHEATING STARTER PROPELLER SHAFT ASSEMBLY TRANSMISSION AND ENGINE INSTALLATION TRANSMISSION AND ENGINE PRE-ASSEMBLY PTO ENGINE HOUSING AND ITS INSTALLATION ENGINE HOUSING EXHAUST SYSTEM REAR OVERHANG SUSPENSION CYLINDER MAIN REDUCER ASSY 1 MAIN REDUCER ASSY 2 BRAKE ASSY AXLE SHELL ASSY LATERAL ASSY 1 LATERAL ASSY 2 WHEEL AND RIM MAIN REDUCER ASSY BRAKE ASSY AXLE SHELL ASSY LATERAL ASSY 1 LATERAL ASSY 2 STEERING SYSTEM STEERING CYLINDER INTERCOOLING SYSTEM COOLING SYSTEM AIR INTAKE SYSTEM AIR FILTER VERTICAL CYLINDER HORIZONTAL CYLINDER OUTRIGGER ASSEMBLY OUTRIGGER SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM OPERATOR’S CAB ELECTRICS SLEWING TABLE ELECTRICS BOOM ELECTRICS CHASSIS FRAME ELECTRICS 1 CHASSIS FRAME ELECTRICS 2 CENTRE REVOLVING JOINT INSTALLATION CENTRE REVOLVING JOINT HYDRAULIC OIL TANK INSTALLATION HYDRAULIC OIL TANK HYDRAULIC OIL RADIATOR INSTALLATION RADIATOR OIL PUMP DRIVE DEVICE OUTRIGGER CONTROL VALVE BLOCK INTALLATION FLUID FILLING VALVE INSTALLATION BRAKE VALVE ASSY INSTALLATION HIGH-PRESSURE OIL FILTER INSTALLATION ACCUMULATOR INSTALLATION RELIEF CONTROL VALVE BLOCK INSTALLATION STEERING CONTROL VALVE BLOCK INSTALLATION LOCKING SOLENOID VALVE INSTALLATION LOCKING SOLENOID VALVE STEERING CONTROL VALVE BLOCK OUTRIGGER CONTROL VALVE BLOCK RELIEF CONTROL VALVE BLOCK OUTRIGGER HYDRAULIC LOCK INSTALLATION SLEWING CUSHION VALVE INSTALLATION PILOT-OPERATED CONTROL VALVE BLOCK INSTALLATION PIPE FILTER INSTALLATION DERRICKING TELESCOPING VALVE INSTALLATION WINCH VALVE INSTALLATION PRIORITY VALVE INSTALLATION SLEWING BRAKE VALVE INSTALLATION PILOT OIL SOURCE BLOCK INSTALLATION SOLENOID VALVE BLOCK INSTALLATION PILOT-OPERATED VALVE INSTALLATION SLEWING BRAKE VALVE PILOT OIL SOURCE BLOCK SLEWING CUSHION VALVE PILOT-OPERATED DIRECTIONAL CONTROL VALVE DAMPER VALVE RELIEF VALVE CUSHION VALVE PILOT-OPERATED CONTROL VALVE BLOCK PILOT-OPERATED VALVE SOLENOID VALVE BLOCK TELESCOPING BALANCE VALVE INSTALLATION TELESCOPING BALANCE VALVE DERRICKING BALANCE VALVE INSTALLATION HOISTING BALANCE VALVE INSTALLATION COUNTERWEIGHT BALANCE VALVE INSTALLATION CAB VALVE INSTALLATION (PILOT-OPERATED CONTROL JOYSTICK) CAB VALVE INSTALLATION (FOOT-OPERATED INSTALLATION) SCHEMATIC DIAGRAM-HYDRAULIC SYSTEM (RT75B) SWING SYSTEM RUDUCER SWING BEARING ASSEMBLY SWING LOCKOUT DEVICE SWING LOCKOUT CYLINDER MAIN WINCH MECHANISM WINCH REDUCER AUXILAIRY WINCH MECHANISM WINCH REDUCER WINDSHIELD INSTRUMENT CONSOLE ARRANGEMENT Front WINDSHILED WIPER SYSTEM FOOT PEDAL DRIVER'S CAB (A/C) DRIVER'S CAB (SEAT) DRIVER'S CAB ASSY GUARD BOARD AND INTERIOR DECORATIVE PLATE ROOF WIPER SYSTEM AND FAN ROOF WINDOW DOOR ASSY DRIVER'S CAB PRE-ASSEMBLY AIR CONDITIONING SPECIAL A/C CAB HEATER HEATER COUNTERWEIGHT HANDLER LIFTING CYLINDER ROPE GUARD BRACKET INSTALLATION

1

2

3

4

4

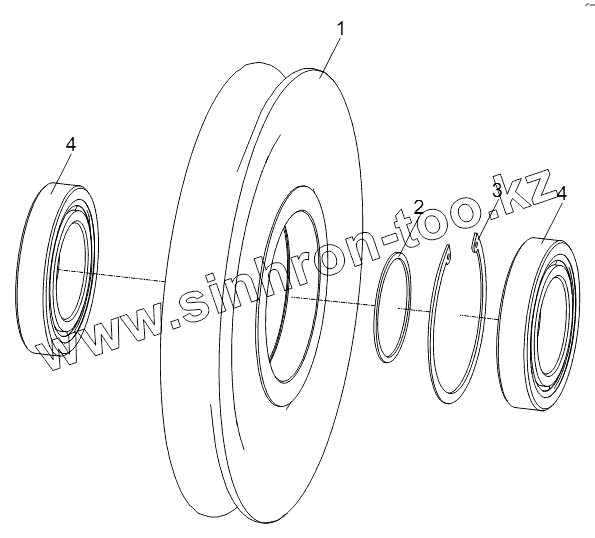

Позиция на иллюстрации	Заводской номер детали		Название детали
00755908800600000	00755908800600000		Pulley assy
1	00755908800601010		Pulley
2	00755908800601020		Spacer sleeve
3	00755908800601030		Snap ring
4	1050200113		Deep grooved ball bearing
5	204110014		Lithium-based Grease

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
