Каталог запасных частей к технике: Zoomlion RT-75. OPERATOR’S CAB ELECTRICS

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
79
80
81
82

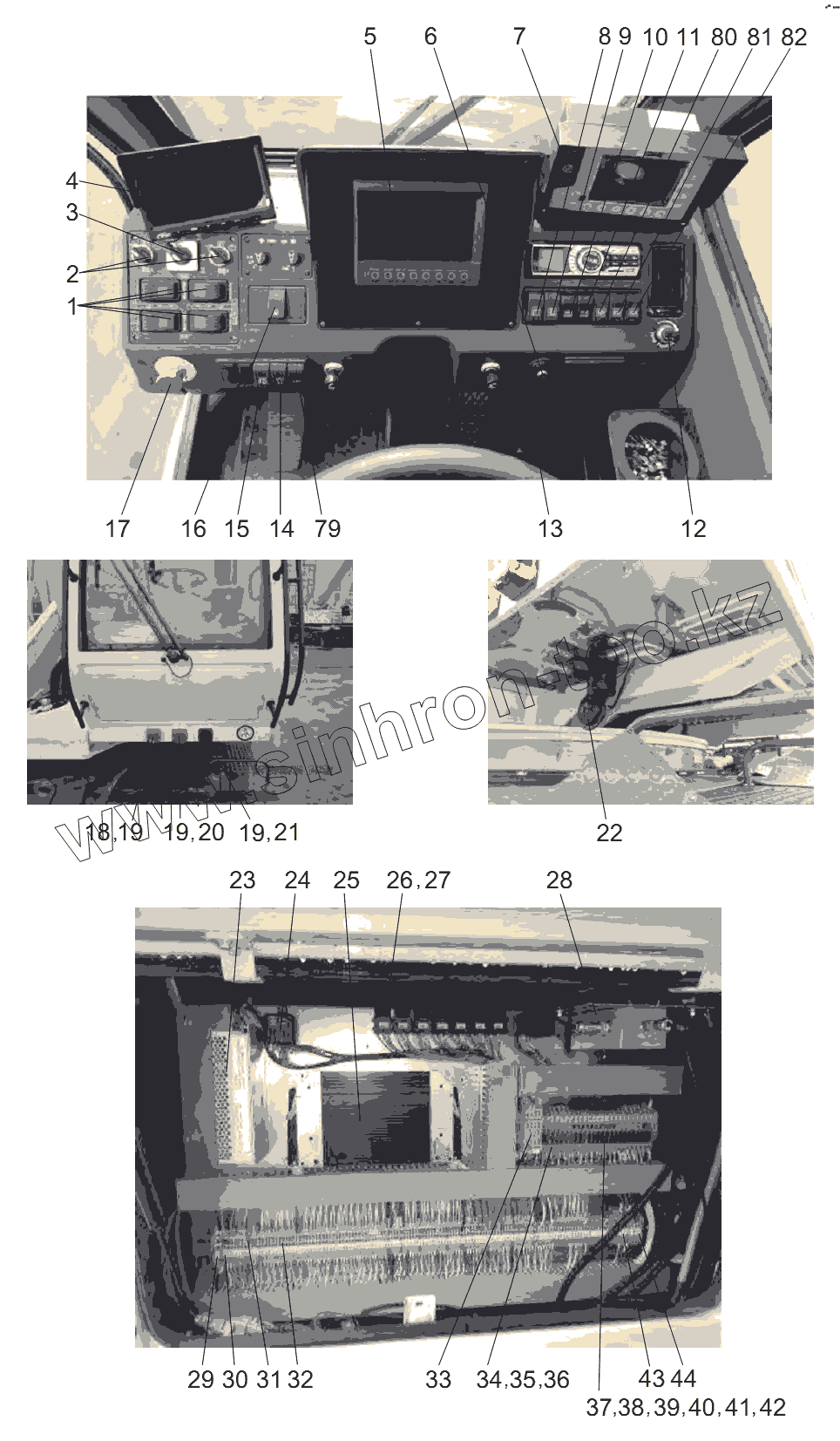

Позиция на иллюстрации Заводской номер детали Название детали
00756116240000001 00756116240000001 Electrical system
1 1029205015 Rocker switch
2 1020511314 3-position rotary switch
3 1020512065 4-stage rotary switch
4 1021402530 CQ-ZZ01 reversing system display
5 1020400422 Display assy
6 1020514006 Ignition starter switch
7 1021500435 Hirschmann Display IC4600-M
8 1020519991 Deadman switch for outriggers
9 1020519990 Swing lock switch
10 1020519982 2-wheel / 4-wheel drive switch
11 1020519983 Hand / foot throttle select switch
12 1021102240 Potential device
13 1029902421 Electron pedal
14 1020519981 Hazard lights switch
15 1020519985 Work lights switch
16 1020519984 Cab heater power switch
17 1020500214 Emergency stop button
18 1020404080 Green light
19 1020401025 Cab illumination bulb
20 1020404081 Yellow light
21 1020404079 Red light
22 1020403038 Electric horn
23 1020901053 Power source
24 1020300121 Large power relay
25 1020100047 PLC controller
26 1020604305 Relay
27 1020700985 Relay socket
28 1021500431 Hirschmann main machine HC4900-B
29 1029903055 Ground terminal
30 1029901508 Wiring terminal
31 1029901566 Ground terminal
32 1029901488 Wiring terminal
33 1020604162 Relay
34 1029901266 Wiring terminal
35 1029901219 Plate
36 1029903056 Connector
37 1020604232 Fuse
38 1020604221 Fuse
39 1020604223 Fuse
40 1020604224 Fuse
41 1020604225 Fuse
42 1020604226 Fuse
43 1029901507 Wiring terminal
44 1029903054 Wiring terminal
79 1020519996 Bypass switch
80 1020519988 Counterweight cylinders extend / retract swi tch
81 1020519986 Left counterweight cylinder extend / retract switch
82 1020519987 Right counterweight cylinder extend / retrac t switch
