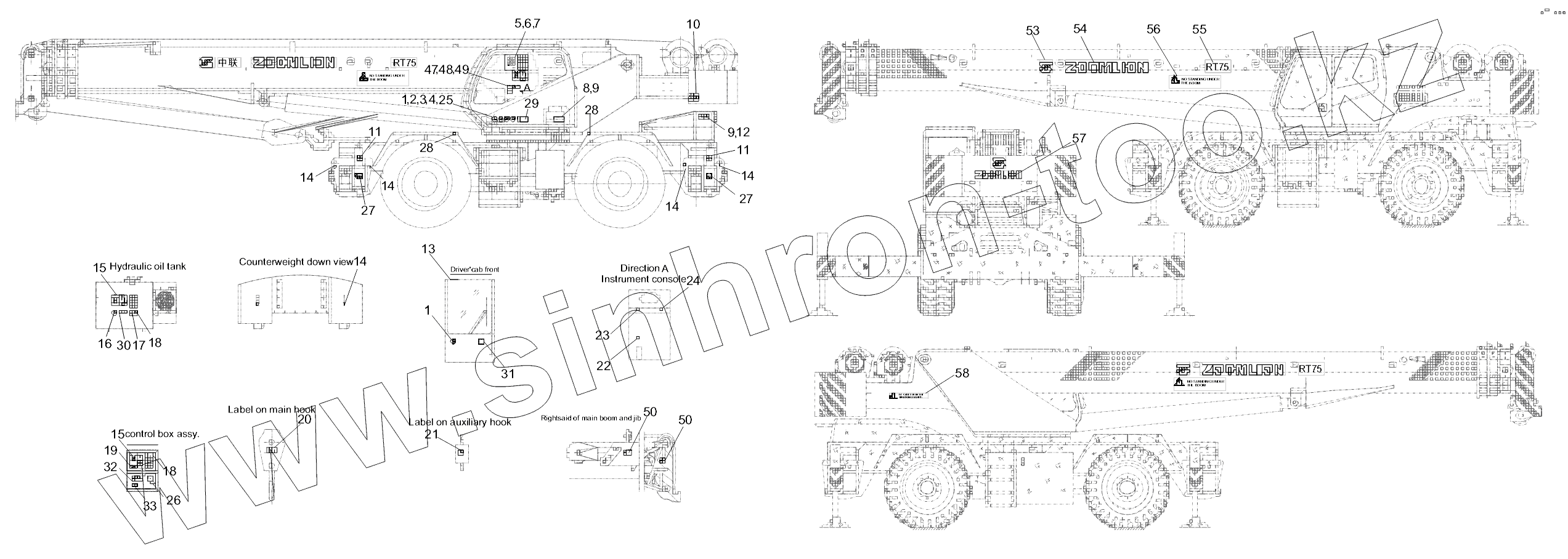

Каталог запасных частей к технике: Zoomlion RT-75. NAME PLATE (ENGLISH VERSION)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
4
5
6
7
8
9
9
10
11
11
12
13
14
14
14
14
14
15
15
16
17
18
18
19
20
21
22
23
24
25
26
27
27
28
28
29
30
31
32
33
47
48
49
50
50
53
54
55
56
57
58
Позиция на иллюстрации Заводской номер детали Название детали
00756117010000000 00756117010000000 Name plate
1 00755917000001010 Safety sign
2 00755917000001020 Safety sign
3 00755917000001030 Safety sign
4 00755917000001040 Safety sign
5 00756117000001010 Lifting height curve
6 00755917000001070 Warning sign
7 00755917000001080 Warning sign
8 006340000252 Name plate, rough terrain crane
9 1040400103 Rivet
10 00755917000001090 Warning sign
11 00755917000001100 Warning sign
12 00755917000001110 Warning sign
13 00755917000001120 Warning sign
14 00755917000001130 Lifting sign
15 00755917000001140 Warning sign
16 00755917000001150 Warning sign
17 00755917000001160 Warning sign
18 00755917000001170 Warning sign
19 00755917000001180 Warning sign
20 00756117000001020 Label on main hook
21 00755917000001200 Label on auxiliary hook
22 00755907000001210 Illustration label
23 00755907000001220 Illustration label
24 00755907000001230 Illustration label
25 00755917000001250 Warning sign
26 00755917000001260 Illustration label
27 00756117000001030 Sign, outrigger support force
28 00755917000001280 Sign, tire pressure
29 00755917000001290 Sign, operator qualification requirements
30 00755917000001300 Sign, hydraulic oil
31 00755917000001310 Sign, DO NOT lift person
32 00755917000001320 Label, control box
33 00755917000001330 Sign, power supply
34 00755917000001340 Sign, power switch
35 00755917000001350 Sign, power switch
36 00755917000001360 Sign, hook securing position
37 00755917000001370 Sign, towing position
38 00755917000001380 Sign, outrigger float retaining position
39 00755917000001390 Sign, pressure gauge A
40 00755917000001400 Sign, pressure gauge B
41 00755917000001410 Sign, valve
42 00756117000001040 Sign, valve pressure
43 00755917000001430 Sign, oil filler
44 00755917000001440 Sign, pressure testing port A
45 00755917000001450 Sign, pressure testing port B
46 00755917000001460 Sign, liquid level
47 00755917000001510 Warning sign
48 00755917000001520 Warning sign
49 00755917000001530 Warning sign
50 00755917000001550 Warning sign
51 00755707000001480 Instrument panel
52 006340000102 Name plate
52 00756117010000000 Name plate
53 00755909730401010 ZOOMLION logo I
54 00755909730401020 ZOOMLION logo II
55 00756119710401030 Product sign
56 00755909730401040 Warning sign I
57 00755909730401050 ZOOMLION logo III
58 00755909730401060 Warning sign II
