Каталог запасных частей к технике: Zoomlion RT-75. MAIN BOOM ASSY
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35

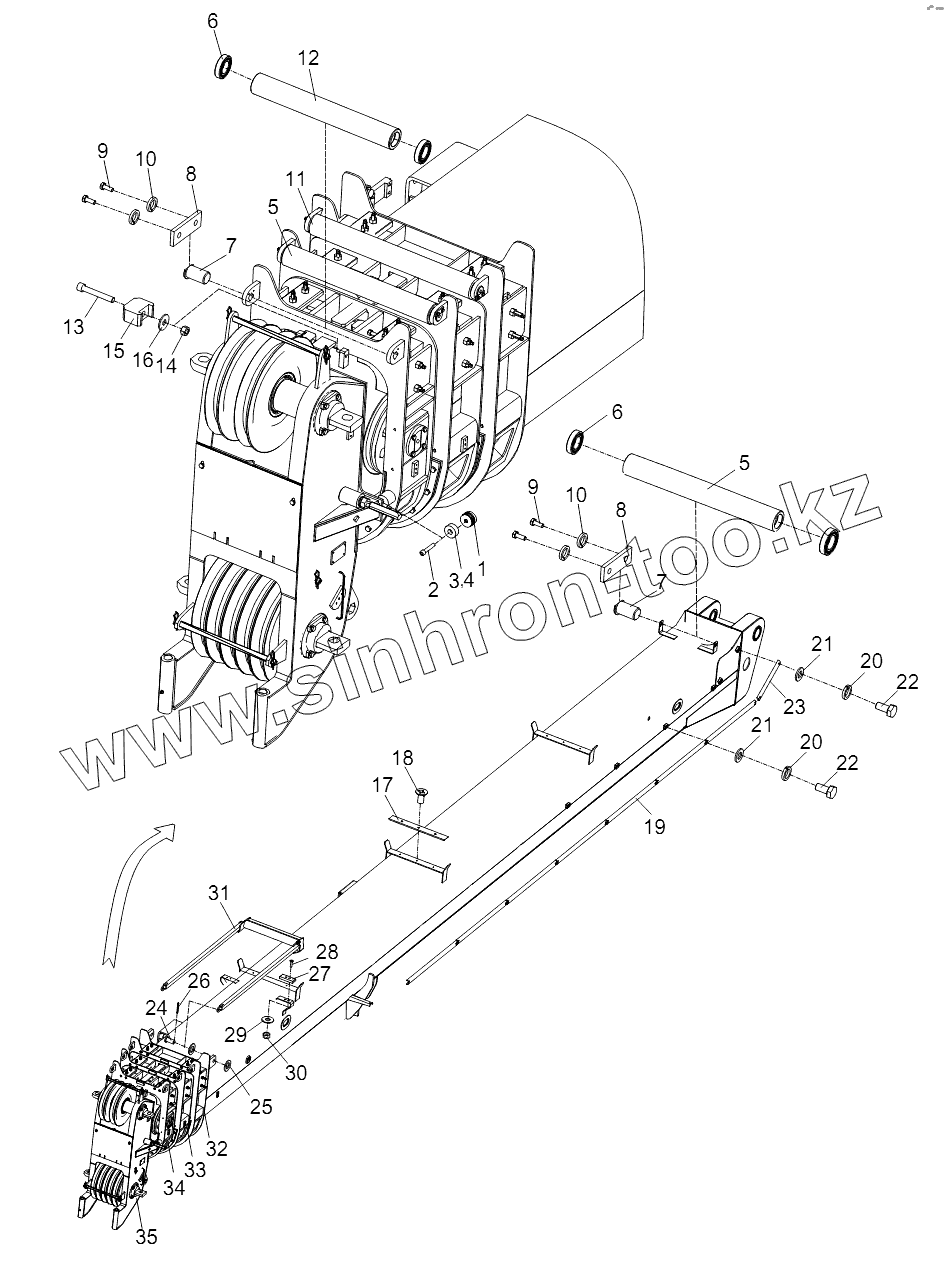

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00756110100000001 | 00756110100000001 | Main boom assy | |
| 1 | 00755900100400000 | Adjusting pad | |
| 2 | 1040100091 | Screw | |
| 3 | 00756110100001020 | Adjsuting block | |
| 4 | 00755900100001010 | Pressure plate | |
| 5 | 00631400100001050 | Drum | |
| 6 | 1050200261 | Deep grooved ball bearing | |
| 7 | 00631900100001100 | Pin | |
| 8 | 00756110100001060 | Baffle | |
| 9 | 1040000109 | Bolt | |
| 10 | 1040300062 | Washer | |
| 11 | 00631400100001040 | Drum | |
| 12 | 00631210100001040 | Drum | |
| 13 | 1040100519 | Screw | |
| 14 | 1040200096 | Nut | |
| 15 | 00756110100001090 | Aligning block | |
| 16 | 1040300233 | Washer | |
| 17 | 00631204700201020 | Lath | |
| 18 | 1040100080 | Screw | |
| 19 | 00755900100001101 | Grooved plate | |
| 20 | 1040300060 | Washer | |
| 21 | 1040300048 | Washer | |
| 22 | 1040000204 | Bolt | |
| 23 | 00756110100001111 | Grooved plate II | |
| 24 | 00755900100001190 | Pin | |
| 25 | 1040300106 | Washer | |
| 26 | 1040500057 | Pin | |
| 27 | 00755900100001181 | Pad | |
| 28 | 1040100158 | Screw | |
| 29 | 1040300063 | Washer | |
| 30 | 1040200192 | Nut | |
| 31 | 00755900100600000 | Rope guide assy | |
| 32 | Basicboomassy | Basic boom assy | |
| 33 | Telescopicboom1 | Telescopic boom section 1 assy | |
| 34 | Telescopicboom2 | Telescopic boom section 2 assy | |
| 35 | Telescopicboom3 | Telescopic boom section 3 assy |
