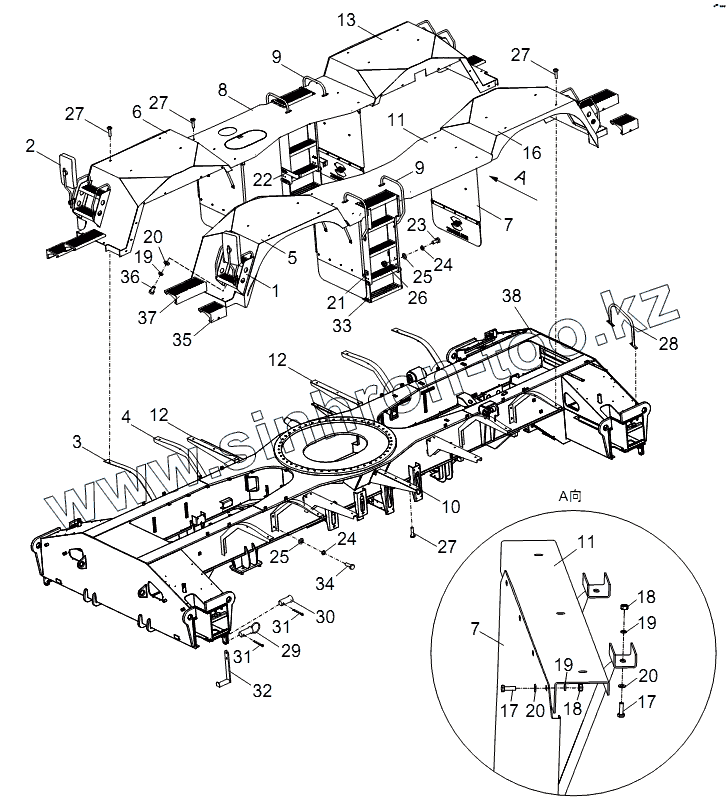

Каталог запасных частей к технике: Zoomlion RT-55. WHEEL HOUSING AND ITS INSTALLATION D00757915210000003Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7
8
9
9
10
11
11
12
12
13
16
17
17
18
18
19
19
19
20
20
20
21
22
23
24
24
25
25
26
27
27
27
27
28
29
30
31
31
32
33
34
35
36
37
38
Позиция на иллюстрации Заводской номер детали Название детали
00757915210000003 00757915210000003 Wheel housing and its installation
1 00757915210400000 Stair
2 00758115204800001 Rearview mirror assy
3 00757917800601130 Mudguard bracket I
4 00757917800601140 Mudguard bracket II
5 00757915210100000 Wheel housing
6 00757915210300000 Wheel housing
7 00757915210600000 Mudguard
8 00757915211200000 Cover plate
9 00757915211400000 Stair installation
10 00757917800620001 Cover plate bracket
11 00757915210900000 Cover plate
12 00757917800610000 Bracket welded
13 00757915210500000 Wheel housing
14 1040000132 Bolt
15 1990300216 3M anti-skid pad
16 00757915210700000 Wheel housing
17 1040000288 Bolt
18 1040200192 Nut
19 1040300063 Washer
20 1040300066 Washer
21 00757915200001090 Plate
22 00757915210201010 Plate
23 1040002433 Bolt
24 1040300067 Washer
25 1040300061 Washer
26 1040200113 Nut
27 1040101190 Screw
28 00757917810601050 Grab handle
29 00757917810640000 Securing device
30 1040500390 Pin
31 1040500005 Pin
32 00757917810630000 Stair welded
33 00757915211600000 Stair installation
34 1040001680 Bolt
35 00757915210001050 Pedal
36 1040000520 Bolt
37 00757915210001070 Pedal
38 Chassisframe Chassis frame assembly
