Каталог запасных частей к технике: Zoomlion RT-55. RT55 ROUGH TERRAIN CRANE D00755910000010000Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
8
10
13
15
16
19
21
22
29
36
42
47
54

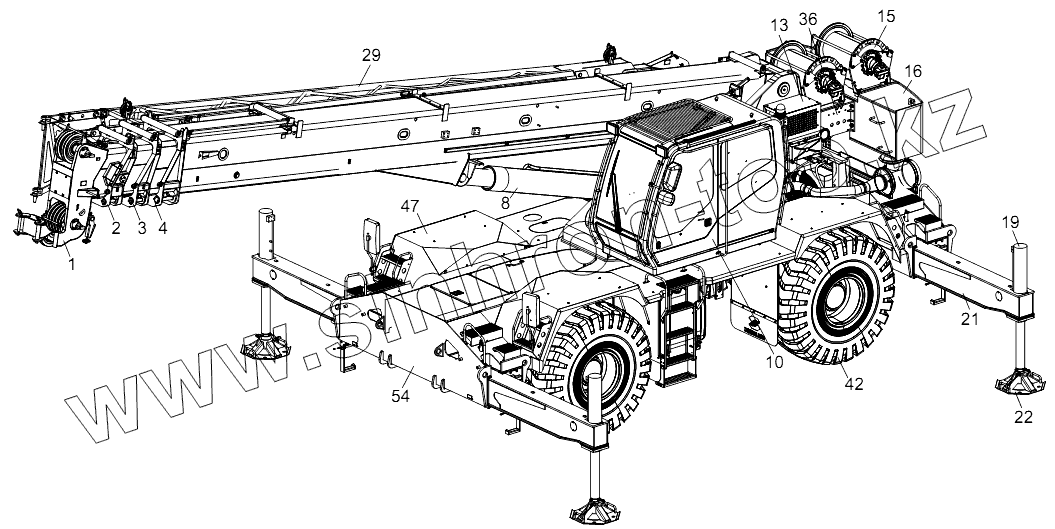

Позиция на иллюстрации Заводской номер детали Название детали
00755910000010000 00755910000010000 RT55 rough terrain crane
1 00755918800000000 Telescopic boom section 3 assy
2 00755918700000000 Telescopic boom section 2 assy
3 00755918600000000 Telescopic boom section 1 assy
4 00755918500000000 Basic boom assy
5 00755900100000001 Main boom assy
6 00755901800000000 Telescoping mechanism
7 00755918400100000 Telescoping cylinder
8 00755918400300000 Derricking cylinder
9 1991800130 Angle indicator
10 1130000414 Driver's cab
11 00755905000000001 Driver's cab pre-assembly
12 00755914710000000 Structural members installation
13 00755907600000000 Air conditioning
14 00755918200000000 Hoist rope
15 00755903500000000 Winch mechanism
16 00755910600000000 Couterweight
17 00755904400000000 Swing mechanism
18 00755915900000000 Swing locking device
19 00755918400700000 Vertical cylinder
20 00755908400500000 Horizontal cylinder
21 00755910800000000 Outrigger beam
22 00755901310000000 Outrigger
23 00755904500000000 Swing bearing assy
24 1140109716 Central revolving joint
25 00755913010000002 Hydraulic oil tank
27 1090400123 Auxiliary hook
28 1090400135 Main hook
29 00755900230000000 Jib
30 00755901200000000 Rooster sheave
31 204060043 Hydraulic oil
32 00755916310000000 Electric mounting
33 00755910000010020 Paint diagram
34 00755907510000001 Cab heater
35 00755914300000000 Securing device for hook
36 00755913400000000 Turntable and its attachements welded assy
37 00755910900000000 Electrics and hydraulic system assy
38 00755910910000000 Electrics and hydraulic system assy
39 00757919410000002 Toolbox and platform assy
40 00757915210000003 Wheel housing and its installation
41 00757913400000000 Steering system
42 00757913100000000 Wheel assy
43 00757912900000000 Front suspension
44 1030100770 Front steer and drive axle
45 00757911100000002 Fuel supply system
46 00757910800000000 Preheating starter
47 00757912200000000 Propeller shaft layout
48 00757911700000000 Transmission and engine installation
49 00757913300000000 Rear suspension
50 1030100769 Rear steer and drive axle
51 00757913910000000 PTO
52 00757911000000001 Engine attachments installation
53 00757915100000000 Engine housing and its installation
54 00757912801000000 Chassis frame and attachments welded assy
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
