Каталог запасных частей к технике: Zoomlion RT-55. ENGINE ATTACHMENTS INSTALLATION D00757911000000001Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
3
3
4
5
6
6
7
8
9
10
10
11
12
13
14
15
15
15
15
15
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
29
29
29
30
30
30
30
30
30
30
30
31
31
31
32
33
33
33
34
35
36
37
38
39
39
40
41
42
42
44
45
46
47
48
49
50
51
53
53
54
55
55
55
56
56
58
59
60
61
62
63
64
65
66
67

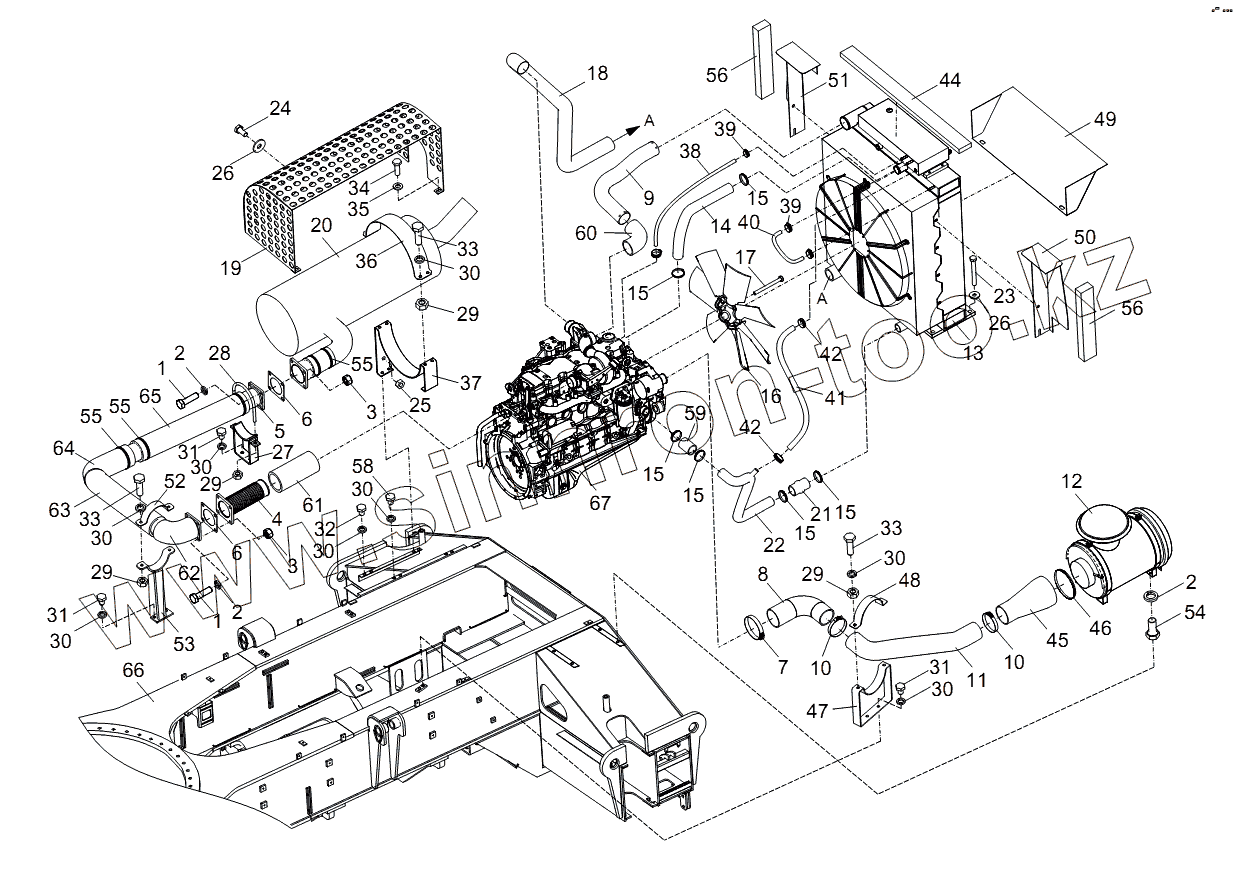

Позиция на иллюстрации Заводской номер детали Название детали
00757911000000001 00757911000000001 Engine attachments installation
1 1040000101 Bolt
2 1040300054 Washer
3 1040200096 Nut
4 00757911000200000 Exhaust pipe assy I
5 00757911000400001 Exhaust pipe assy II
6 00757911000001120 Gasket
7 1990200539 T type clamp
8 00757911000001030 Air intake pipe
9 00758110900001020 Air exhaust pipe B for intercooler
10 1990200540 T type clamp
11 00757911000001040 Air intake steel pipe
12 00758301001400000 Air filter assy
13 1010400136 Radiator assy
14 00757911000001050 Water outlet pipe
15 1990200787 Hoop
16 1000300287 Fan
17 1040002831 Bolt
18 00757911000001100 Intercooling pipe II
19 00757911001600002 Silencer housing
20 00757911001000001 Silencer assy
21 1140214518 Corrugated pipe
22 00757911000001111 Water inlet pipe
23 1040000497 Bolt
24 1040000116 Bolt
25 1040200113 Nut
26 1040300211 Washer
27 00757911001400001 Bracket
28 00757901010001020 Clamp
29 1040200764 Nut
30 1040300063 Washer
31 1040000924 Bolt
32 1040000267 Bolt
33 1040000288 Bolt
34 1040000090 Bolt
35 1040300061 Washer
36 00757901200001030 Silencer bracket I
37 00757911000001160 Silencer bracket II
38 00757911000001060 Ventilation pipe
39 1990200518 Worm clamp
40 00757911000001080 Ventilation pipe
41 00757911000001070 Water pipe
42 1990200774 Hoop
43 1009900454 Engine coolant
44 00757911000001180 Heat-insulating sponge
45 00757911000001190 Air intake hose
46 1990200650 Worm clamp
47 00757911000001210 Air intake pipe bracket
48 00757911000001220 Plate
49 00757911001800000 Deflecting plate
50 00757911002000000 Air baffle 1
51 00757911002200000 Air baffle 2
52 00757911000001200 Plate
53 00757911002400000 Exhaust pipe bracket
54 1040000069 Bolt
55 1990200937 Heavy clamp
56 00757911000001240 Heat-insulating sponge
57 1089900279 Engine oil
58 1040000098 Bolt
59 00757911000001130 Rubber hose
60 00758110900001030 Hose elbow
61 00757901230001010 Heat-insulating sleeve 1
62 00757901230001020 Heat-insulating sleeve 2
63 00757901230001030 Heat-insulating sleeve 3
64 00757901230001040 Heat-insulating sleeve 4
65 00757901230001050 Heat-insulating sleeve 5
66 Chassisframe Chassis frame assembly
67 Engine Engine
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
