Каталог запасных частей к технике: Zoomlion RT-55. DERRICKING CYLINDER INSTALLATION D00755904700800000Y

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано RT55 ROUGH TERRAIN CRANE D00755910000010000Y BASIC BOOM ASSY D00755918500000000Y SUPPORT ASSY D00755908500400000Y TELESCOPIC BOOM SECTION 1 ASSY D00755918600000000Y PULLEY ASSY D00755908600400000Y SUPPORT ASSY D00755908600800000Y TELESCOPIC BOOM SECTION 2 ASSY D00755918700000000Y PULLEY ASSY D00755908700400000Y SUPPORT ASSY D00755908700600000Y TELESCOPIC BOOM SECTION 3 ASSY D00755918800000000Y PULLEY ASSY D00755908800600000Y ROOSTER SHEAVE INSTALLATION D00755904701600000Y ROOSTER SHEAVE D00755901200000000Y PULLEY ASSY D00755908800600000Y MAIN BOOM ASSY D00755900100000001Y ROPE GUIDE ASSY D00755900100600000Y MAIN BOOM INSTALLATION D00755904700200000Y DERRICKING CYLINDER INSTALLATION D00755904700800000Y JIB D00755900230000000Y ROLLER D00755900201000001Y PULLEY ASSY D00755900202000000Y PULLEY ASSY D00755908800600000Y JIB INSTALLATION D00755904700400001Y TELESCOPING MECHANISM D00755901800000000Y GUIDE PULLEY D00755901800820000Y WIRE ROPE SUPPORT D00755901801400000Y DERRICKING CYLINDER D00755918400300000_6400Y TELESCOPING CYLINDER D00755918400100000_6400Y SECURING DEVICE FOR HOOK D00755914300000000Y MAIN HOOK D1090400135_101737Y NAME PLATE (CHINESE AND ENGLISH VERSIONS) D00755917010000000Y NAME PLATE (CHINESE AND ENGLISH VERSIONS) D00755917010000000Y NAME PLATE (ENGLISH VERSIONS) D00755917000000000Y NAME PLATE (ENGLISH VERSIONS) D00755917000000000Y TRANSMISSION AND ENGINE INSTALLATION D00757911700000000Y TRANSMISSION AND ENGINE PRE-ASSEMBLY D00757911700200000Y TRANSMISSION AND ENGINE PRE-ASSEMBLY D00757911700210000Y ENGINE ATTACHMENTS INSTALLATION D00757911000000001Y AIR FILTER D1000100162_30507Y FUEL SUPPLY SYSTEM D00757911100000002Y PREHEATING STARTER D00757910800000000Y PTO D00757913910000000Y STEERING SYSTEM D00757913400000000Y STEERING CYLINDER D00757918400900000_6400Y FRONT SUSPENSION D00757912900000000Y REAR SUSPENSION D00757913300000000Y SUSPENSION CYLINDER D00757918401100000_6400Y WHEEL ASSY D00757913100000000Y WHEEL HOUSING AND ITS INSTALLATION D00757915210000003Y PROPELLER SHAFT LAYOUT D00757912200000000Y TOOLBOX AND PLATFORM ASSY D00757919410000002Y OUTRIGGER AND ITS CYLINDER INSTALLATION D00755914700200000Y OUTRIGGER D00755901310000000Y VERTICAL CYLINDER D00755918400700000_6400Y HORIZONTAL CYLINDER D00755908400500000_6400Y ENGINE HOUSING AND ITS INSTALLATION D00757915100000000Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (HIRSCHMANN) D00755916140000001Y ELECTRICAL SYSTEM (HIRSCHMANN) (OPERATOR’S CAB ELECTRICS) D00755916240000001Y ELECTRICAL SYSTEM (HIRSCHMANN) (SLEWING TABLE ELECTRICS) D00755916240000001Y ELECTRICAL SYSTEM (HIRSCHMANN) (BOOM ELECTRICS) D00755916240000001Y ELECTRICAL SYSTEM (HIRSCHMANN) (CHASSIS FRAME ELECTRICS 1) D00755916240000001Y ELECTRICAL SYSTEM (HIRSCHMANN) (CHASSIS FRAME ELECTRICS 2) D00755916240000001Y ELECTRICAL SYSTEM (GREER) (OPERATOR’S CAB ELECTRICS) D00755916210000001Y ELECTRICAL SYSTEM (GREER) (SLEWING TABLE ELECTRICS) D00755916210000001Y ELECTRICAL SYSTEM (GREER) (BOOM ELECTRIC) D00755916210000001Y ELECTRICAL SYSTEM (GREER) (CHASSIS FRAME ELECTRICS 1) D00755916210000001Y ELECTRICAL SYSTEM (GREER) (CHASSIS FRAME ELECTRICS 2)D00755916210000001Y CENTRE REVOLVING JOINT INSTALLATION D00755914800200000Y CENTRE REVOLVING JOINT D1140109716_6500Y HYDRAULIC OIL TANK INSTALLATION D00755914810400001Y HYDRAULIC OIL TANK D00755913010000002Y RADIATOR D1010400111_100026Y OIL PUMP DRIVE DEVICE D00755913910000000Y CHASSIS FRAME VALVE INSTALLATION (OUTRIGGER CONTROL VALVE BLOCK INSTALLATION ) D00755914810200001Y CHASSIS FRAME VALVE INSTALLATION (FLUID FILLING VALVE INSTALLATION) D00755914810200001Y CHASSIS FRAME VALVE INSTALLATION(BRAKE VALVE ASSY. INSTALLTION) D00755914810200001Y CHASSIS FRAME VALVE INSTALLATION(ACCUMULATOR INSTALLATION) D00755914810200001Y CHASSIS FRAME VALVE INSTALLATION(HIGH-PRESSURE OIL FILTER INSTALLATION) D00755914810200001Y CHASSIS FRAME VALVE INSTALLATION(RELIEF CONTROL VALVE BLOCK INSTALLATION) D00755914810200001Y CHASSIS FRAME VALVE INSTALLATION(STEERING CONTROL VALVE BLOCK INSTALLATION) D00755914810200001Y CHASSIS FRAME VALVE INSTALLATION(LOCKING SOLENOID VALVE INSTALLATION) D00755914810200001Y CHASSIS FRAME VALVE INSTALLATION(SOLENOID VALVE INSTALLATION) D00755914810200001Y LOCKING SOLENOID VALVE D1010302064_101227Y STEERING CONTROL VALVE BLOCK D1010302514_101227Y RELIEF CONTROL VALVE BLOCK D1010302066_102440Y SOLENOID VALVE D1010302063_102440Y OUTRIGGER CONTROL VALVE BLOCK D1010302790_101227Y OUTRIGGER HYDRAULIC LOCK INSTALLATION D00755914821400000Y OIL PIPE PROTECTION COVER INSTALLATION D00755914801200000Y SLEWING TABLE VALVE INSTALLATION (PILOT-OPERATED CONTROL VALVE BLOCK INSTALLATION) D00755914810600002Y SLEWING TABLE VALVE INSTALLATION (PIPE FILTER INSTALLATION) D00755914810600002Y SLEWING TABLE VALVE INSTALLATION (WINCH VALVE INSTALLATION) D00755914810600002Y SLEWING TABLE VALVE INSTALLATION (SLEWING BRAKE VALVE INSTALLATION) D00755914810600002Y SLEWING TABLE VALVE INSTALLATION (PRIORITY VALVE AND PILOT OIL SOURCE BLOCK INSTALLATION) D00755914810600002Y SLEWING TABLE VALVE INSTALLATION (A/C CONTROL VALVE BLOCK INSTALLATION) D00755914810600002Y SLEWING TABLE VALVE INSTALLATION (PILOT-OPERATED VALVE INSTALLATION) D00755914810600002Y PILOT OIL SOURCE BLOCK D1019900552_101227Y SLEWING CUSHION VALVE D1010300495_6500Y D1010300495_6500Y SLEWING CUSHION VALVE (PILOT-OPERATED DIRECTIONAL CONTROL VALVE) D1010300495_6500Y SLEWING CUSHION VALVE (DAMPER VALVE) D1010300495_6500Y SLEWING CUSHION VALVE (RELIEF VALVE) D1010300495_6500Y SLEWING CUSHION VALVE (CUSHION VALVE) A/C CONTROL VALVE BLOCK D1130100646_101227Y PILOT-OPERATED VALVE D1010302511_101227Y SLEWING BRAKE VALVE D1010303988_6500Y PILOT-OPERATED CONTROL VALVE BLOCK D1010303710_101227Y TELESCOPING BALANCE VALVE INSTALLATION D00755914832000000Y DERRICKING BALANCE VALVE INSTALLATION D00755914821800000Y HOISTING BALANCE VALVE INSTALLATION D00755914821600000Y CAB VALVE INSTALLATION (PILOT-OPERATED CONTROL JOYSTICK) D00755914810800000Y CAB VALVE INSTALLATION (FOOT-OPERATED INSTALLATION) D00755914810800000Y SCHEMATIC DIAGRAM-HYDRAULIC SYSTEM D00755911510000002Y SLEWING MECHANISM D00755904400000000Y SWING REDUCER D1030200682_100013Y SLEWING BEARING ASSY D00755904500000000Y SWING LOCKING DEVICE D00755915900000000Y SWING LOCKOUT CYLINDER D00755708401000000_6400Y WINCH MECHANISM D00755903500000000Y WINCH REDUCER D1030200945_100014Y DRIVER'S CAB PRE-ASSEMBLY D00755905000000001Y DRIVER'S CAB (WINDSHIELD) D1130000414_100037Y DRIVER'S CAB (INSTRUMENT CONSOLE ARRANGEMENT) D1130000414_100037Y DRIVER'S CAB (Front WINDSHILED WIPER SYSTEM) D1130000414_100037Y DRIVER'S CAB (FOOT PEDAL) D1130000414_100037Y DRIVER'S CAB (A/C) D1130000414_100037Y DRIVER'S CAB (SEAT) D1130000414_100037Y DRIVER'S CAB (DRIVER'S CAB ASSY) D1130000414_100037Y DRIVER'S CAB (GUARD BOARD AND INTERIOR DECORATIVE PLATE) D1130000414_100037Y DRIVER'S CAB (ROOF WIPER SYSTEM AND FAN) D1130000414_100037Y DRIVER'S CAB (ROOF WINDOW) D1130000414_100037Y DRIVER'S CAB (DOOR ASSY) D1130000414_100037Y AIR CONDITIONING D00631267600000000Y SPECIAL A/C D1130100319_100026Y CAB HEATER D00755907510000001Y HEATER D1200300013_102208Y COUNTERWEIGHT INSTALLATION D00755904700600000Y

1

2

3

4

5

6

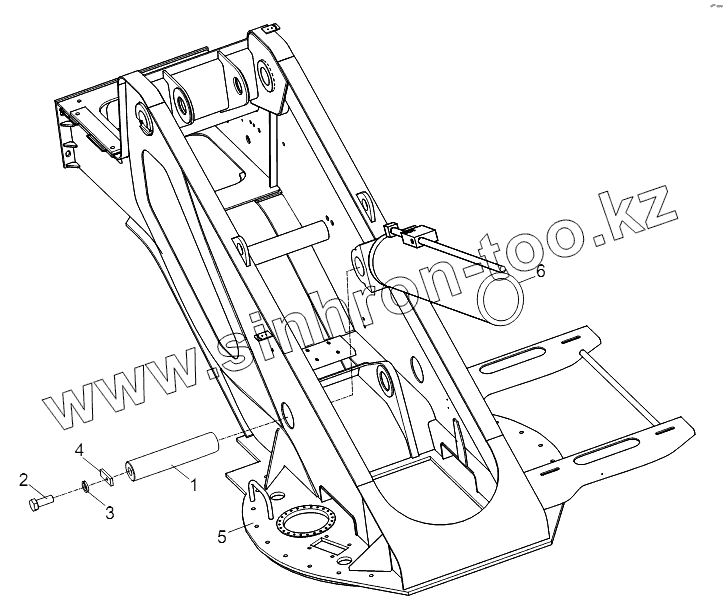

Позиция на иллюстрации	Заводской номер детали		Название детали
00755904700800000	00755904700800000		Derricking cylinder installation
1	00755904700801010		Shaft
2	1040000082		Bolt
3	1040300065		Washer
4	00755904700801020		Chuck plate
5	Slewingtable		Slewing table and its attachments assy weld ed
6	Derrickingcylinder		Derricking cylinder

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
